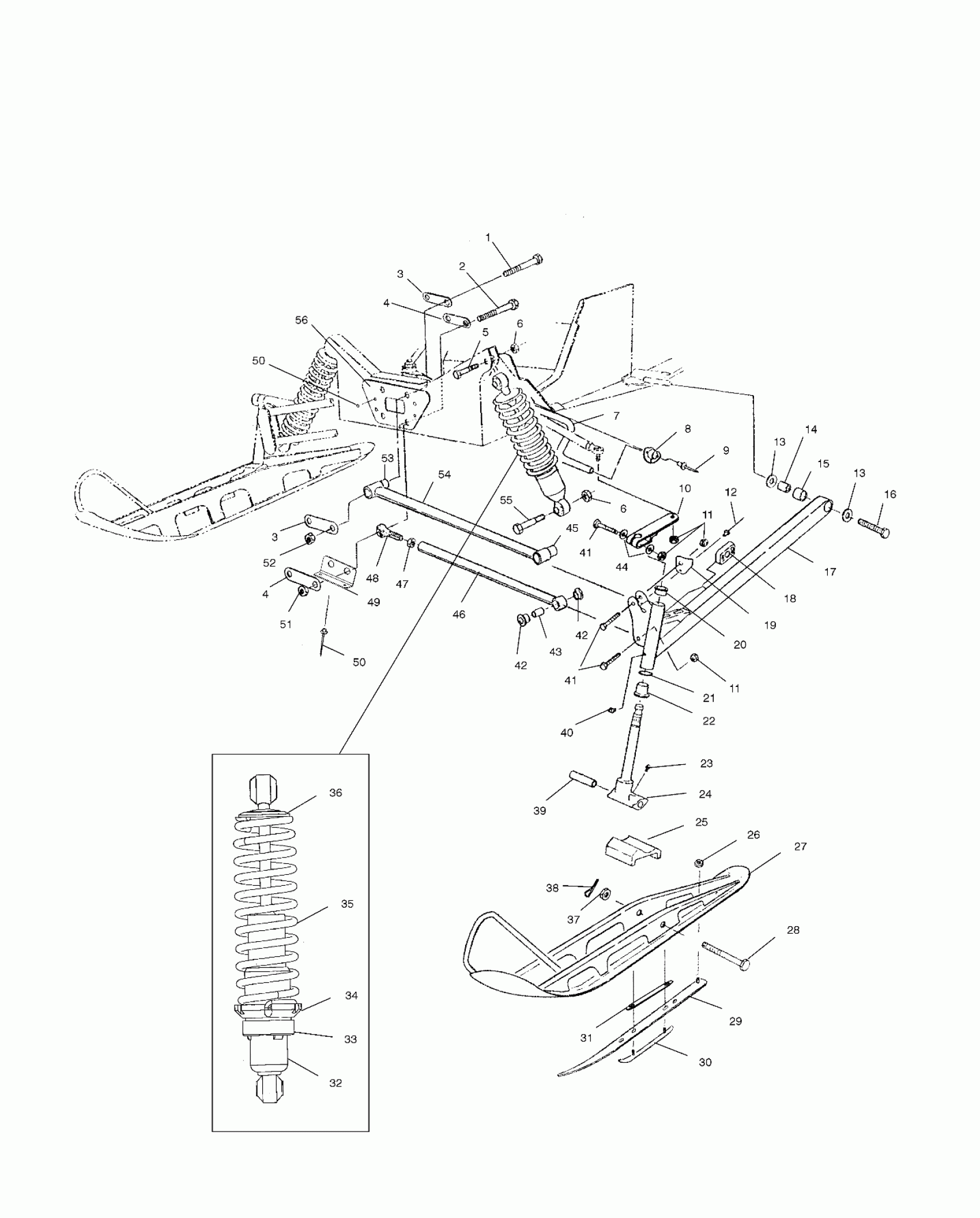

Polaris TRAIL TOURING - S02ST5BS FRONT SUSPENSION and SKI - S02ST5BS (4968226822B001) Diagram

#

Description
Price

1

BOLT(10)

7512582

$8.79

2

BOLT(10)

7512684

Unavailable

3

STRAP,SPACER TOP

5211344

$7.27

3

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER BOTTOM

5211345

$12.99

4

STRAP,SPACER BOTTOM

5211345

$12.99

5

BOLT(10)

7515415

$1.49

6

NUT-LOCK(10)

7542439

$1.49

6

NUT-LOCK(10)

7542439

$1.49

7

BAR,SWAY,9/16(X-12)BLK

5224749-067

Unavailable

8

BUSHING,SWAY BAR

5432412

$15.99

9

RIVET(50)

7621433

$1.49

10

ARM-STEERING,SLV

5241560-244

Unavailable

11

NUT LOCK(10)

7542403

$3.99

11

NUT LOCK(10)

7542403

$3.99

12

RIVET-3/16-.214-.420

7661130

$1.49

13

WASHER(10)

7555721

$1.49

13

WASHER(10)

7555721

$1.49

14

TUBE, BUSHING

5010310

$9.70

15

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

16

BOLT(10)

7512557

$7.60

17

ASM-TRAILING ARM,LH,SILVER (Incl. 14,15)

1821081

$344.99

17

ASM-TRAILING ARM,RH,SILVER (Incl. 14,15)

1821082

Unavailable

18

SLIDE,SWAYBAR,9/16

5432674

Unavailable

19

STOP-STEERING,LH,SLV

5241569-244

$3.81

19

STOP-STEERING,RH,SLV

5241570-244

$3.51

20

BUSHING-FLANGE

3573909

$2.39

21

WASHER SPECIAL(10)

7556509

$1.59

22

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

23

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

24

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

25

Stop, Rubber

5411083

$12.94

26

NUT-5/16-18 NYLOK-Y

7542324

$1.49

27

SKI WELD

1820430-067

Unavailable

28

BOLT(10)

7515462

$8.79

29

Plate, Skag

1011829-067

$54.99

30

SKAG, BLK.

1820318-067

$49.99

31

SHIM-SKAG PLATE,BLK

5245145-067

Unavailable

32

SHOCK,GAS,IFS

7041539

Unavailable

33

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

34

RING,SPRING PRELOAD ADJ.

5431734

$52.60

35

SPRING-COMP,.312X11.88,80#,SLV

7041683-244

Unavailable

36

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

37

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

38

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

39

BUSHING,PIVOT,(10)

5010158

$19.99

40

ZERK,FITTING,THREADED(10)

7080433

$1.49

41

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

41

SCR-3/8-24X2 HX/CP GR5-Y-SP(10)

7517583

$4.35

42

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

42

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

43

BUSHING-RADIUS ROD,(10)

5010127

$7.99

44

WSHR-.813X.406X.105-Y

7555832

$2.39

45

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

46

WELD-RADIUS ROD,LOWER,SLV

1822383-244

Unavailable

47

NUT-JAM(10)

7542711

$2.39

48

ROD END-RADIUS,RH,LOWER

7061052

$48.56

49

BRKT,RAD.ROD,BTM.

5242578

$44.99

50

RIVET-3/16-.090-.290

7661637

$1.49

50

RIVET-3/16-.090-.290

7661637

$1.49

51

NUT FLEX,(10)

7542703

Unavailable

52

NUT, LOCK,(10)

7542503

$10.39

53

BUSHING,PIVOT,7/16

5411095

$15.99

54

ASM-RADIUS ROD,UPPER,FIXED,SLV (Incl. 45,53)

1821084

Unavailable

55

BOLT Substituted by 7515491

7515433

$1.59

56

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable
