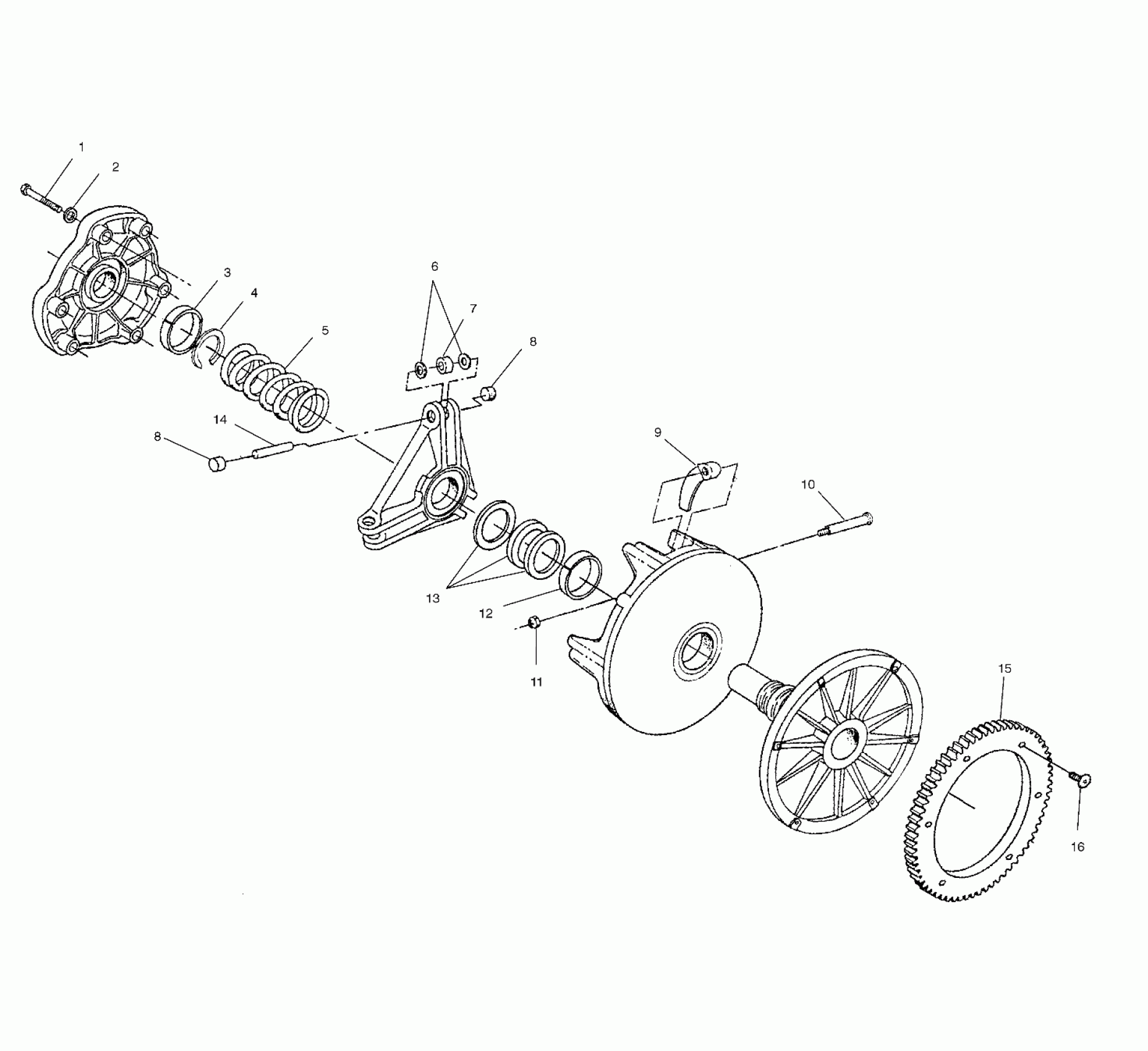

Polaris TRAIL TOURING - S02ST5BS DRIVE CLUTCH - S02ST5BS (4968226822B012) Diagram

#

Description
Price

-

DRV CLUTCH,ASM,BASIC 109 (Incl. 1-4,6-8,10-14)

1321881

Unavailable

-

DESC NOT_AVAILABLE (Incl. 6,7,8,14)

2201314

Unavailable

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-CLUTCH,DARK BLUE/WHT

7041781

$56.65

6

WASHER,MULTILUBE

5430945

$1.59

7

ASM-ROLLER AND BUSHING

1321622

$32.37

8

BUTTON, GUIDE,(10)

5430445

$6.39

8

BUTTON, GUIDE,(10)

5430445

$6.39

9

WT/BUSH.ASM,10-62(3) (10-62)

1321586

$40.46

10

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

11

NUT FLEX LOC(10)

7541906

$3.19

12

SLEEVE, BEARING

3576502

$23.99

13

SPACER(10) (.050mm)

5210754

Unavailable

13

SPACER(10) (.025mm)

5242981

Unavailable

13

SPACER(10) (.020mm)

5210752

Unavailable

13

SPACER(10) (.032mm)

5210753

Unavailable

14

PIN-ROLLER

5020422

$2.39

15

GEAR-RING

5131062

Unavailable

16

BOLT,RING GEAR(10)

7515351

$3.99
