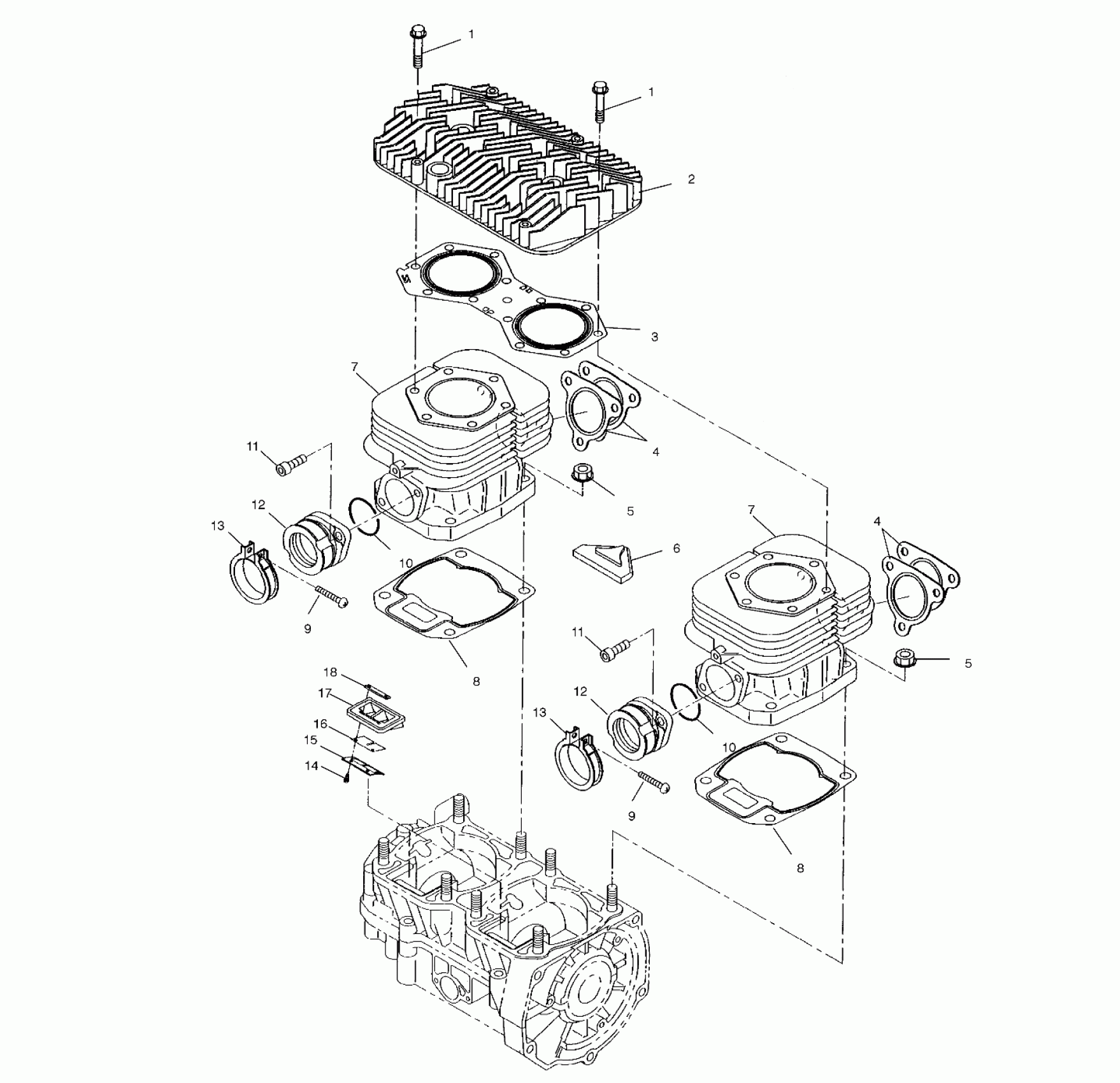

Polaris TRAIL TOURING - S02ST5BS CYLINDER - S02ST5BS (4968226822C006) Diagram

#

Description
Price

1

BOLT, FLANGE

3084271

Unavailable

1

BOLT, FLANGE

3084271

Unavailable

2

HEAD,CYLINDER

3085703

Unavailable

3

GASKET,HEAD

3085704

Unavailable

4

GASKET,EXHAUST

3085714

$29.99

4

GASKET,EXHAUST

3085714

$29.99

5

NUT-FLANGE(10)

3082911

$1.99

5

NUT-FLANGE(10)

3082911

$1.99

6

COVER,CYL.BAFFLE

3085692

$24.27

7

Cylinder Unit

3085936

$603.17

7

Cylinder Unit

3085936

$603.17

8

GASKET,CYLINDER

3085666

Unavailable

8

GASKET,CYLINDER

3085666

Unavailable

9

SCREW,(10)

3081497

$2.39

9

SCREW,(10)

3081497

$2.39

10

O-RING

3085619

$20.22

10

O-RING

3085619

$20.22

11

Bolt, Allen

3081330

$3.99

11

Bolt, Allen

3081330

$3.99

12

ADAPTER (Incl. 10)

3085670

Unavailable

12

ADAPTER (Incl. 10)

3085670

Unavailable

13

BAND ASM. (Incl. 9)

3083166

$19.84

13

BAND ASM. (Incl. 9)

3083166

$19.84

14

SCREW & WASHER ASM.

3085717

$4.75

15

STOPPER

3086387

$12.94

16

VALVE, REED

3085715

$8.89

17

VALVE,REED

3086386

$60.70

18

PLATE Substituted by 3085718

3086388

Unavailable
