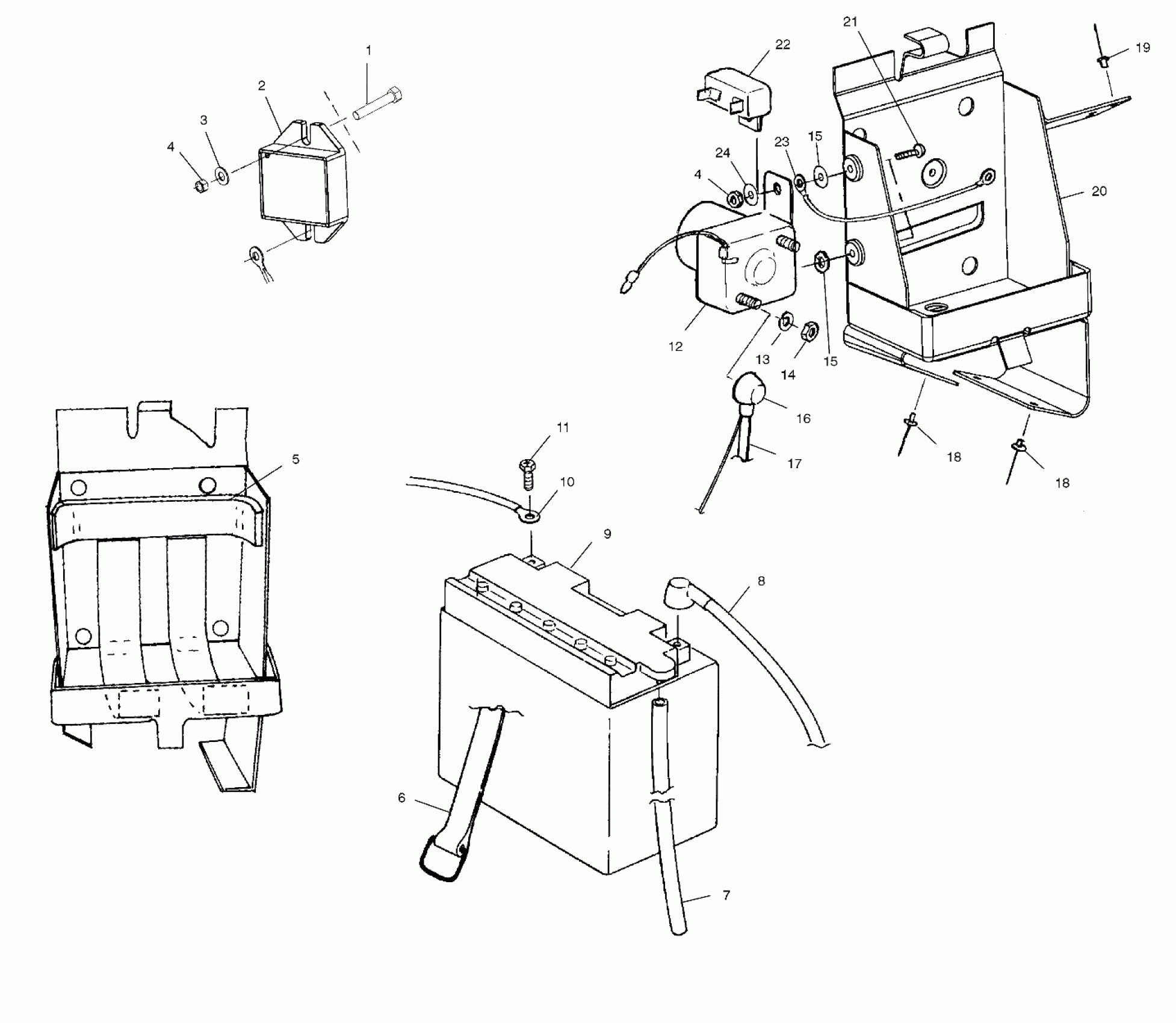

Polaris TRAIL TOURING - S02ST5BS BATTERY BOX - S02ST5BS (4968226822C004) Diagram

#

Description
Price

1

SCREW, HX/SEMS

7517263

Unavailable

2

REGULATOR,AC/DC 14.3V

4010355

$116.17

3

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

4

NUT(10)

7541925

$1.49

4

NUT(10)

7541925

$1.49

5

PAD-BATTERY

5810290

$7.27

6

STRAP ASM,BATT.HOLD.

2450020

$29.03

7

TUBE,BATT.VENT,400 MM

5433681

Unavailable

8

CABLE ASM,SOLENOID

2460393

$36.41

9

Battery

4140006

$99.99

10

CABLE,11",BATT.,BLK.

4010114

Unavailable

11

BOLT,BATT,KIT(SHORT)

2200361

$3.99

12

SWITCH, MAGNETICS (See Starting Motor Pg. C13, Ref. 15)

-------

Unavailable

13

WASHER, SPRING (See Starting Motor Pg. C13, Ref. 16)

-------

Unavailable

14

NUT (See Starting Motor Pg. C13, Ref. 14)

-------

Unavailable

15

WASHER(10)

7571602

$4.79

15

WASHER(10)

7571602

$4.79

16

INSULATOR-CABLE

5410346

$6.39

17

CABLE-RED,25"

4010190

Unavailable

18

RIVET, BLIND(50)

7621467

$1.49

18

RIVET, BLIND(50)

7621467

$1.49

19

POP RIVET(50)

7621418

$1.49

20

BATTERY BOX,BLK

1012799-067

$82.39

21

SCREW(10)

7512027

$1.49

22

CIRCUIT BREAKER

2434008

Unavailable

23

WIRE,JUMPER,SOL/BATT,8.5"

4010108

Unavailable

24

WASHER, FLAT(10)

7558201

$5.79
