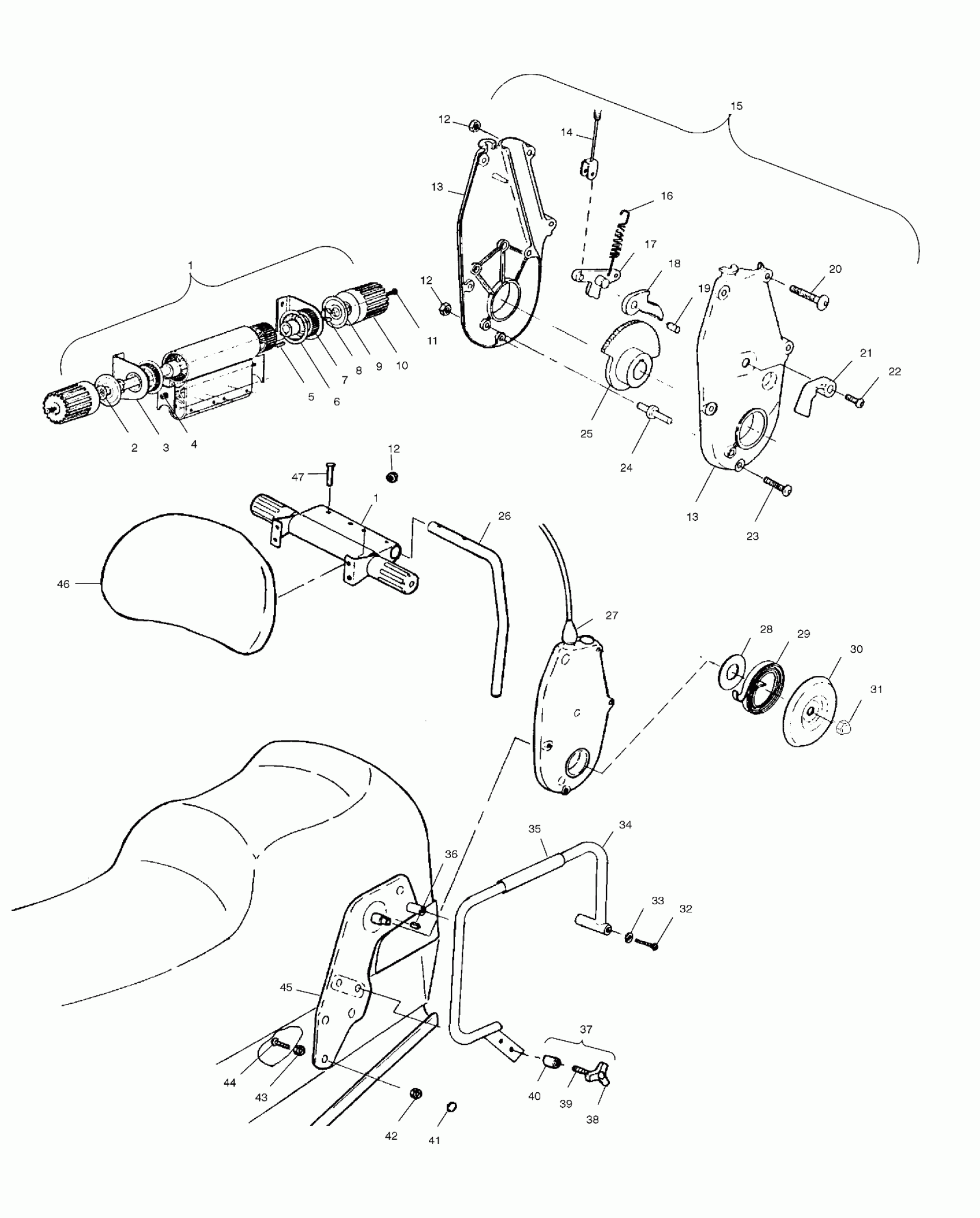

Polaris TRAIL TOURING - S02ST5BS BACKREST - S02ST5BS (4968226822A005) Diagram

#

Description
Price

1

ADJ.ASM,B'REST CUSHION (Incl. 2-11)

1012534

Unavailable

1

ADJ.ASM,B'REST CUSHION (Incl. 2-11)

1012534

Unavailable

2

WASHER,WAVE(10)

7571635

$4.23

3

BRKT,MOUNTING

1012535

$37.11

4

SCREW(10)

7511866

$4.79

5

KEY,SQUARE(10)

7721118

$3.59

6

Seal, Backrest

5432113

Unavailable

7

Rotor

5131207

$16.47

8

E RING(10)

7710901

$7.19

9

WASHER,(10)

7571634

$2.39

10

KNOB, ADJ.

5432112

Unavailable

11

SCREW,(10)

7512087

$1.83

12

NUT-LOCK(10)

7542122

$1.49

12

NUT-LOCK(10)

7542122

$1.49

12

NUT-LOCK(10)

7542122

$1.49

13

HSG,RH (ADJ.B'REST)

5131212

$62.39

13

HSG,LH,(ADJ. B'REST)

5131211

$62.39

13

HSG,RH (ADJ.B'REST)

5131212

$62.39

13

HSG,LH,(ADJ. B'REST)

5131211

$62.39

14

CABLE ASM,ACTUATOR

7080582

$87.19

15

ASM-BACKREST,ADJUSTER (Incl. 12-25)

1013409

$304.75

16

SPRING,LOCKING

7041411

$25.59

17

ASM-LOCKING,PAWL MASTER,LH,PM

1013410

Unavailable

17

ASM-LOCKING,PAWL,RH,PM

1013411

$49.59

18

SECTOR-ENGAGEMENT PM

5245042

Unavailable

19

PIN,PIVOT

5020806

Unavailable

20

BOLT ,(10)

7515171

Unavailable

21

LEVER-LOCKING,BLK

5631126-067

Unavailable

22

SCREW,(10)

7516915

$1.06

23

Bolt

7515170

$2.39

24

STUD-LIMITER

5020822

$66.39

25

GEAR-STATIONARY,PM

5245039

$81.99

26

TUBE,B'REST MT,BLK

5224761-067

$29.75

27

COVER,CABLE,BLK

5432259

Unavailable

28

WASHER,THRUST(10)

7555926

$1.99

29

SPRING,TORSION,PRELOAD

7041412

Unavailable

30

COVER,SPRING,1/2" ID,BLK

5241935-067

$4.95

31

NUT,(10)

7547015

$6.23

32

SCREW(10)

7512307

$3.99

33

WASHER(10)

7555734

$1.49

34

HANDLE,GRAB,LH,BLACK

1012657-067

$58.39

34

HANDLE,GRAB,RH,BLACK

1012658-067

$53.59

35

GRIP ASM,PASSENGER

2460660

Unavailable

36

KEY,HI PRO

7721125

$4.23

37

KNOB,GRAB HANDLE (Incl. 38-40)

1012385

Unavailable

38

Knob, Backrest

5630386-067

$20.22

39

BOLT(10) Substituted by 7515339

7515328

Unavailable

40

SPACER,ADJ.KNOB

5432123

$5.83

41

CAPLUG, 3/4"(10)

7080592

Unavailable

42

NUT-5/16-18 NYLOK-Y

7542324

$1.49

43

PALNUT,(10)

7547030

$4.79

44

BOLT(10)

7512377

$4.79

45

MAINFRAME,LH,BLK

1012539-067

Unavailable

45

MAINFRAME,RH,BLK

1012540-067

Unavailable

46

ASM-BACKREST CUSHION,TOUR

2682830

$255.22

46

ASM-BACKREST COVER,TOUR

2682831

$148.79

47

RIVET-3/16-.090-.290

7661637

$1.49
