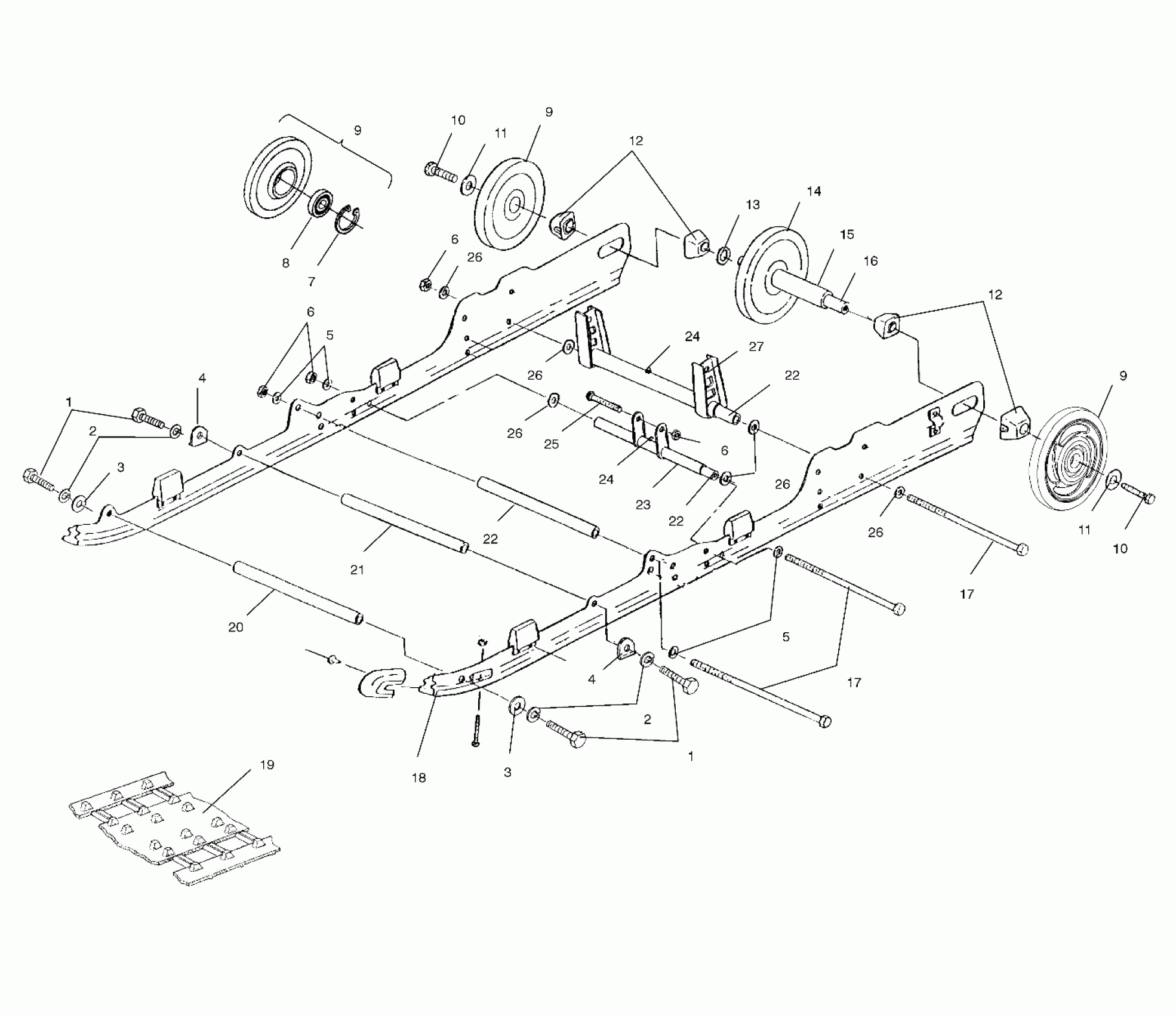

Polaris TRAIL TOURING - S00ST5BS SUSPENSION - S00ST5BS (4953965396B011) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555923

$2.39

3

WASHER(10)

7555923

$2.39

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

WASHER(10)

7555806

$1.49

5

WASHER(10)

7555806

$1.49

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

6

NUT LOCK(10)

7542411

$3.19

7

RING-RETAINING

7710444

$8.79

8

Bearing

3514012

Unavailable

9

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

9

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

9

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

10

BOLT(10)

7515526

$1.19

10

BOLT(10)

7515526

$1.19

11

WASHER(10) Substituted by 7556130

7571629

Unavailable

11

WASHER(10) Substituted by 7556130

7571629

Unavailable

12

SPACER-IDLER

5432535

$11.99

12

SPACER-IDLER

5432535

$11.99

13

BUSHING(10)

7555918

$1.59

14

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

15

SPACER-IDLER, LONG

5333285

$11.99

16

SHAFT,IDLER

5020744

$59.99

17

Screw

7517353

Unavailable

17

Screw

7517353

Unavailable

18

SLIDER,WHI.,(2)

5521452

$40.46

19

Clip, Slide

5241473

Unavailable

19

Clip, Guide

5241474

Unavailable

19

TRACK,133X.82,MOD LTNG,HS Substituted by 5411687

5411176

Unavailable

20

SHAFT,PIVOT ARM

5020723

$29.99

21

SHAFT,PIVOT ARM

5020724

$29.99

22

SHAFT

5333404

$24.27

22

SHAFT

5333404

$24.27

22

SHAFT

5333404

$24.27

23

ARM,SHOCK PIVOT

1541001-067

$43.65

24

ZERK,FITTING,THREADED(10)

7080433

$1.49

24

ZERK,FITTING,THREADED(10)

7080433

$1.49

25

BOLT(10)

7515472

$2.39

26

WASHER(10)

7555893

$1.49

26

WASHER(10)

7555893

$1.49

26

WASHER(10)

7555893

$1.49

26

WASHER(10)

7555893

$1.49

26

WASHER(10)

7555893

$1.49

27

ARM,R.PIVOT

1540981-067

Unavailable
