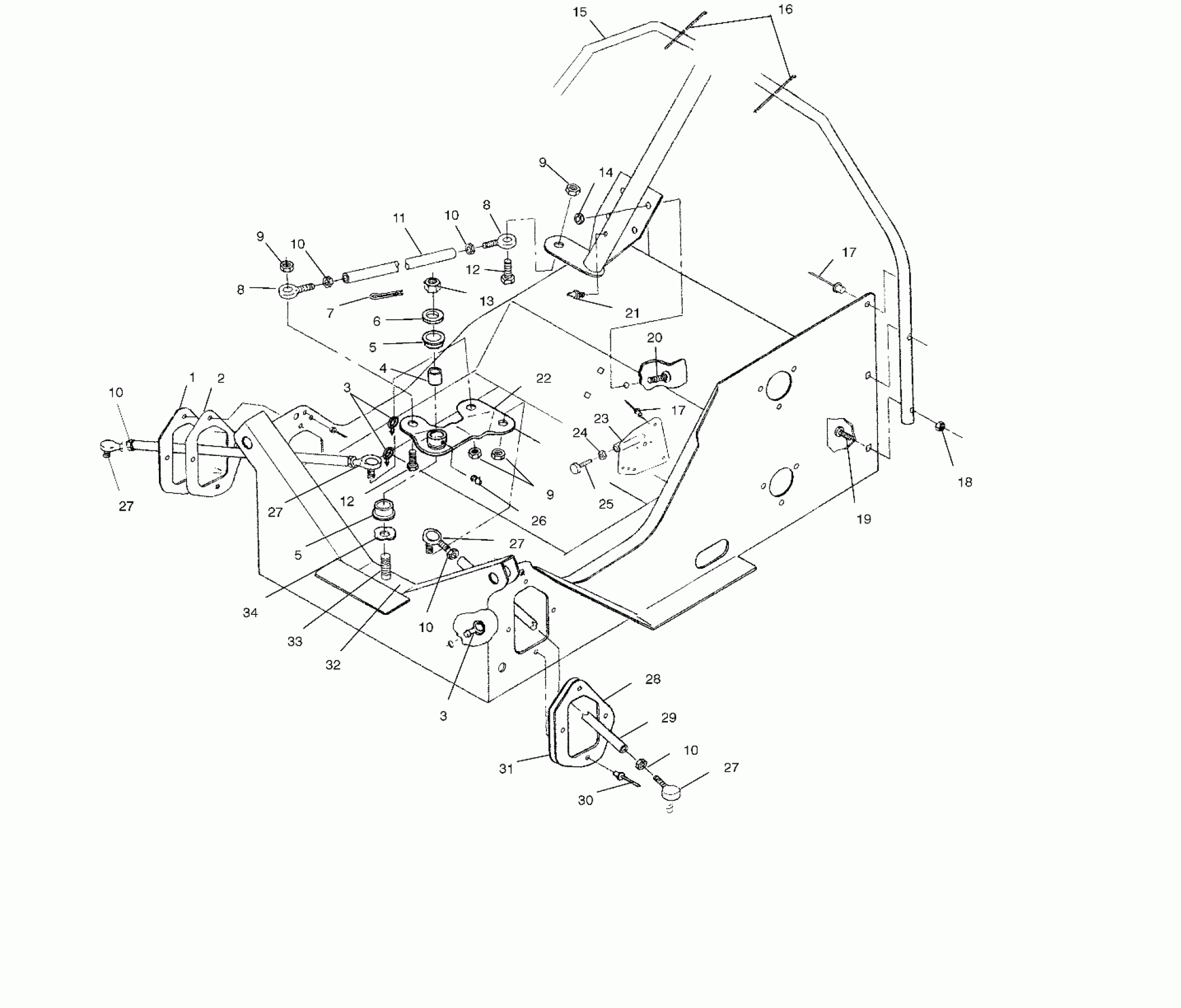

Polaris TRAIL TOURING - S00ST5BS STEERING - S00ST5BS (4953965396B006) Diagram

#

Description
Price

1

PLATE,RH,BOOTSEAL,BLK.

5211453-067

$15.67

2

BOOT,TIEROD,RH,XTRA

5411123

$20.22

3

CLIP, PLASTIC(10)

4020139

$4.79

3

CLIP, PLASTIC(10)

4020139

$4.79

4

BUSHING

5010463

$9.70

5

BUSHING

3563907

$3.99

5

BUSHING

3563907

$3.99

6

WASHER(10)

7555721

$1.49

7

PIN COTTER(10)

7661203

$1.49

8

ROD END, RH.

7060165

$48.56

8

ROD END, LH.

7060164

$48.56

8

ROD END, RH.

7060165

$48.56

8

ROD END, LH.

7060164

$48.56

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

9

NUT LOCK(10)

7542403

$3.99

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

10

NUT HEX(10)

7542401

$2.39

10

NUT

7542424

$1.49

11

ROD-DRAG LINK

5332712

Unavailable

12

BOLT(10)

7512404

$3.99

12

BOLT(10)

7512404

$3.99

13

NUT FLEX,(10)

7542703

Unavailable

14

NUT FLEX-LOC(10)

7542303

$6.39

15

STEERING HOOP,BLK

1013153-067

$39.67

16

CABLE TIE-RELEASABLE,5 1/2"(10)

7080804

$3.22

17

RIVET-3/16-.090-.290

7661637

$1.49

17

RIVET-3/16-.090-.290

7661637

$1.49

18

NUT, LOCK(10)

7542103

$5.59

19

BOLT-CARRIAGE(10)

7512275

$3.99

20

BOLT,(10)

7517428

$2.39

21

FITTING,LUB/VEN(10)

7080561

$4.79

22

STRG.ASM,CTR. (Incl. 14,26)

1822286

$29.60

23

TORQUE STOP

1012855

$49.59

24

NUT(10)

7542404

$1.59

25

STOP,TORQUE,COURSE Substituted by 3021081

3110078

$36.41

26

ZERK,FITTING,THREADED(10)

7080433

$1.49

27

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

27

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

27

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

27

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

27

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

27

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

27

ROD-END,RH,3/8,HI-ANGLE

7060174

$48.56

27

ROD END,LH,3/8 HI-ANGLE PRO

7061005

Unavailable

28

PLATE,BOOTSEAT,BLK.

5211454-067

Unavailable

29

ROD,TIE,BLK.

5020859-067

Unavailable

30

POP RIVET(50)

7621323

$1.49

31

BOOT,TIEROD,LH,XTRA

5411122

Unavailable

32

BLOCK,STRG,(CAST)

5630563

$32.37

33

BOLT(10)

7512682

Unavailable

34

WASHER,WAVE(10)

7555735

$3.99
