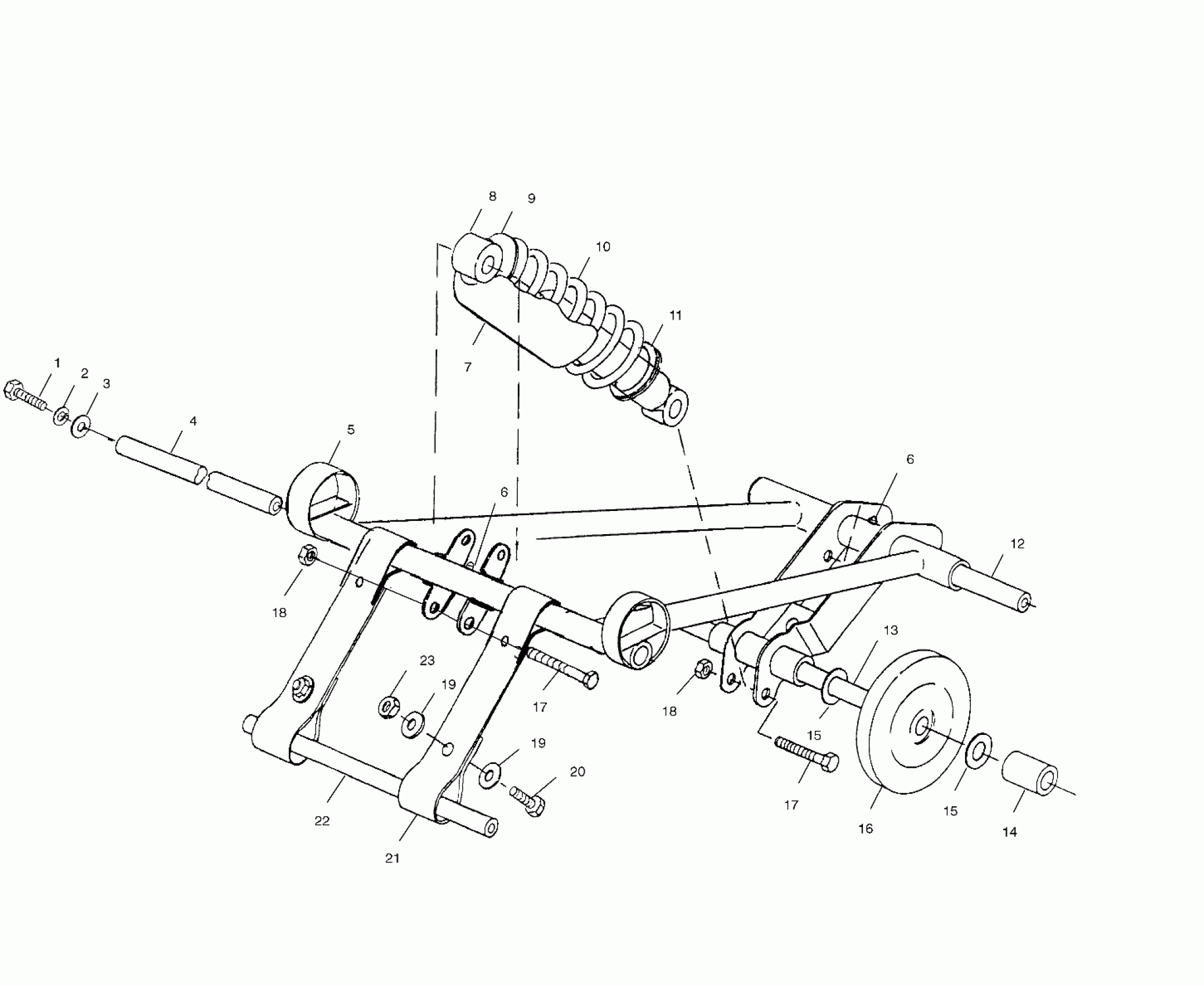

Polaris TRAIL TOURING - S00ST5BS FRONT TORQUE ARM - S00ST5BS (4953965396B013) Diagram

#

Description
Price

1

Bolt

7517435

$14.99

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555893

$1.49

4

Shaft

5131450

Unavailable

5

ARM,FR.TORQUE,X-10,BLK

1541204-067

$175.79

6

ZERK,FITTING,THREADED(10)

7080433

$1.49

6

ZERK,FITTING,THREADED(10)

7080433

$1.49

7

SHIELD-SPRING

5430671

$24.27

8

SHOCK,FRT.TRACK

7041743

Unavailable

9

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

10

SPRING,BLACK,COMP.

7041253-067

$95.22

11

RETAINER,SPRING Substituted by 5245067

5241276-067

Unavailable

12

Shaft (See Footnote) (See Suspension Pg. B11, Ref. 22)

-------

Unavailable

13

Shaft (See Footnote) (See Suspension Pg. B11, Ref. 21)

-------

Unavailable

14

SPACER, OUTER

5332784

Unavailable

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

16

Asm., Bogie Wheel (See Footnote) (See Rail Mounting - Suspension Pg. B12, Ref.1)

-------

Unavailable

17

BOLT Substituted by 7515491

7515433

$1.59

17

BOLT Substituted by 7515491

7515433

$1.59

18

NUT LOCK(10)

7542411

$3.19

18

NUT LOCK(10)

7542411

$3.19

19

WASHER(10)

7555716

$1.59

19

WASHER(10)

7555716

$1.59

20

SCREW ,(10)

7517313

$4.79

21

STRAP,LIMITER,TRACK

5410992

Unavailable

22

Shaft, Pivot Arm (See Footnote) (See Suspension Pg, B11, Ref. 20)

-------

Unavailable

23

NUT,NYLOC,(10)

7542344

$3.99
