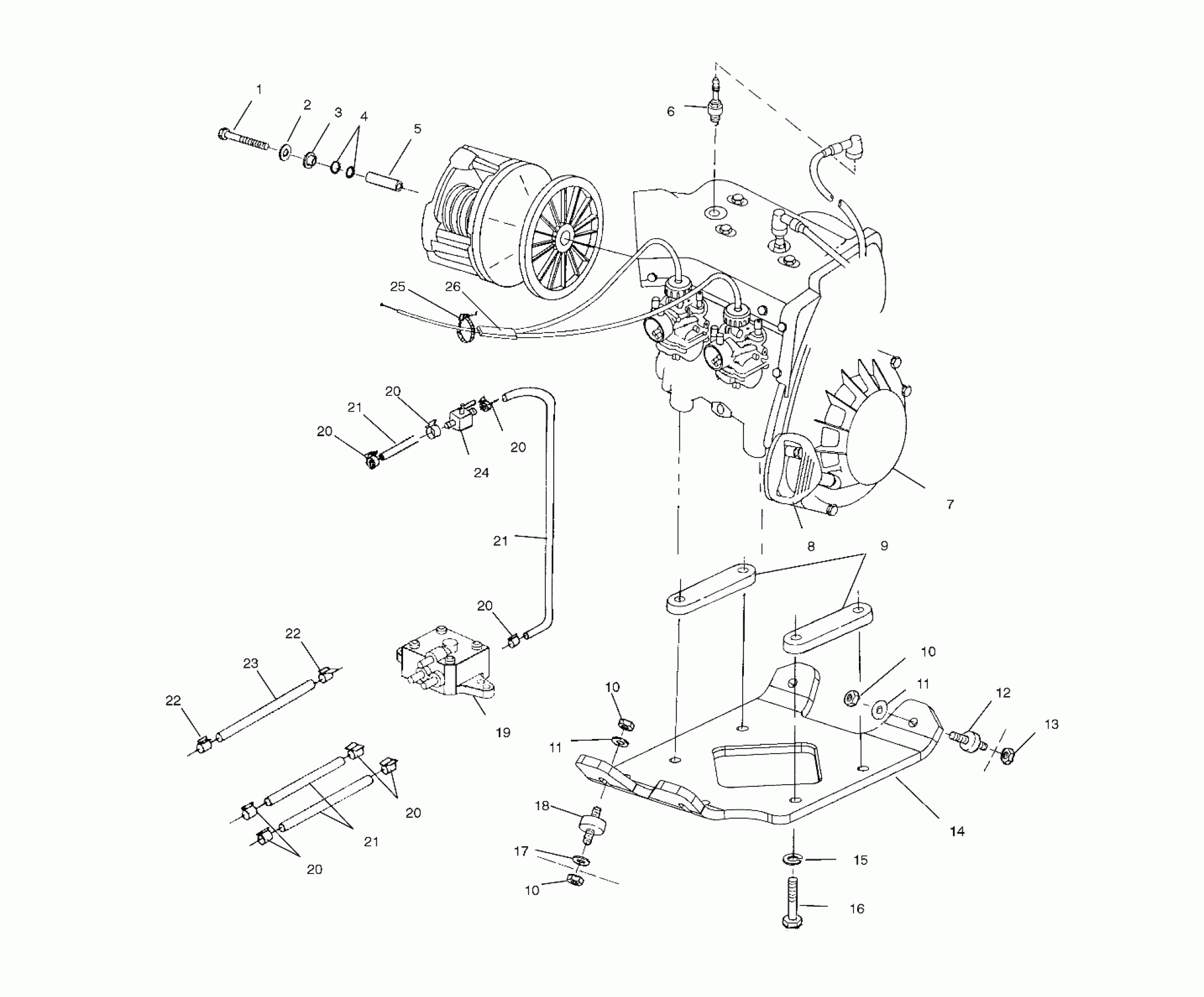

Polaris TRAIL TOURING - S00ST5BS ENGINE MOUNTING - S00ST5BS (4953965396C006) Diagram

#

Description
Price

1

SCREW Substituted by 7517776

7517529

Unavailable

2

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

3

WASHER,CLUTCH RETAIN.

5010287

$12.99

4

O RING,(10)

5410507

$1.49

5

SPACER,CLUTCH BOLT

5020513

$44.99

6

SPARK PLUG-NGK BR9ES

3070163

$3.99

7

ENG.(S.B.)EC55PM-010 (EC55PM012) (See Footnote) NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authoriz

3085618

Unavailable

8

HANDLE,RECOIL Substituted by 5431499-070

5431499

Unavailable

9

SPACER-ENGINE,.50

5243195

$61.99

10

NUT,FLEXLOCK,(10)

7547008

$6.39

10

NUT,FLEXLOCK,(10)

7547008

$6.39

10

NUT,FLEXLOCK,(10)

7547008

$6.39

11

WASHER(10)

7555893

$1.49

11

WASHER(10)

7555893

$1.49

12

MOUNT-ENGINE,3/8-16,3-TAB

3021099

$28.32

13

NUT FLEX LOC,(10)

7542402

$6.39

14

PLATE-MOTOR MOUNT

5132001

$119.99

15

WASHER LOCK(10)

7553101

$3.99

16

BOLT,(10)

7517442

$6.39

17

WASHER,FLAT(10)

7555915

$3.19

18

MOUNT,ENGINE

3110062

Unavailable

19

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C12, Ref. 2)

-------

Unavailable

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

21

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

21

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

24

VALVE,FUEL SHUT-OFF,FAN

7052219

Unavailable

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

26

CABLE-THROTTLE

7080776

Unavailable
