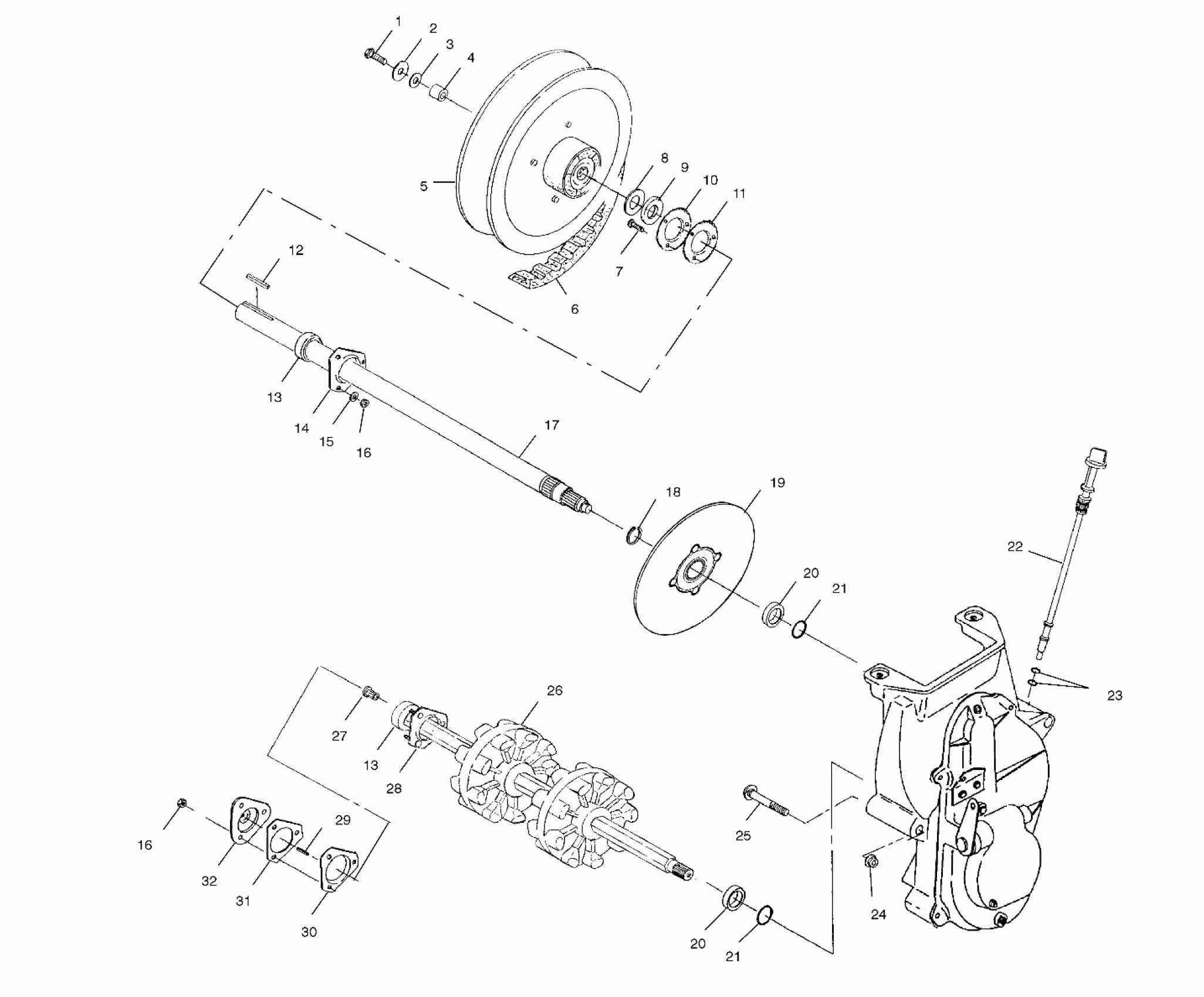

Polaris TRAIL TOURING - S00ST5BS DRIVE TRAIN - S00ST5BS (4953965396B010) Diagram

#

Description
Price

1

BOLT(10)

7515369

$4.79

2

WASHER FLAT(10)

7555701

$3.99

3

WASHER(10)

7555734

Unavailable

4

Spacer

5020913

Unavailable

5

Asm., Driven Clutch, 36 Degree, Adjustable (See Footnote) (See Driven Clutch Pg. C2, Ref. 16)

-------

Unavailable

6

BELT,DRIVE,28 DEG.(5)

3211070

$114.99

7

BOLT(10)

7512377

$4.79

8

WASHER SPECIAL(10)

7556509

Unavailable

9

Spacer

5020837

$24.99

10

FITTING,LUB/VEN(10)

7080561

$4.79

10

FLANGE RD,RELUBE W/ZERK

5241359

$32.37

11

GASKET,JACKSHAFT,BLK.

5811095

$2.41

12

KEY(10)

7721116

$12.94

13

BEARING

3514525

$31.99

13

BEARING

3514525

$31.99

14

FLANGETTE

5222751

$16.44

15

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

JACKSHAFT ASM,15 SPL (Incl. 13,18)

1332207

Unavailable

18

RING, RETAINING(10)

7710422

$3.99

19

BRAKE DISC,SNOW,6385 CR,ASM.

1910403

Unavailable

20

SLEEVE, SEAL

5020588

$23.99

20

SLEEVE, SEAL

5020588

$23.99

21

O RING,(10)

5410613

$1.99

21

O RING,(10)

5410613

$1.99

22

DIPSTICK Substituted by 1332143

5431419

Unavailable

23

O-RING

5410675

$1.60

24

NUT(10)

7542423

$3.99

25

BOLT(10)

7515428

$4.79

26

DRIVESHAFT ASM,2 DR,W/BRG,XHS (Incl. 27-28,30)

1590283

Unavailable

27

BUSHING METAL SPEEDO

3280019

$11.99

28

ASM.-FLANGETTE,W/SCREWS

1012945

$114.99

29

SQ. KEY SPEEDOMETER,(10)

3280017

$13.75

30

FLANGETTE-OFFSET,W/HOLE

5243529

$13.75

31

GASKET,DRIVE ADAPTOR,(10)

5830012

$2.41

32

ADAPTER,DRIVE,W/ZERK

3280116

$101.17
