Description

Price

-

KIT,CLUTCH UPDATE (Incl. 7-9,12,18,19)

2200386

$161.89

1

BOLT,(10)

7512265

$3.99

2

LOCK WASHER(10)

7552801

$1.59

3

COVER,BEARING,GARMAX

3576516

$28.32

4

RING-RETAINING,COVER

7710417

$1.49

5

SPRING-CLUTCH,DARK BLUE/WHT

7041781

$56.65

6

NUT-JAM

5020425

$23.99

7

WASHER,MULTILUBE

5430945

$1.59

8

ASM-ROLLER AND BUSHING

1321457

$40.46

9

BUTTON, GUIDE,(10)

5430445

$6.39

9

BUTTON, GUIDE,(10)

5430445

$6.39

10

SPACER(10) (.050")

5210754

Unavailable

10

SPACER(10) (.025")

5242981

Unavailable

10

SPACER(10) (.020")

5210752

Unavailable

10

SPACER(10) (.032")

5210753

Unavailable

11

Weight/Bushing (10-60)

1321587

$40.46

12

PIN-WEIGHT,HARDENED,1/4X2.00

7515105

$13.75

13

SLEEVE, BEARING

3576502

$23.99

14

INSERT-MOVEABLE

5010188

$7.99

15

GEAR-RING

5131062

Unavailable

16

BOLT,RING GEAR(10)

7515351

$3.99

17

NUT FLEX LOC(10)

7541906

$3.19

18

PIN-ROLLER

5020422

$2.39

19

Kit - Shim, Drive Clutch

2200387

$24.27

20

DRV CLUTCH,ASM,BASIC 109 (Incl. 1,2,4,6-8,12-18)

1321881

Unavailable

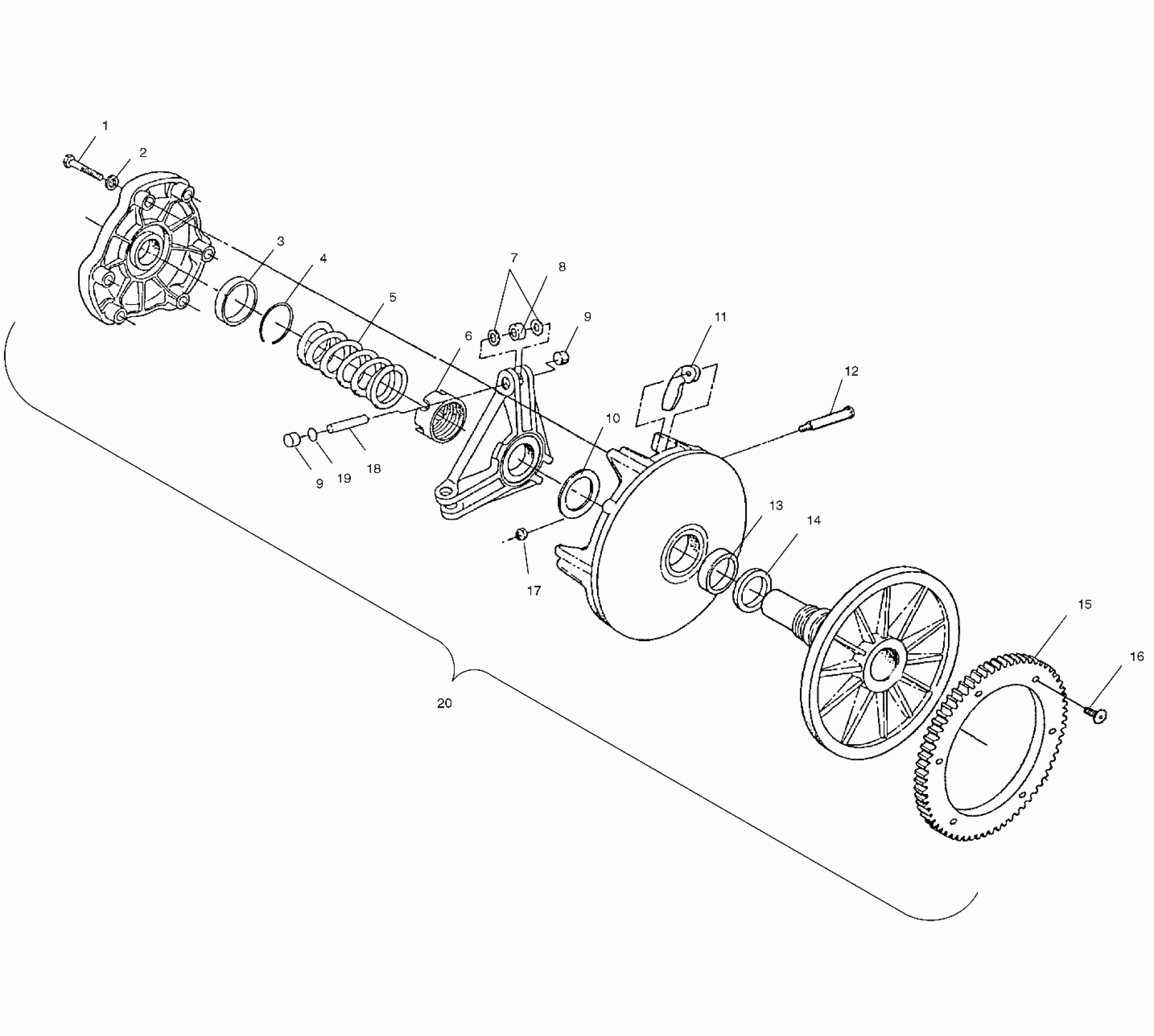

Polaris TRAIL TOURING - S00ST5BS DRIVE CLUTCH - S00ST5BS (4953965396C001) Diagram

KIT,CLUTCH UPDATE (Incl. 7-9,12,18,19)

BOLT,(10)

LOCK WASHER(10)

COVER,BEARING,GARMAX

RING-RETAINING,COVER

SPRING-CLUTCH,DARK BLUE/WHT

NUT-JAM

WASHER,MULTILUBE

ASM-ROLLER AND BUSHING

BUTTON, GUIDE,(10)

BUTTON, GUIDE,(10)

SPACER(10) (.050")

SPACER(10) (.025")

SPACER(10) (.020")

SPACER(10) (.032")

Weight/Bushing (10-60)

PIN-WEIGHT,HARDENED,1/4X2.00

SLEEVE, BEARING

INSERT-MOVEABLE

GEAR-RING

BOLT,RING GEAR(10)

NUT FLEX LOC(10)

PIN-ROLLER

Kit - Shim, Drive Clutch

DRV CLUTCH,ASM,BASIC 109 (Incl. 1,2,4,6-8,12-18)
