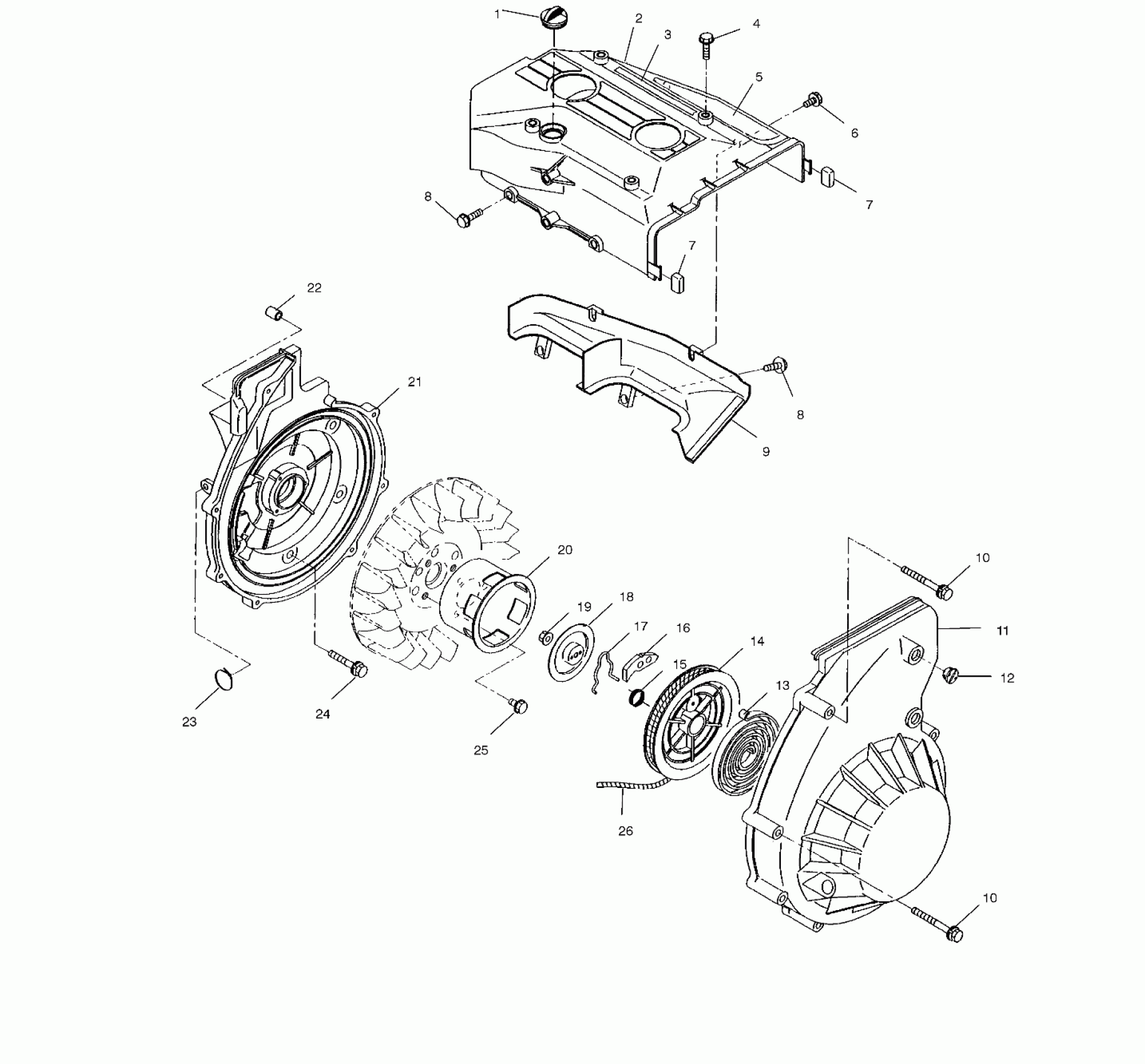

Polaris TRAIL TOURING - S00ST5BS BLOWER HOUSING & RECOIL STARTER - S00ST5BS (4953965396C010) Diagram

#

Description
Price

1

PLUG,HEAT VALVE

3085931

Unavailable

2

BAFFLE,CYL.#1 Substituted by 3086991

3085689

Unavailable

3

DECAL-"POLARIS",ENG.SHROUD,BLU

7077754

Unavailable

4

BOLT, FLANGE(10)

3084566

$3.19

5

DECAL-"550",ENGINE SHROUD (S00SB5BSA)

7077753

Unavailable

5

DECAL-"550",ENGINE SHROUD (S00SB5BS)

7078249

Unavailable

6

BOLT,FLANGE(10)

3085693

$2.39

7

CAP,CYL.BAFFLE

3085690

$9.70

7

CAP,CYL.BAFFLE

3085690

$9.70

8

BOLT,FLANGE

3085694

$2.63

8

BOLT,FLANGE

3085694

$2.63

9

BAFFLE #2,CYL.

3085691

Unavailable

10

BOLT&WASHER ASM.

3083550

Unavailable

10

BOLT&WASHER ASM.

3083550

Unavailable

11

STARTER,RECOIL Substituted by 3087018 (Incl. 13-19,26)

3085684

Unavailable

11

CASE,STARTER Substituted by 3087019

3085722

$242.84

12

PLUG,RUBBER

3086792

$24.27

13

Spring, Spiral

3083376

$179.11

14

REEL, REWIND

3083377

$56.65

15

Spring, Return

3083463

$4.03

16

Ratchet

3083378

$20.22

17

Spring, Friction

3083379

$24.27

18

Plate, Friction

3083464

$28.32

19

NUT, FLANGE ,(10)

3083381

$2.99

20

PULLEY,STARTING

3085685

Unavailable

21

HOUSING,BLOWER

3085913

$178.08

22

PIN,STRAIGHT

3084857

Unavailable

23

Band, Wire

3084823

$12.79

24

BOLT&WASHER ASM.

3084225

$3.99

25

BOLT&WASHER ASM.(10)

3085688

$2.99

26

ROPE,STARTER [No Longer Available]

3085723

Unavailable
