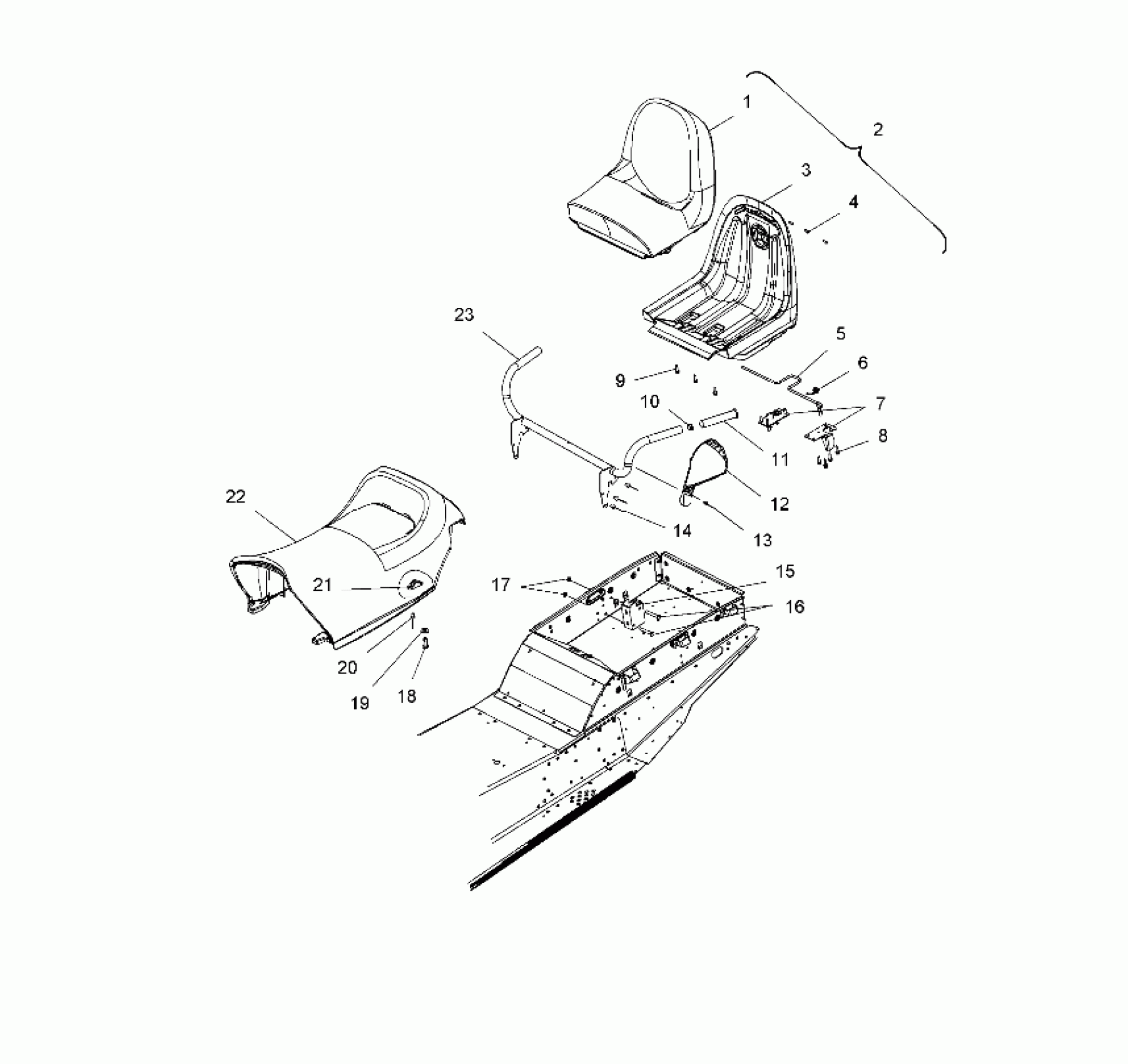

Polaris TRAIL TOURING DELUXE - S07NT5BS/BSA/BE/BEA SEAT - S07NT5BS/BSA/BE/BEA (49SNOWSEATTRAILTRG) Diagram

#

Description
Price

1

Asm., Base, Seat, Passenger Secondary

2683900

$231.19

1

Asm., Seat Cover, Passenger

2683901

$189.59

2

Asm., Seat [Incl. 1-9]

2683899

$539.99

3

Asm., Base, Seat, Psngr., Primary [Incl. 2-9]

2683071

$115.99

4

SCREW

7512026

$1.49

5

LATCH, SEAT

1015005

$31.99

6

SPRING, SEAT LATCH, TORSION

7042246

$8.79

7

PLATE, LATCH, MOUNT, LH

5249088

Unavailable

7

PLATE, LATCH, MOUNT, RH

5249089

Unavailable

8

RIVET

7621485

$1.49

9

Screw

7512098

$1.59

10

Plug

5431096

$2.02

11

Grip, Handlebar

5432634

$24.27

12

DEFLECTOR, WIND, PASSENGER, LH

5436778

$42.84

12

DEFLECTOR, WIND, PASSENGER, RH

5436779

$42.84

13

RIVET

7621472

$1.49

14

RIVET-3/16-.090-.290

7661637

$1.49

15

TUBE, STRIKER

5246855

Unavailable

16

Bolt

7512130

$3.99

17

Nut, Nylok

7542122

$1.49

18

SCREW

7517219

$4.79

19

Washer, Flat

7558301

$1.49

20

RIVET

7621319

$1.49

21

NUT, SEAT

5631194

$4.99

22

Asm., Seat

2683880

$400.79

22

Asm., Seat Cover

2683881

$189.59

23

Handle, Grab, Black

1015628-067

$74.39
