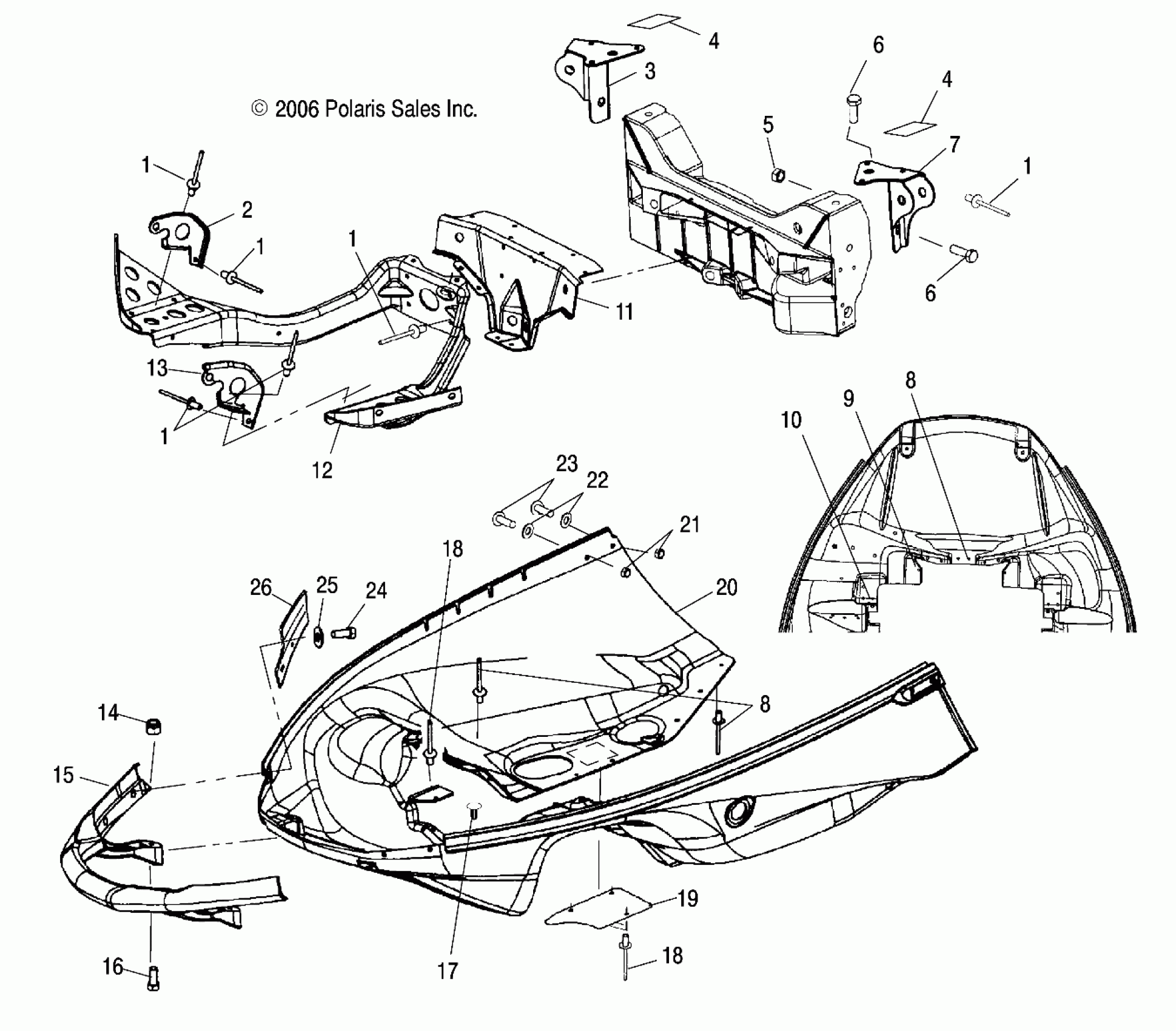

Polaris TRAIL TOURING DELUXE - S07NT5BS/BSA/BE/BEA NOSEPAN - S07NT5BS/BSA/BE/BEA (4997259725A06) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

Hinge, Pivot, Lower, Black, RH

5243992-067

$104.99

3

Mount, Shock, Upper, RH

5243978

$21.43

4

FOAM-SEAL,REAR COOLER

5810947

$4.03

4

FOAM-SEAL,REAR COOLER

5810947

$4.03

5

NUT, FLANGED

7547180

$2.39

6

SCREW

7517935

$2.39

6

SCREW

7517935

$2.39

7

Mount, Shock, Upper, LH

5243977

$32.95

8

RIVET

7621467

$1.49

8

RIVET

7621467

$1.49

9

RIVET

7621431

$1.49

10

Rivet

7661136

Unavailable

11

Bracket, Radius Rod Support, Black

5244049-067

Unavailable

12

Brace, Pan, Lower

5244050

$137.60

13

Hinge, Pivot, Lower, Black, LH

5243991-067

$104.99

14

NUT, NYLOK, FLANGED

7542153

$1.59

15

Bumper, Front, Black

5434439-070

$64.75

16

Bolt

7512163

$3.99

17

PLUG, NYLON

7670131

$4.84

18

RIVET

7621472

$1.49

18

RIVET

7621472

$1.49

19

Shield, Heat, Extended

5245853

$11.59

20

Nosepan, Black

5434343-070

$445.22

21

Nut, Nylok

7542122

$1.49

22

WASHER

7555827

$3.99

23

Screw

7515166

$3.19

24

Screw

7517986

$3.99

25

WASHER, SPRING LOCK

7552801

$1.59

26

Guide, Hood, LH

5244888

Unavailable

26

Guide, Hood, RH

5244889

Unavailable
