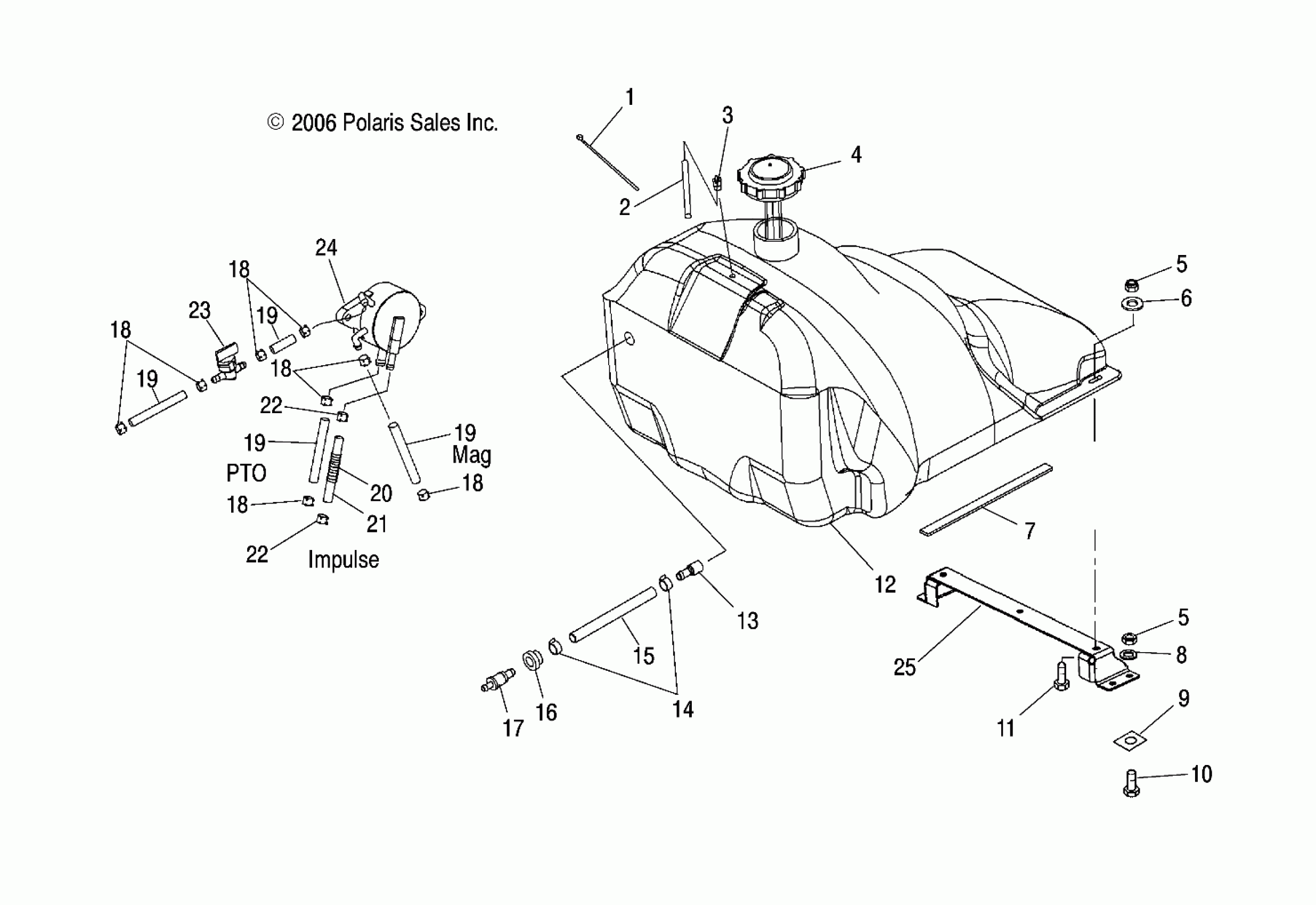

Polaris TRAIL TOURING DELUXE - S07NT5BS/BSA/BE/BEA FUEL SYSTEM - S07NT5BS/BSA/BE/BEA (49SNOWFUELTRAILTRG) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

LINE, FUEL

8450061-600

Unavailable

3

Fitting, 90 Degree

7052095

$4.79

4

Cap, Fuel w/Gauge

2520323

Unavailable

4

Gasket

5810512

$9.11

5

Nut, Nylok

7542122

$1.49

5

Nut, Nylok

7542122

$1.49

6

WASHER, FLAT

7555960

$3.99

7

FOAM-SEAL,REAR COOLER

5810947

$4.03

8

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

9

Nut, Speed

7670021

$6.99

10

BOLT

7515203

$3.99

11

Bolt

7512247

$2.39

12

Asm., Fuel Tank [Incl. 3,13-17]

2520466

Unavailable

13

Pickup, Fuel w/Filter

7052301

$12.94

14

RING, COMPRESSION

7080402

$1.60

15

Line, Fuel

8350019-160

Unavailable

16

Grommet

5435941

$7.60

17

Fitting

7052375

Unavailable

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

18

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

Line, Fuel

8350018-600

Unavailable

19

Line, Fuel

8350018-600

Unavailable

19

Line, Fuel

8350018-600

Unavailable

19

Line, Fuel

8350018-600

Unavailable

20

TUBING, CONVOLUTED

8360052-305

Unavailable

21

Line, Fuel

8450040-600

Unavailable

22

HOSE CLAMP, RED

7080003

$1.49

22

HOSE CLAMP, RED

7080003

$1.49

23

VALVE, FUEL

7052248

$24.27

24

Asm., Fuel Pump

3089751

Unavailable

25

Bracket, Gas Tank, Black

5246436-067

Unavailable
