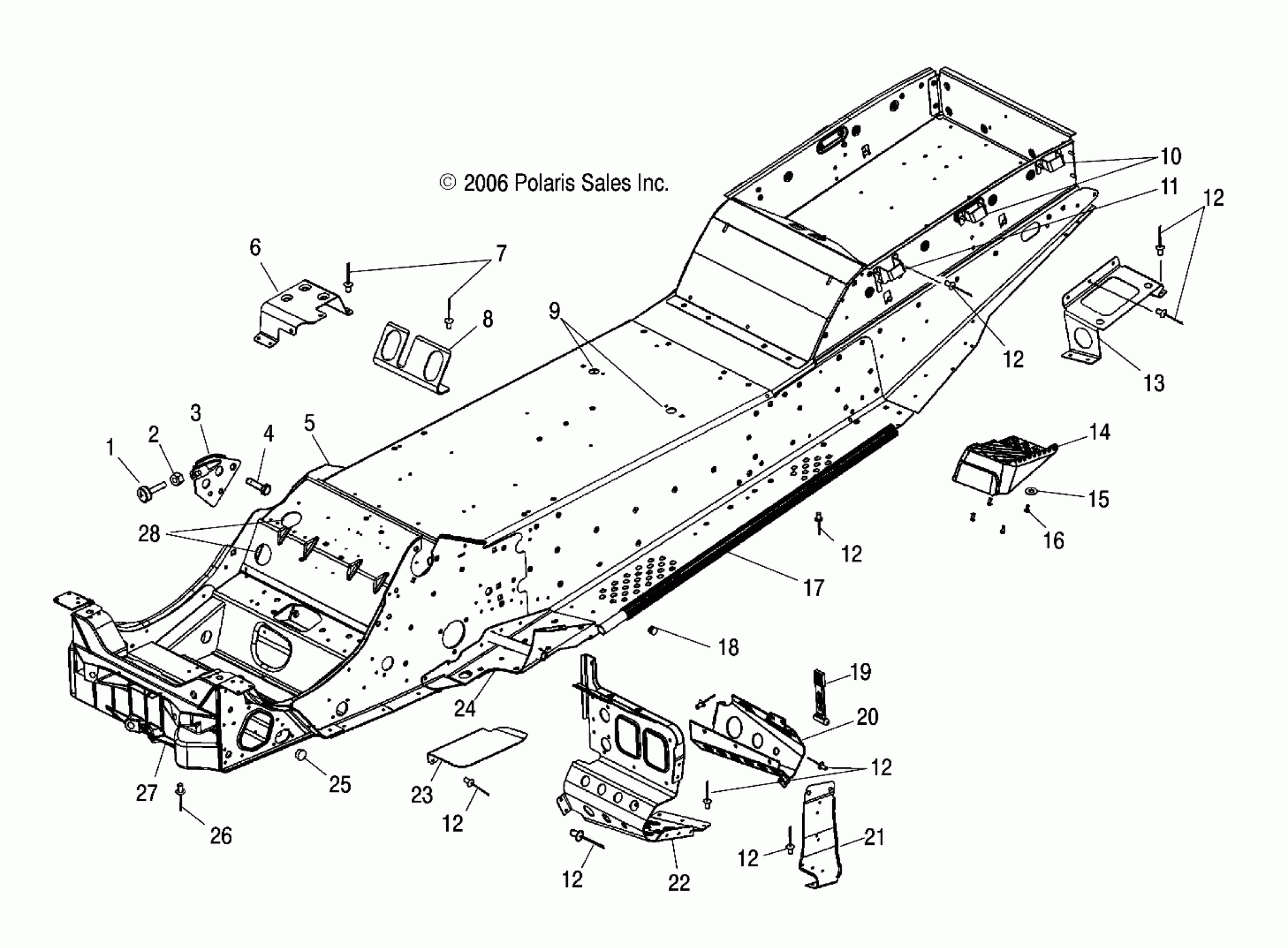

Polaris TRAIL TOURING DELUXE - S07NT5BS/BSA/BE/BEA CHASSIS - S07NT5BS/BSA/BE/BEA (49SNOWCHASSISTRAILTRG) Diagram

#

Description
Price

1

Stop, Torque

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque

1013399

$27.19

4

SCREW

7517632

$5.59

5

Asm., Chassis, Touring, Natural

1014471-309

$1,146.59

6

Bracket, Oil Bottle

5245202

$17.43

7

Rivet

7621432

$1.49

8

Bracket, Airbox

5246177

$18.23

9

Plug, Hole

7081076

$3.22

10

Hook, Cargo, Black

5247225-067

$3.03

11

Hook, Cargo, Front, Black

5246439-067

$3.03

12

RIVET-3/16-.090-.290

7661637

Unavailable

12

RIVET-3/16-.090-.290

7661637

Unavailable

12

RIVET-3/16-.090-.290

7661637

Unavailable

12

RIVET-3/16-.090-.290

7661637

Unavailable

12

RIVET-3/16-.090-.290

7661637

Unavailable

12

RIVET-3/16-.090-.290

7661637

Unavailable

12

RIVET-3/16-.090-.290

7661637

Unavailable

13

Bracket, Lower, Acc., Attach, Black, LH

5246275-067

$21.43

13

Bracket, Lower, Acc., Attach, Black, RH

5246276-067

$20.63

14

Footrest, Passenger, LH [Incl. 16]

5436071

$41.59

14

Footrest, Passenger, RH [Incl. 16]

5436072

$41.59

15

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

16

SCREW

7512076

$1.49

17

Roll, Tunnel, LH

1240166

$29.99

17

Roll, Tunnel, RH

1240167

$31.99

18

PLUG, BARBED

7081085

$7.27

19

STRAP-AIRBOX TOP

5433150

$24.27

20

Mount, Console, Toe Clip, LH

5245457

Unavailable

20

Mount, Console, Toe Clip, RH

5245458

Unavailable

21

Support, Footrest, LH

5246310

$19.83

21

Support, Footrest, RH

5246311

$32.37

22

Footrest, LH

5245288

Unavailable

22

Footrest, RH

5247205

Unavailable

23

Guard, Belt

5246066

Unavailable

24

Kit, Mount, Trailing Arm, LH

2202059

$213.00

24

Kit, Mount, Trailing Arm, RH

2202598

$124.99

25

PLUG, HOLE

7080416

$5.65

26

Rivet

7661130

$1.49

27

Bulkhead, Front

5132292

$115.99

28

Caplug

7080934

$1.83
