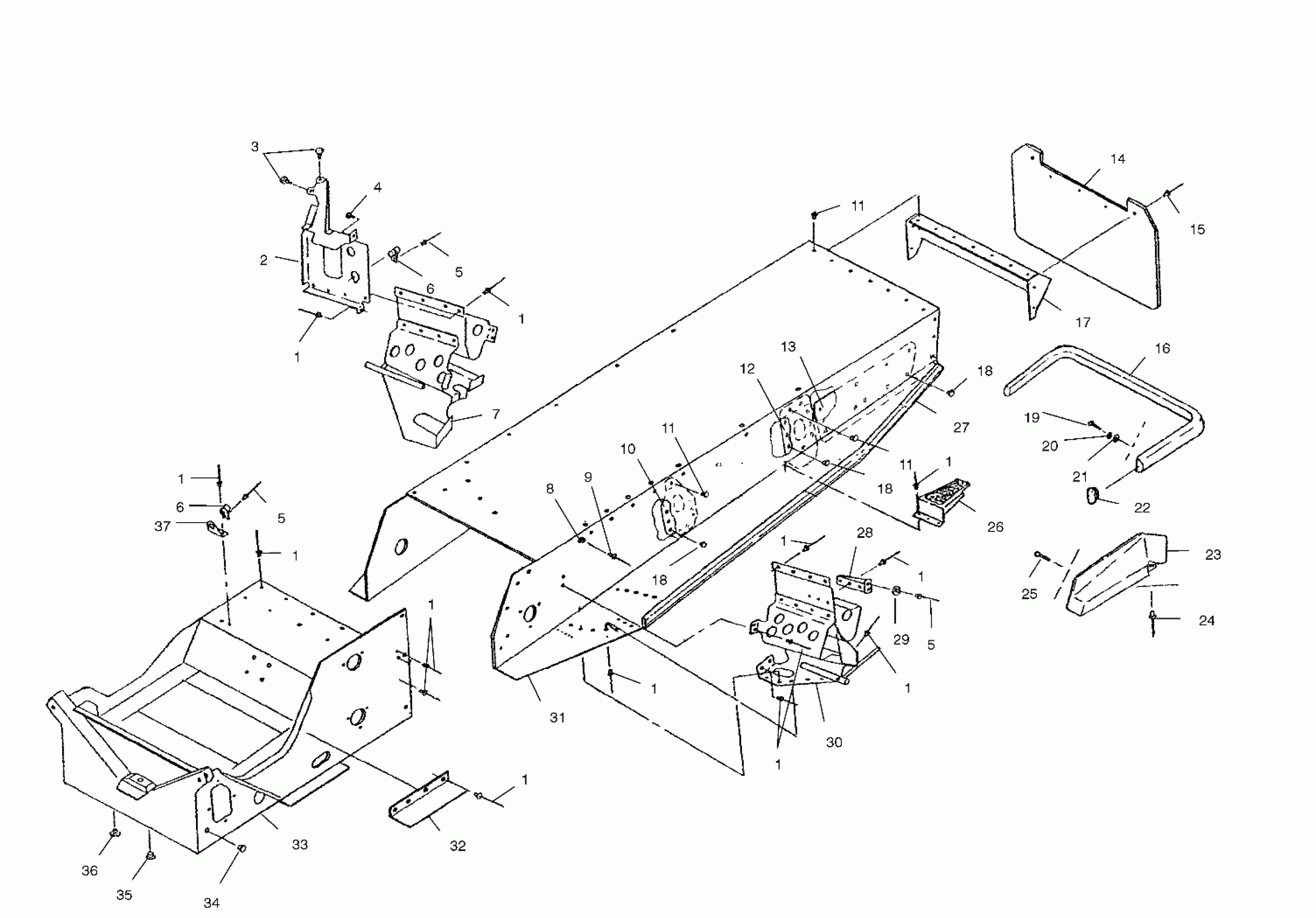

Polaris TRAIL TOURING - 099ET4ESA TUNNEL - 099ET4ES (4948334833A005) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

MT,CONSOLE,RH

1011952-067

$339.99

2

MT,CONSOLE,LH

1011951-067

$35.51

3

BUMPER,HOOD

5410768

$2.95

4

SCREW(10)

7512057

$2.38

5

RIVET,3/16X.402(50)

7621432

$1.49

5

RIVET,3/16X.402(50)

7621432

$1.49

5

RIVET,3/16X.402(50)

7621432

$1.49

6

GUIDE, RECOIL

5431385

$10.51

6

GUIDE, RECOIL

5431385

$10.51

7

FOOTREST ASM,RH

1011955

$126.41

8

SNAP-MALE(10)

7080227

Unavailable

9

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

10

PAD,LH,FR.SUSP.MTG. Substituted by 5244287-067

5241303-067

Unavailable

10

PAD,RH,FR.SUSP.MTG. Substituted by 5244287-067

5241304-067

Unavailable

11

RIVET ,(50)

7661836

$0.63

11

RIVET ,(50)

7661836

$0.63

11

RIVET ,(50)

7661836

$0.63

12

BRKT,SUSP,REAR,LH

1012619-067

Unavailable

12

BRKT,SUSP,REAR,RH

1012620-067

$13.99

13

BRACE,LH,TUNNEL,LOW.

5242102

Unavailable

13

BRACE,RH,TUNNEL,LOW.

5242103

Unavailable

14

FLAP,SNOW,(XTRA-10) Substituted by 5432149-1106

5432149

Unavailable

15

POP RIVET(50)

7621418

$1.49

16

BUMPER,REAR Substituted by 2670168-067

2670168

Unavailable

17

PANEL,CLOSE-OFF

5240968

Unavailable

18

RIVET ,(50)

7661837

$1.49

18

RIVET ,(50)

7661837

$1.49

18

RIVET ,(50)

7661837

$1.49

19

SCREW(10)

7515159

$4.79

20

LOCK WASHER(10)

7552801

$1.59

21

WASHER(10)

7558301

$1.49

22

CAP,BUMPER

5431995-070

Unavailable

23

SKIRT,SNO.TRNG,LH

5432131-070

$33.91

23

SKIRT,SNO.TRNG,RH

5432132-070

$30.95

24

RIVET(50)

7621472

$1.49

25

SCREW(10)

7512091

$3.99

26

PAD,FOOTREST GRIP

5830114

$35.24

26

FOOTREST,LH,W/GRIP PAD

1012633

$35.51

26

FOOTREST,RH,W/GRIP PAD

1012634

$35.24

27

EDGE,LH,TUNNEL

5242206

$222.49

27

EDGE,RH,TUNNEL

5242207

Unavailable

28

SUPPORT,BUMPERSIDE,BLK.

5240294-067

Unavailable

29

STOP,SIDEPANEL BUMPER

5411172

Unavailable

30

FOOTREST ASM,LH Substituted by 1011954

1012594

Unavailable

31

TUNNEL,F/C,X-10,TOUR

1012596

Unavailable

32

GUARD,ADAPTER GUIDE

5222857

$12.94

33

BULKHEAD

1012654-067

Unavailable

34

PLUG, HOLE(10)

7080416

$5.65

35

PLUG-HOLE

7080398

$4.84

36

BUSHING,OPEN/CLOSE(10)

7080399

$2.39

37

BRKT,ROPE GUIDE,BLK.

5222687-067

$59.99
