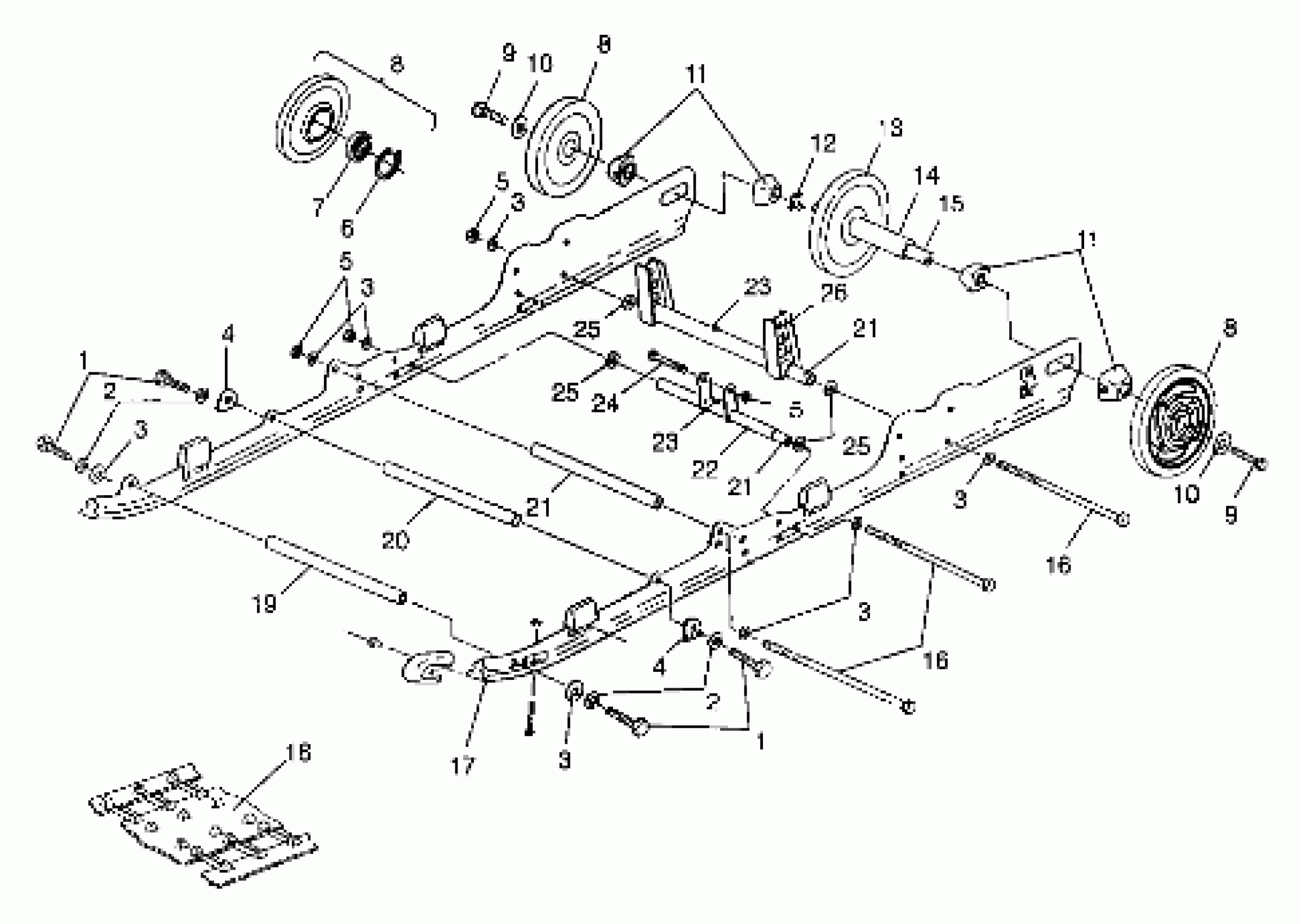

Polaris TRAIL TOURING - 099ET4ESA SUSPENSION - 099ET4ESA (4948334833B011) Diagram

#

Description
Price

1

SCREW,(10)

7517247

$3.19

1

SCREW,(10)

7517247

$3.19

2

WASHER(10)

7552603

$1.49

2

WASHER(10)

7552603

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

4

BRKT-SHAFT SUPPORT

5241443

Unavailable

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

5

NUT LOCK(10)

7542411

$3.19

6

RING-RETAINING

7710444

$8.79

7

Bearing

3514012

Unavailable

8

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

8

WHEEL,IDLER,SCRL,M.BLUE (099ET4ES)

1594083-107

Unavailable

8

WHEEL,IDLER,SCRL,TEAL (099ET4ESA)

1594083-176

$26.39

8

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

8

WHEEL,IDLER,SCRL,M.BLUE (099ET4ES)

1594083-107

Unavailable

8

WHEEL,IDLER,SCRL,TEAL (099ET4ESA)

1594083-176

$26.39

8

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

8

WHEEL,IDLER,SCRL,M.BLUE (099ET4ES)

1594083-107

Unavailable

8

WHEEL,IDLER,SCRL,TEAL (099ET4ESA)

1594083-176

$26.39

9

BOLT(10)

7515526

$1.19

9

BOLT(10)

7515526

$1.19

10

WASHER(10) Substituted by 7556130

7571629

Unavailable

10

WASHER(10) Substituted by 7556130

7571629

Unavailable

11

SPACER-IDLER

5432535

$11.99

11

SPACER-IDLER

5432535

$11.99

12

BUSHING(10)

7555918

$1.59

13

DESC NOT_AVAILABLE

1594087-070

Unavailable

14

SPACER-IDLER, LONG

5333285

$11.99

15

SHAFT,IDLER

5020744

$59.99

16

Screw

7517353

Unavailable

16

Screw

7517353

Unavailable

17

SLIDER,WHI.,(2)

5521452

$40.46

18

Clip, Slide

5241473

Unavailable

18

Clip, Guide

5241474

Unavailable

18

TRACK,133X.82,MOD LTNG,HS Substituted by 5411687

5411176

Unavailable

19

SHAFT,PIVOT ARM

5020723

$29.99

20

SHAFT,PIVOT ARM

5020724

$29.99

21

SHAFT

5333404

$24.27

21

SHAFT

5333404

$24.27

21

SHAFT

5333404

$24.27

22

ARM,SHOCK PIVOT

1541001-067

$43.65

23

ZERK,FITTING,THREADED(10)

7080433

$1.49

23

ZERK,FITTING,THREADED(10)

7080433

$1.49

24

BOLT(10)

7515472

$2.39

25

WASHER(10)

7555893

$1.49

25

WASHER(10)

7555893

$1.49

25

WASHER(10)

7555893

$1.49

26

ARM,R.PIVOT

1540981-067

Unavailable
