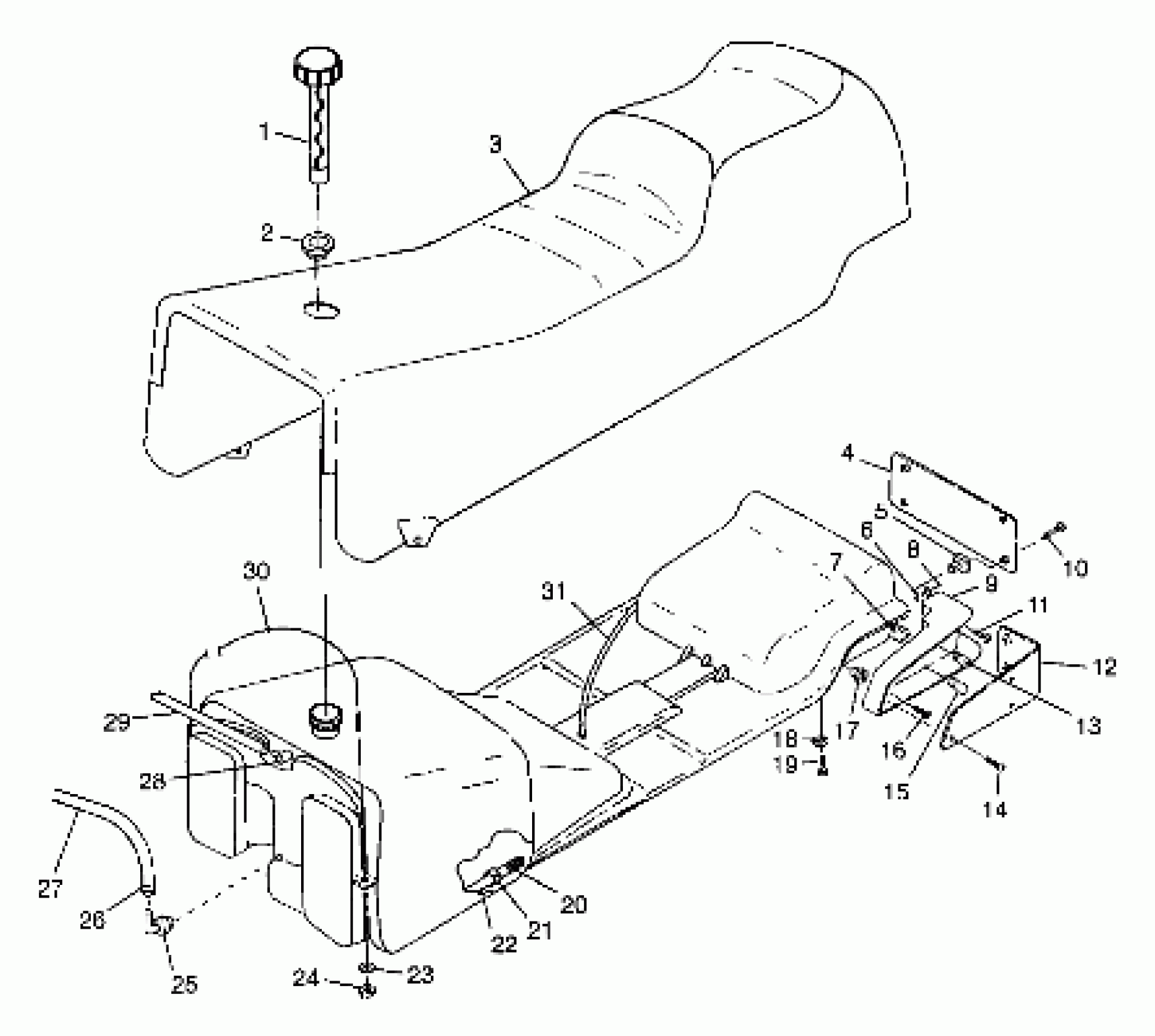

Polaris TRAIL TOURING - 099ET4ESA SEAT and GAS TANK - 099ET4ES (4948334833A006) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410815

Unavailable

3

COVER ASM,SEAT,TOUR

2682368

Unavailable

3

SEAT ASM,TOUR (Incl. 3-17,20-25)

2682367

Unavailable

4

REFLECTOR,CTR,SEAT

5432008

Unavailable

5

NUT(10)

7546908

$2.63

6

BURR,RIVET(50)

7555904

$1.49

7

BRKT,SEAT MT,BLK

1012643-067

Unavailable

8

RIVET(50)

7621433

$1.49

9

HOUSING,LH,LENS

5432002

Unavailable

9

HOUSING,RH,LENS

5432003

Unavailable

10

SCREW(10)

7511840

Unavailable

11

SCREW,SELF-TAP(10)

7522004

Unavailable

12

LENS,RH

5432032

$44.51

12

LENS,LH

5432031

Unavailable

13

Bulb, Brakelight

4030045

Unavailable

14

SCREW(10)

7512054

$2.39

15

BULB, T/L.

4032084

Unavailable

16

SCREW(10)

7511954

$1.19

17

NUT, WELL(10)

7541901

$6.39

18

WASHER,WROUGHT(10)

7558302

$1.59

19

SCREW(10)

7515159

$4.79

20

PICKUP,FUEL,W/STRAINER

7052081

Unavailable

21

RING, COMPRESSION(10)

7080402

$1.60

22

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

23

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

24

NUT(10)

7541925

$1.49

25

FITTING - OUTLET(10)

7052023

$24.99

26

HOSE CLAMP, RED

7080003

$1.49

27

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

28

FITTING,90 DEG,1/8,(10)

7052095

$4.79

29

FUELLINE,3MMX7MM

8450061-600

Unavailable

30

CABLE,TANK,RETENTION

7080559

Unavailable

31

HARNESS,T/L,(TOUR)

2460524

$58.39
