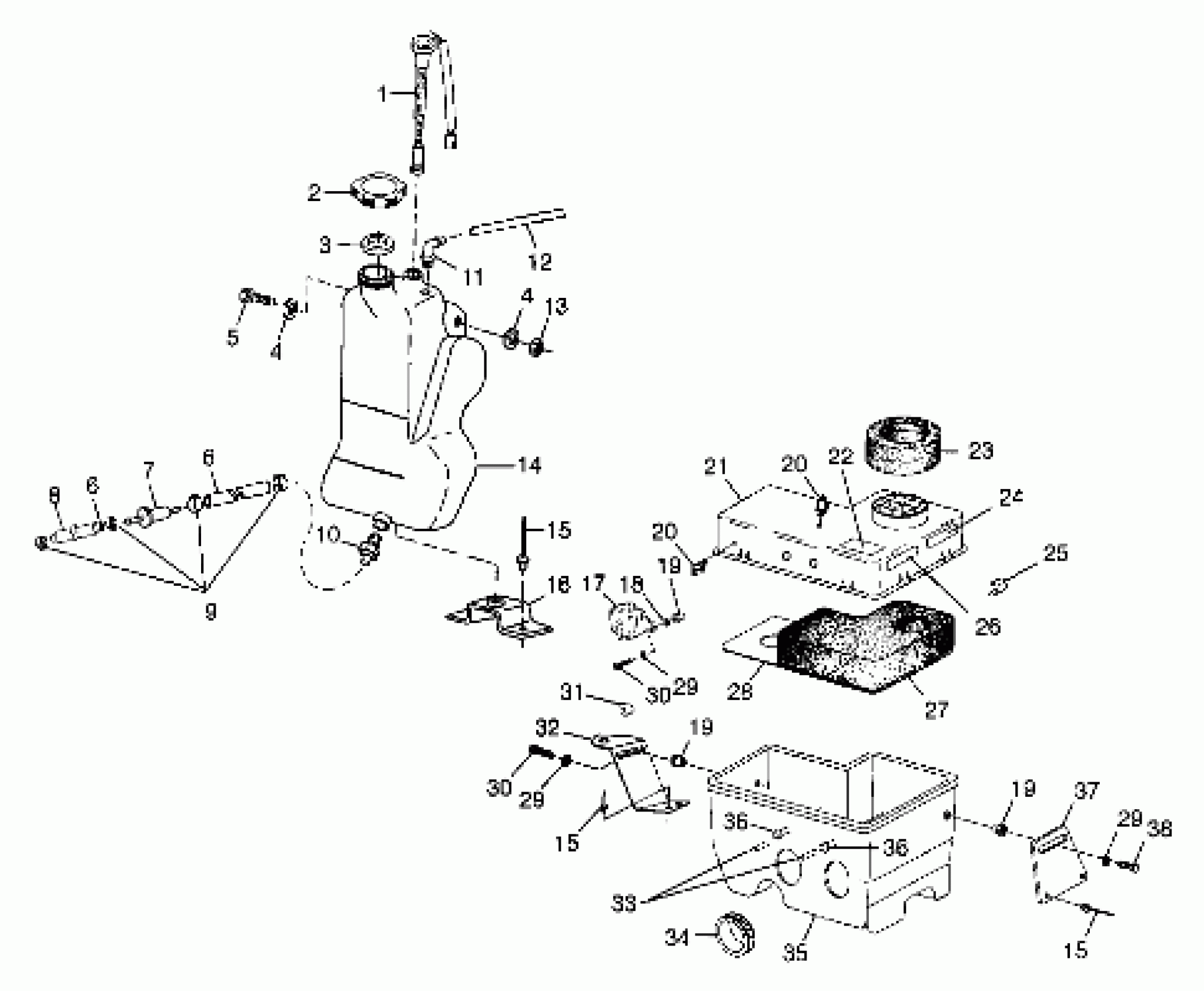

Polaris TRAIL TOURING - 099ET4ESA OIL TANK / AIR BOX - 099ET4ES (4948334833C005) Diagram

#

Description
Price

1

SENSOR,OIL LEVEL,W/CONN.

4040040

$72.84

2

CAP,OIL TANK

5430779

$14.56

3

GASKET-OIL CAP

5810141

$2.39

4

WASHER,WROUGHT(10)

7558302

$1.59

4

WASHER,WROUGHT(10)

7558302

$1.59

5

BOLT(10)

7512240

$3.99

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

6

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

7

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

8

CONDUIT,CONVOLUTED Substituted by 4010051-30

4010051

Unavailable

9

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

10

FITTING, OUTLET

7052042

$8.99

11

FITTING,90 DEG,1/8,(10)

7052095

$4.79

12

FUELLINE,3MMX7MM

8450061-600

Unavailable

13

NUT-LOCK(10)

7542122

$1.49

14

Tank, Oil

5431437

Unavailable

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

15

RIVET-3/16-.090-.290

7661637

$1.49

16

BRKT,OILTANK,COINED

5241334

$9.70

17

Asm., Fuel Pump (See Footnote) (See Fuel Pump Pg. C12, Ref. 2)

-------

Unavailable

18

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

19

NUT-WELL(10)

7541923

$5.59

19

NUT-WELL(10)

7541923

$5.59

19

NUT-WELL(10)

7541923

$5.59

20

CLIP, PLASTIC(10)

4020139

$4.79

20

CLIP, PLASTIC(10)

4020139

$4.79

21

COVER,AIR SILENCER

5432748

Unavailable

22

DECAL,CAUTION,AIRBOX

7075351

Unavailable

23

DUCT ASM,AIR

2620057

$40.46

24

DECAL,ADJ.DRIVEN CLUTCH

7073820

Unavailable

25

CLIP, AIR BOX,(10)

7670055

$7.99

26

DECAL, GREASING [No Longer Available]

7073426

$7.27

27

BAFFLE ASM.

1253116

$59.99

28

PLATE,AIR SILENCER

5850075

$24.27

29

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

29

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

29

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

30

SCREW(10)

7512222

$2.39

30

SCREW(10)

7512222

$2.39

31

DECAL,SHUT-OFF VALVE [No Longer Available]

7072151

Unavailable

32

BRKT,AIR SILENCER,W/TAB,BLK.

5240824-067

Unavailable

33

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

34

BOOT

5410403

$12.99

35

SILENCER,INTAKE,DRILLED

5432133

Unavailable

36

FITTING,(10)

7052077

$6.39

36

FITTING,(10)

7052077

$6.39

37

BRACKET, SILENCER

5211274

$9.70

38

SCREW(10)

7512279

$1.49
