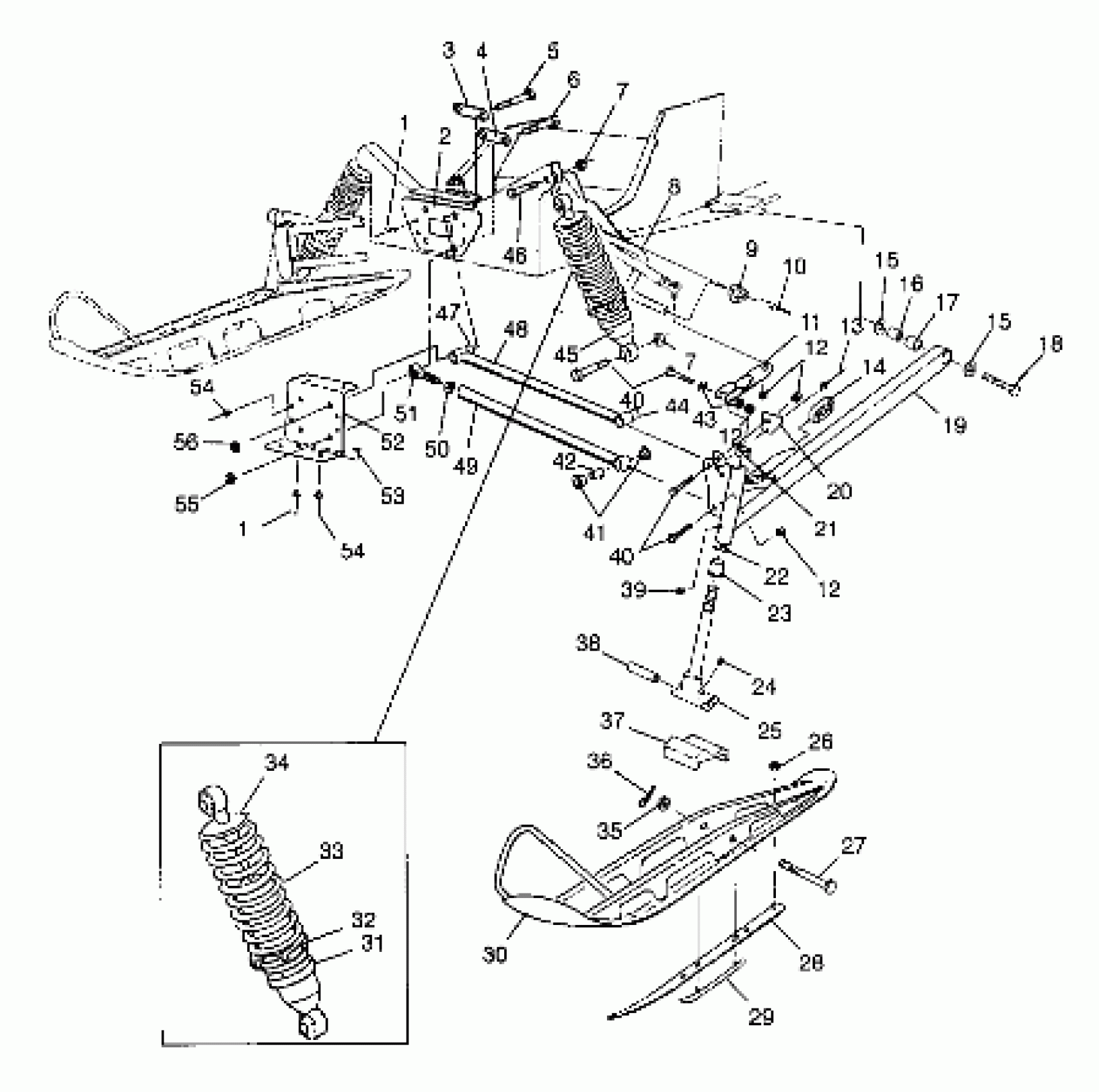

Polaris TRAIL TOURING - 099ET4ESA FRONT SUSPENSION and SKI - 099ET4ESA (4948334833B003) Diagram

#

Description
Price

1

RIVET-3/16-.090-.290

7661637

$1.49

1

RIVET-3/16-.090-.290

7661637

$1.49

2

BRACE,BLKHD/STRG,BLK.

5211589-067

Unavailable

3

STRAP,SPACER TOP

5211344

$7.27

4

STRAP,SPACER BOTTOM

5211345

$12.99

5

BOLT(10)

7512582

$8.79

6

BOLT(10)

7512684

Unavailable

7

NUT-LOCK(10)

7542439

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

BAR,SWAY,9/16(X-12)BLK

5224749-067

Unavailable

9

BUSHING,SWAY BAR

5432412

$15.99

10

RIVET(50)

7621433

$1.49

11

ARM,STRG,BLK

5241560-067

Unavailable

12

NUT LOCK(10)

7542403

$3.99

12

NUT LOCK(10)

7542403

$3.99

12

NUT LOCK(10)

7542403

$3.99

13

RIVET(50) Substituted by 7661130

7661643

Unavailable

14

SLIDE,SWAYBAR,9/16

5432674

Unavailable

15

WASHER(10)

7555721

$1.49

15

WASHER(10)

7555721

$1.49

16

TUBE, BUSHING

5010310

$9.70

17

PIVOT,TRLG.ARM,RUBBER

5410872

$10.99

18

BOLT(10)

7512557

$7.60

19

ARM ASM,TRLG,LH Substituted by 1822506-067 (Incl. 16,17)

1822506

$344.99

19

ARM ASM,TRLG,RH Substituted by 1822507-067 (Incl. 16,17)

1822507

Unavailable

20

STOP,LH,STRG,BLK.

5241569-067

$7.27

20

STOP,RH,STRG,BLK.

5241570-067

$7.27

21

BUSHING-FLANGE

3573909

$2.39

22

WASHER SPECIAL(10)

7556509

$1.59

23

BUSHING,SPINDLE HSG,(10)

3574208

$3.19

24

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

25

SHAFT,SPINDLE,TRLG,BLK

6230102-067

$294.99

26

NUT-5/16-18 NYLOK-Y

7542324

$1.49

27

BOLT(10)

7515462

$8.79

28

Plate, Skag

1011829-067

$54.99

29

SKAG, BLK.

1820318-067

$49.99

30

SKI WELD

1820430-067

Unavailable

31

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

32

RING,SPRING PRELOAD ADJ.

5431734

$52.60

33

SPRING,COMP,80#,BLK.

7041683-067

Unavailable

34

RETAINER,SPRING,SLOTTED,CAST Substituted by 5020618

5630580

Unavailable

35

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

36

PIN, COTTER(10) Substituted by 7661205

7661209

Unavailable

37

Stop, Rubber

5411083

$12.94

38

BUSHING,PIVOT,(10)

5010158

$19.99

39

ZERK,FITTING,THREADED(10)

7080433

$1.49

40

BOLT Substituted by 7515491

7515433

$1.59

40

BOLT Substituted by 7515491

7515433

$1.59

41

BUSH,RAD.ROD PIVOT,OUT.

5431486

$3.19

42

BUSHING-RADIUS ROD,(10)

5010127

$7.99

43

WSHR-.813X.406X.105-Y

7555832

$2.39

44

BUSHING,RAD.ROD PIVOT,3/8

5411099

$11.99

45

SHOCK,GAS,IFS

7041539

Unavailable

46

BOLT(10)

7515415

$1.49

47

BUSHING,PIVOT,7/16

5411095

$15.99

48

ROD,RAD,UPPER,FIXED (Incl. 44,47)

1822510

$38.89

49

ROD,RAD,LOWER,BLK.

1822383-067

Unavailable

50

NUT-JAM(10)

7542711

$2.39

51

ROD END Substituted by 7061027

7060162

$48.56

52

BRKT,PANSUPPORT,BLK.

5222866-067

Unavailable

53

BURR,RIVET(50)

7555904

$1.49

54

RIVET, BLIND(50)

7621467

$1.49

54

RIVET, BLIND(50)

7621467

$1.49

55

NUT FLEX,(10)

7542703

Unavailable

56

NUT, LOCK,(10)

7542503

$10.39
