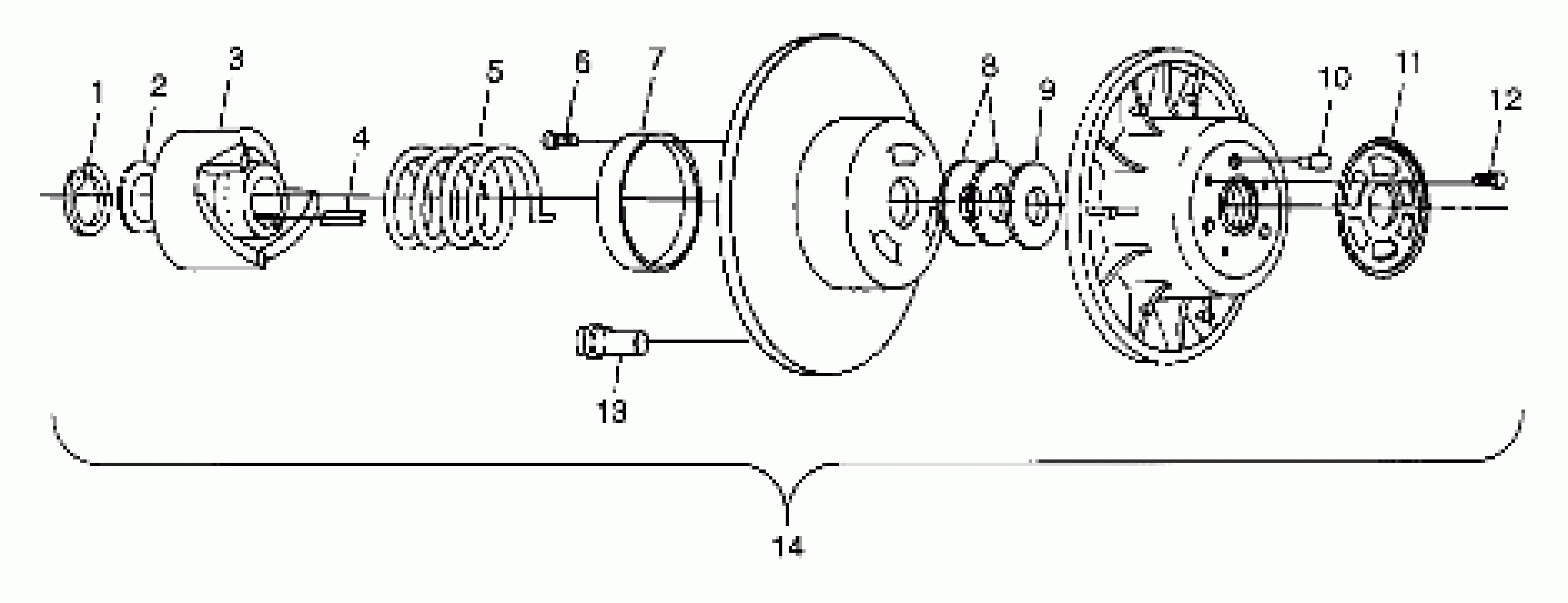

Polaris TRAIL TOURING - 099ET4ESA DRIVEN CLUTCH - 099ET4ESA (4948334833C003) Diagram

#

Description
Price

1

RING,RETAINING(10)

7714804

$9.59

2

WASHER(10)

7556804

$1.49

3

RAMP,DRIVEN,36 DEGREE

5130895

$199.99

4

KEY SQUARE(10)

7721103

$5.65

5

SPRING,CLUTCH,SVR.

7041499

$56.65

6

SCREW(10)

7512048

Unavailable

7

BUSHING,D.U.

3569803

Unavailable

8

WASHER(10) (.03)

7556804

Unavailable

8

WASHER(10) (.02)

7555898

Unavailable

9

WASHER,DRIVE CLUTCH(10)

7555865

$6.39

10

PIN, CLUTCH

5020653

$34.99

11

CAM,DRIVEN,ADJUSTABLE

5222878

$29.03

12

SCREW(10)

7515133

$3.99

13

BUTTON-RAMP,(10)

5430466

$6.46

14

CLUTCH,DRVN,36D SILVER Substituted by 1321925 (Incl. 1-13)

1322196

Unavailable
