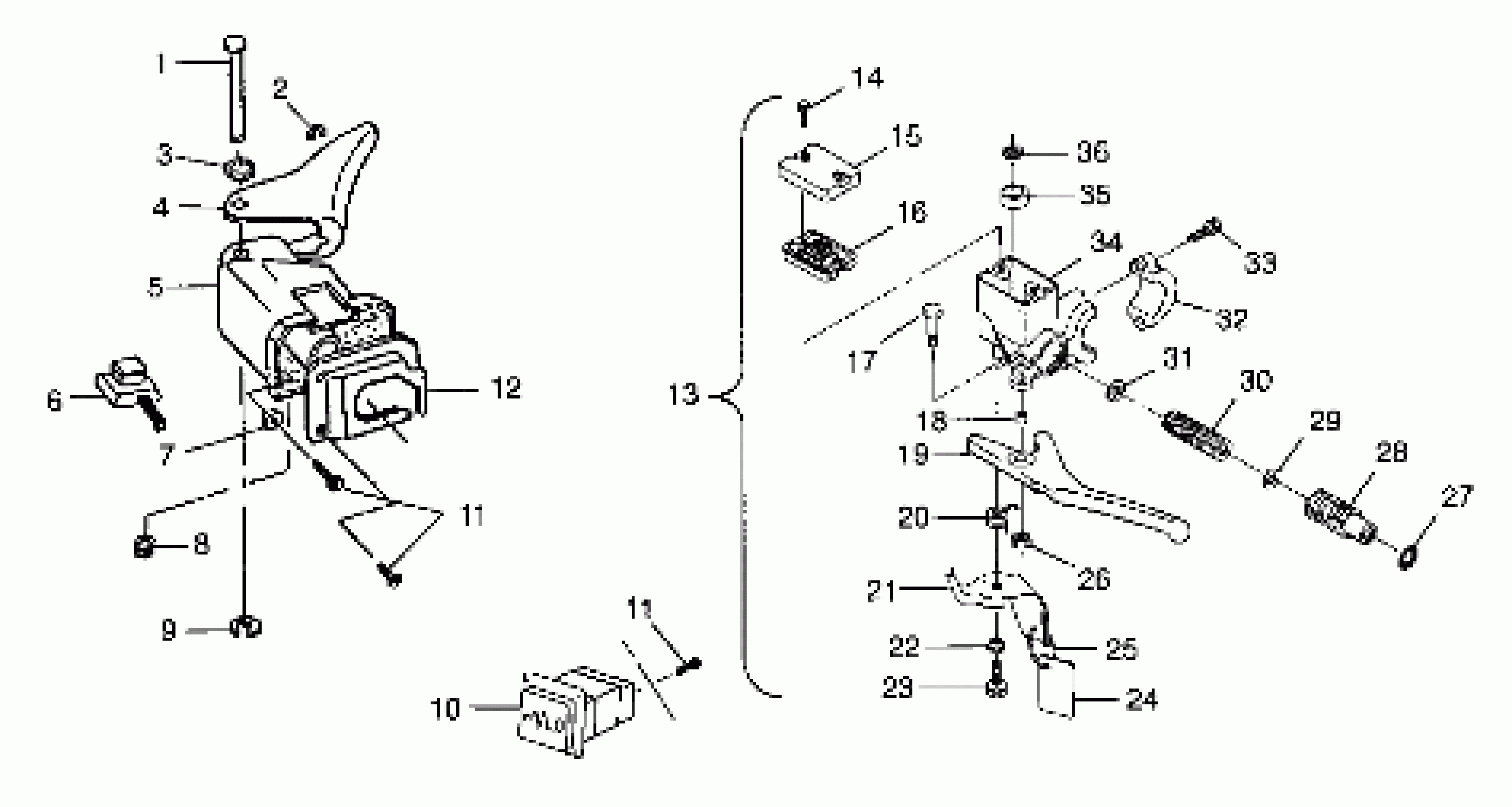

Polaris TRAIL TOURING - 099ET4ESA CONTROLS - 099ET4ESA (4948334833B006) Diagram

#

Description
Price

1

PIN-RETAINING .186X1.780-AL

7661624

$12.79

2

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

3

WASHER(10)

7555730

$3.99

4

LEVER,THROTTLE,W/HEATER

2010119

Unavailable

4

LEVER, THROTTLE

5431318-067

Unavailable

5

BLOCK,THROTTLE(EASY) Substituted by 5433343

5431311-067

Unavailable

6

SWITCH, KILL

4110118

Unavailable

7

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

8

SCREW(10)

7512465

$3.99

9

RING-RETAINING EXTERNAL

7710401

$3.99

10

SWITCH, DIMMER

4110136

Unavailable

11

SCREW-SEMS(10)

7511848

$3.99

11

SCREW-SEMS(10)

7511848

$3.99

12

BLOCK,ADAPTER,BLK.

5431313-067

Unavailable

13

MASTER CYL.ASM,3/4",SNOW (Incl. 14-19,26-36)

2050083

Unavailable

14

SCREW,W/WASHER(10)

7512050

$3.99

15

COVER,MASTER CYL.

5630338

Unavailable

16

GASKET,MASTER CYL.

5410527

$8.99

17

BOLT,BRAKE LEVER(10)

7512287

Unavailable

18

BUSHING,BRAKE LEVER

5332931

Unavailable

19

LEVER,BRAKE

5630847

Unavailable

20

SPRING,PK.BRAKE

7041229

$32.37

21

LEVER,PARK.BRAKE

5240809

Unavailable

22

BUSHING,PK.BRAKE LEVER

5020670

Unavailable

23

SCREW(10)

7511866

$4.79

24

TAG,PARK.BRAKE

5431389

Unavailable

25

STRAP,PARK.BRAKE TAG

7080447

Unavailable

26

NUT-LOCK(10)

7542122

$1.49

27

O RING

5410163

$1.60

28

PISTON,MASTER CYL.

5020679

Unavailable

29

U PACKING SEAL

5410164

Unavailable

30

SPRING, MASTERCYL.

7041311

Unavailable

31

WASHER(10)

7555708

$3.99

32

CLAMP, MASTER CYL.

5630342

Unavailable

33

BOLT,SOCKET HEAD(10)

7512290

$4.79

34

HOUSING,MASTERCYL.

5130955

$293.65

35

BAFFLE,MASTER CYL.

1930673

Unavailable

36

WASHER, BAFFLE(10)

1930662

Unavailable
