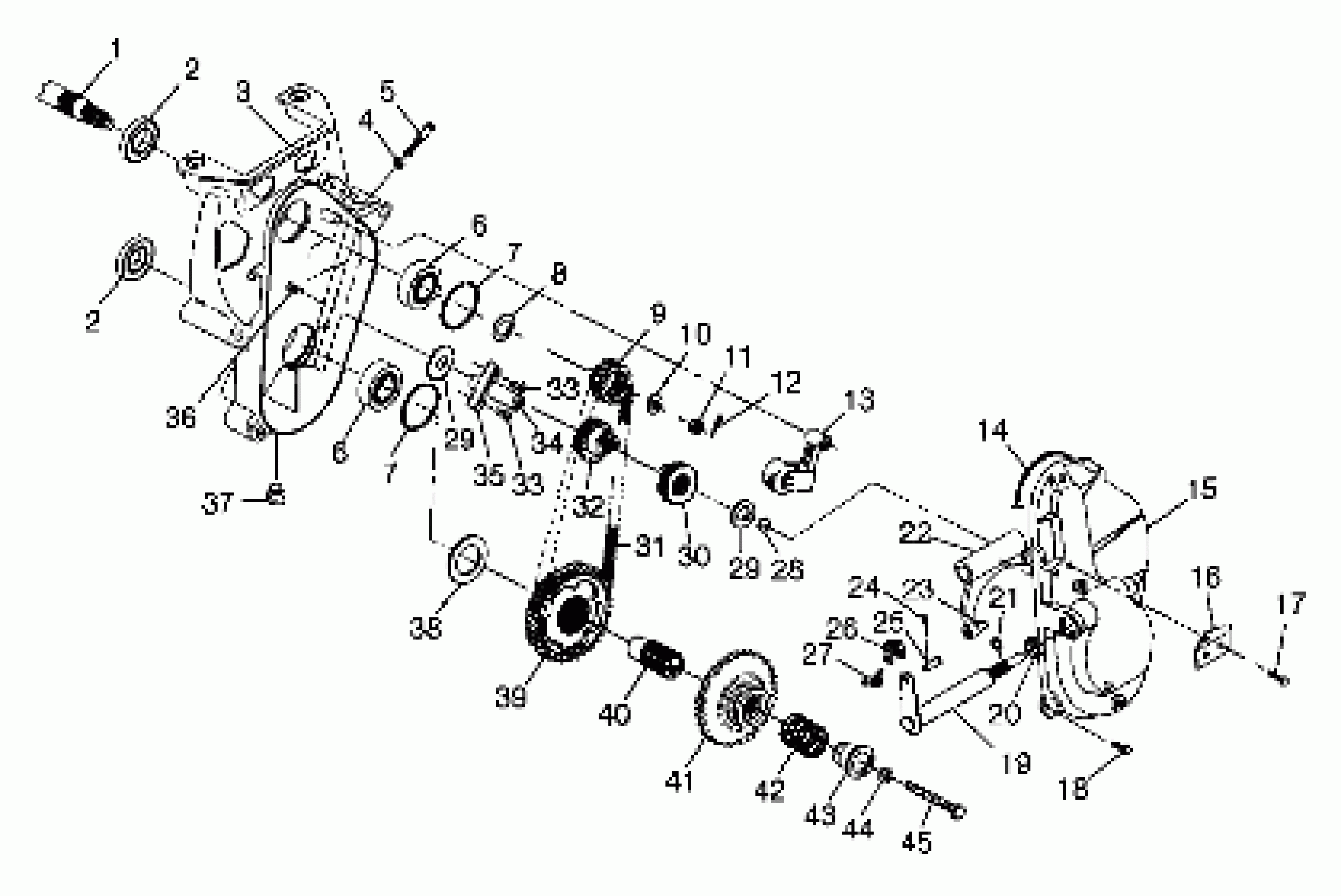

Polaris TRAIL TOURING - 099ET4ESA CHAINCASE - 099ET4ESA (4948334833B009) Diagram

#

Description
Price

1

Asm., Jackshaft (See Footnote) (See Drive Train Pg. B10, Ref. 16)

-------

Unavailable

2

SEAL-OIL

3610030

$20.22

2

SEAL-OIL

3610030

$20.22

3

CHAINCASE-W/RATCHET MNT

5131568

Unavailable

4

NUT(10)

7542404

$1.59

5

SCREW(10)

7515551

$6.39

6

BEARING,BALL

3514309

$15.87

6

BEARING,BALL

3514309

$15.87

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

WASHER(10)

7555917

$2.39

9

SPKT,20T,3/4W,15 SPL,HV,PM

3221096

$49.99

10

WASHER, SLOTTED(10)

7571620

$7.19

11

NUT

7542811

Unavailable

12

COTTER PIN(10)

7661401

$1.49

13

PIN,CHAIN TIGHTENER

7662210

Unavailable

13

TIGHTENER ASM,GEARCASE Substituted by 1332213

1332096

$159.99

13

BEARING

3553002

$11.99

13

BLOCK,TIGHTENER [No Longer Available]

5630122

Unavailable

13

WHEEL,C/C IDLER

5630123

Unavailable

13

WASHER THRUST(10)

7558702

$1.59

14

GASKET-CHAINCASE

5410277

$24.99

15

COVER,CHAINCASE,REV.

5131753

Unavailable

16

BRKT,CABLE MOUNT

5222502-067

Unavailable

17

SCREW,(10)

7517386

$1.49

18

SCREW(10)

7512242

$2.39

19

SHAFT, SHIFT

1341093-067

$29.37

20

Seal, Oil

3610029

$8.89

21

RING, RETAINER(10)

7710415

$3.99

22

KIT,SHIFT FORK/SHAFT (Incl.19,20,22,23)

2200363

Unavailable

22

Fork, Shift

5130805

Unavailable

23

PIN, SHIFT FORK(10)

7661826

$5.65

24

PIN-COTTER(10)

7661205

$1.49

25

PIN, CLEVIS(10)

7661830

$3.99

26

CLEVIS

5222606

Unavailable

27

SPRING,REV.CABLE TENSION

7042044

Unavailable

28

O RING

5410589

$4.99

29

WASHER,THRUST(10)

7555877

$3.99

29

WASHER,THRUST(10)

7555877

$3.99

30

GEAR,SPUR PINION

1341075

$149.99

30

Bearing, Needle

3554508

$16.99

31

CHAIN,HYVO 66 P,3/4W

3221113

$124.99

32

SPROCKET,PINION

1341241

Unavailable

32

Bearing, Needle

3554508

$16.99

33

SCREW(10)

7512019

$3.99

33

SCREW(10)

7512019

$3.99

34

HOUSING,MASTER CYL.

5130770

Unavailable

35

BRKT,CHAIN RETENTION

5222298

Unavailable

36

BOLT(10)

7515477

$34.99

37

PLUG(10)

7052115

$5.65

38

WASHER, REVERSE(10)

7555871

$5.59

39

SPKT.ASM,40T,REV,3/4W,PM

1341227

Unavailable

40

Coupler, Drive

5130720

Unavailable

41

GEAR ASM,REVERSE Substituted by 1341362

1341121

$559.99

42

SPRING, COMPRESSION Substituted by 7041887

7041309

$44.99

43

RETAINER,DRIVE COUPLER

5130727

Unavailable

44

LOCK WASHER(10)

7552901

$1.49

45

SCREW, NYLOK(10)

7515348

$4.79
