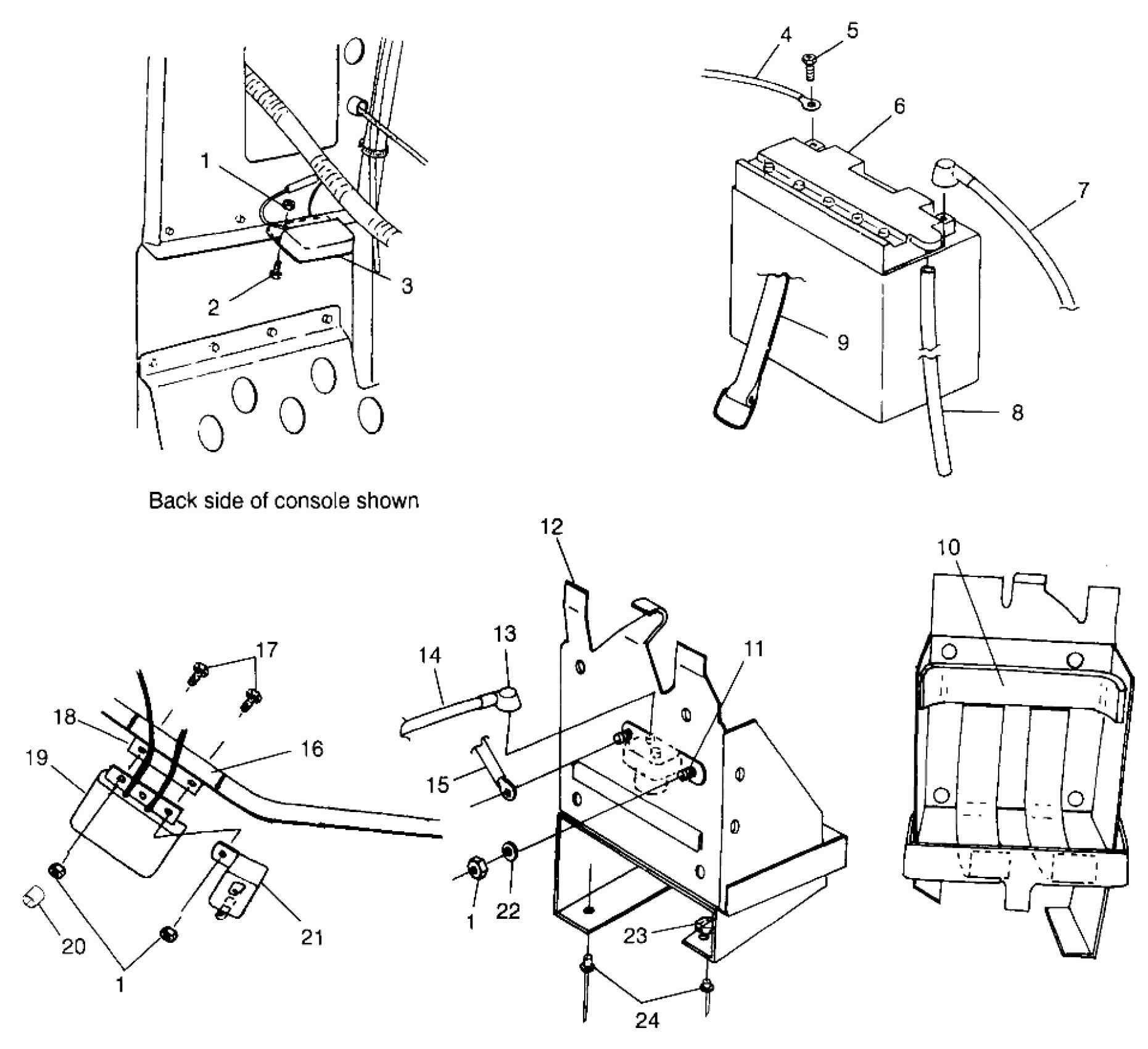

Polaris TRAIL TOURING - 099ET4ESA BATTERY BOX - 099ET4ES (4948334833A009) Diagram

#

Description
Price

1

NUT(10)

7541925

$1.49

1

NUT(10)

7541925

$1.49

1

NUT(10)

7541925

$1.49

2

SCREW,W/WASHER(10)

7512050

$3.99

3

REGULATOR,14 VAC.LR-9

4060122

Unavailable

4

CABLE,BATT/ENG,15",BLK

4010113

Unavailable

5

BOLT,BATT,KIT(SHORT)

2200361

$3.99

6

Battery

4140006

$99.99

7

CABLE,BATT-SOLENOID

4010091

Unavailable

8

TUBE,BATTERY VENT

5432077

Unavailable

9

STRAP ASM,BATT.HOLD.

2450020

$29.03

10

PAD-BATTERY

5810290

$7.27

11

SCREW(10)

7512027

$1.49

12

BATTERY BOX,BLACK Substituted by 2201223

1012727-067

Unavailable

13

INSULATOR-CABLE

5410346

$6.39

14

CABLE,SOL/STRT,BLK,16.5"

4010107

Unavailable

15

WIRE,JUMPER,SOL/BATT,8.5"

4010108

Unavailable

16

TRIM,EDGE,6FT,BLACK [No Longer Available]

5521131

Unavailable

17

BOLT(10)

7512031

$2.23

18

HEAT SINK

5210650

Unavailable

19

RECTIFIER, LR-4

4060104

Unavailable

20

CAP,THREAD PROTECTOR .156X.500

7080832

Unavailable

21

CIRCUIT BREAKER

2434008

Unavailable

22

WASHER, FLAT(10)

7558201

$5.79

23

BURR,RIVET(50)

7555904

$1.49

24

RIVET, BLIND(50)

7621467

$1.49
