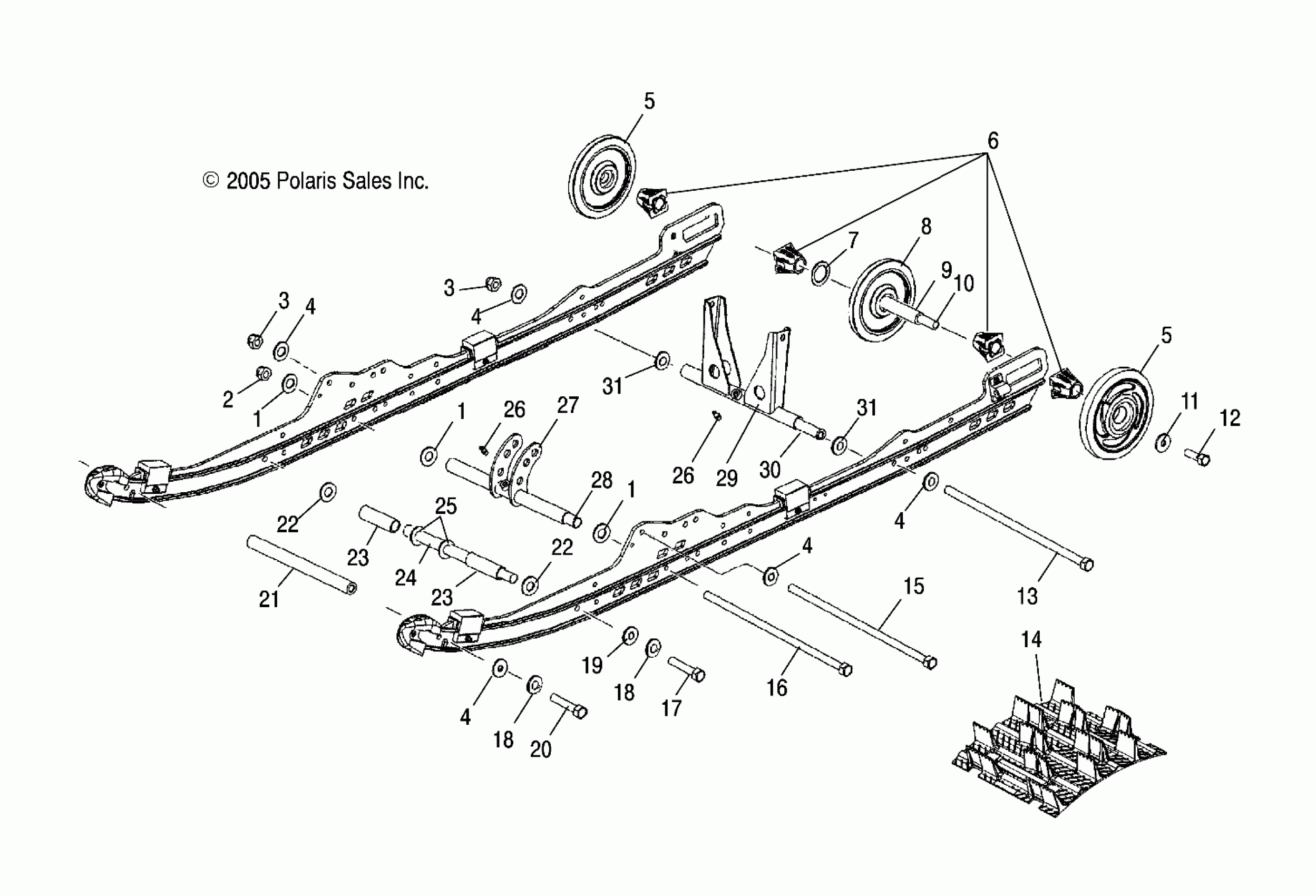

Polaris TRAIL RMK - S07NJ5BS/BE SUSPENSION - S07NJ5BS/BE (4997279727B07) Diagram

#

Description
Price

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

1

WASHER, FLAT

7556216

$4.79

2

Nut, Nylok

7547217

$3.99

3

Nut, Nylok

7542439

$1.49

3

Nut, Nylok

7542439

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

4

Washer, Flat

7555806

$1.49

5

BEARING

3514384

$19.84

5

RING-RETAINING

7710444

$8.79

5

Asm., Wheel, Idler, Bright Silver Metallic

1590303-244

Unavailable

5

BEARING

3514384

$19.84

5

RING-RETAINING

7710444

$8.79

5

Asm., Wheel, Idler, Bright Silver Metallic

1590303-244

Unavailable

6

SPACER-IDLER

5432535

$11.99

7

BUSHING

7555918

$1.59

8

ASM., WHEEL

1594087

$72.84

9

SPACER-IDLER, LONG

5333285

$11.99

10

SHAFT, IDLER

5020744

$59.99

11

WASHER

7556130

$6.39

12

BOLT

7517731

$1.49

13

SCREW

7517921

$23.99

14

CLIP, GUIDE

5222840

Unavailable

14

Track

5411955

Unavailable

15

SCREW

7517921

$23.99

16

Screw

7517996

Unavailable

17

Screw

7517857

$5.59

18

Washer, Spring Lock

7552603

$1.49

18

Washer, Spring Lock

7552603

$1.49

19

WASHER

7556042

Unavailable

20

Screw

7517247

$3.19

21

Shaft

5020868

Unavailable

22

WSHR-.813X.406X.105-Y

7555832

$2.39

22

WSHR-.813X.406X.105-Y

7555832

$2.39

23

Spacer, Shock Centering

5334062

$11.99

23

Spacer, Shock Centering

5334062

$11.99

24

SHAFT

5133188

$40.46

25

WASHER

7556210

$3.99

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

26

FITTING-LUBRICATION 1/4-28

7080424

$4.79

27

Arm, Pivot, Shock, Black

1541635-067

$67.76

28

Tube

5334042

Unavailable

29

ARM, PIVOT, REAR, BLACK

1541832-067

$104.99

30

TUBE

5334162

$24.27

31

WASHER, FLAT

7556242

$2.39

31

WASHER, FLAT

7556242

$2.39
