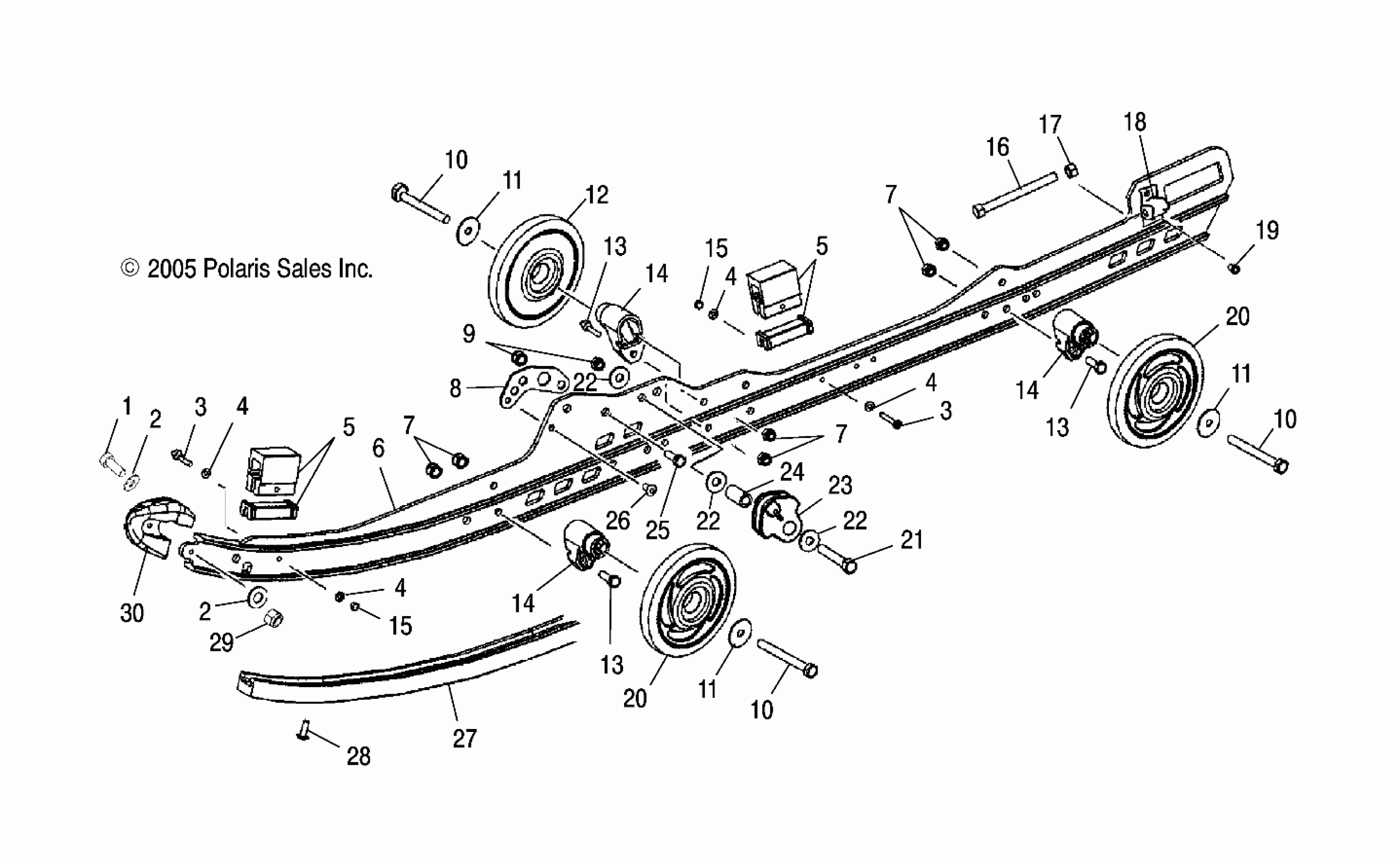

Polaris TRAIL RMK - S07NJ5BS/BE SUSPENSION, RAIL MOUNTING - S07NJ5BS/BE (4997279727B08) Diagram

#

Description
Price

1

BOLT

7512007

$3.99

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Screw

7510504

$6.76

3

Screw

7510504

$6.76

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

4

Washer, Flat

7555783

$3.99

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

5

BUMPER, JOUNCE, REAR

5521498

$8.89

5

LINER-BUMPER

5432946

$9.70

6

Asm., Rail, 136, LH [Incl. 1-6,18,19,29,30]

1541955

Unavailable

6

Asm., Rail, 136, RH [Incl. 1-6,18,19,29,30]

1541956

Unavailable

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-5/16-18 NYLOK-Y

7542324

$1.49

8

Bracket, Rail, Reinforcement

5245411

$9.70

9

Nut, Nylok

7542439

$1.49

10

Screw

7515346

$5.59

10

Screw

7515346

$5.59

10

Screw

7515346

$5.59

11

Washer, Spring

7556179

$7.99

11

Washer, Spring

7556179

$7.99

11

Washer, Spring

7556179

$7.99

12

Asm., Wheel, Bogie

1590317

$48.56

13

BOLT

7515317

$4.79

13

BOLT

7515317

$4.79

13

BOLT

7515317

$4.79

14

Block, Wheel Mount

5631065

$28.32

14

Block, Wheel Mount

5631065

$28.32

14

Block, Wheel Mount

5631065

$28.32

15

Nut, Nylok

7541925

$1.49

15

Nut, Nylok

7541925

$1.49

16

SCREW

7517227

$7.19

17

NUT

7542404

$1.59

18

BLOCK, IDLER BOLT ADJUST

5130530

$32.37

19

RIVET

7621501

$2.39

20

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

20

BEARING [1 PER WHEEL]

3514303

$11.99

20

Asm., Wheel, Scrolled, Bright Silver Metallic

1590318-244

Unavailable

20

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

20

BEARING [1 PER WHEEL]

3514303

$11.99

20

Asm., Wheel, Scrolled, Bright Silver Metallic

1590318-244

Unavailable

21

Bolt

7515438

$4.79

22

WASHER

7555983

Unavailable

22

WASHER

7555983

Unavailable

23

Pin, Clevis

7661123

$3.99

23

GUIDE, SPRING, SQUARE

5434334

$28.32

23

PIN, HITCH

7661644

$2.39

24

SPACER

5333948

$6.39

25

Bolt

7512457

$3.99

26

RIVET

7661845

$1.49

27

SLIDER

5521632

$39.98

28

Screw

7515199

$1.49

29

Nut, Nylok

7541925

$1.49

30

Cap, Rail Tip

5434355

Unavailable
