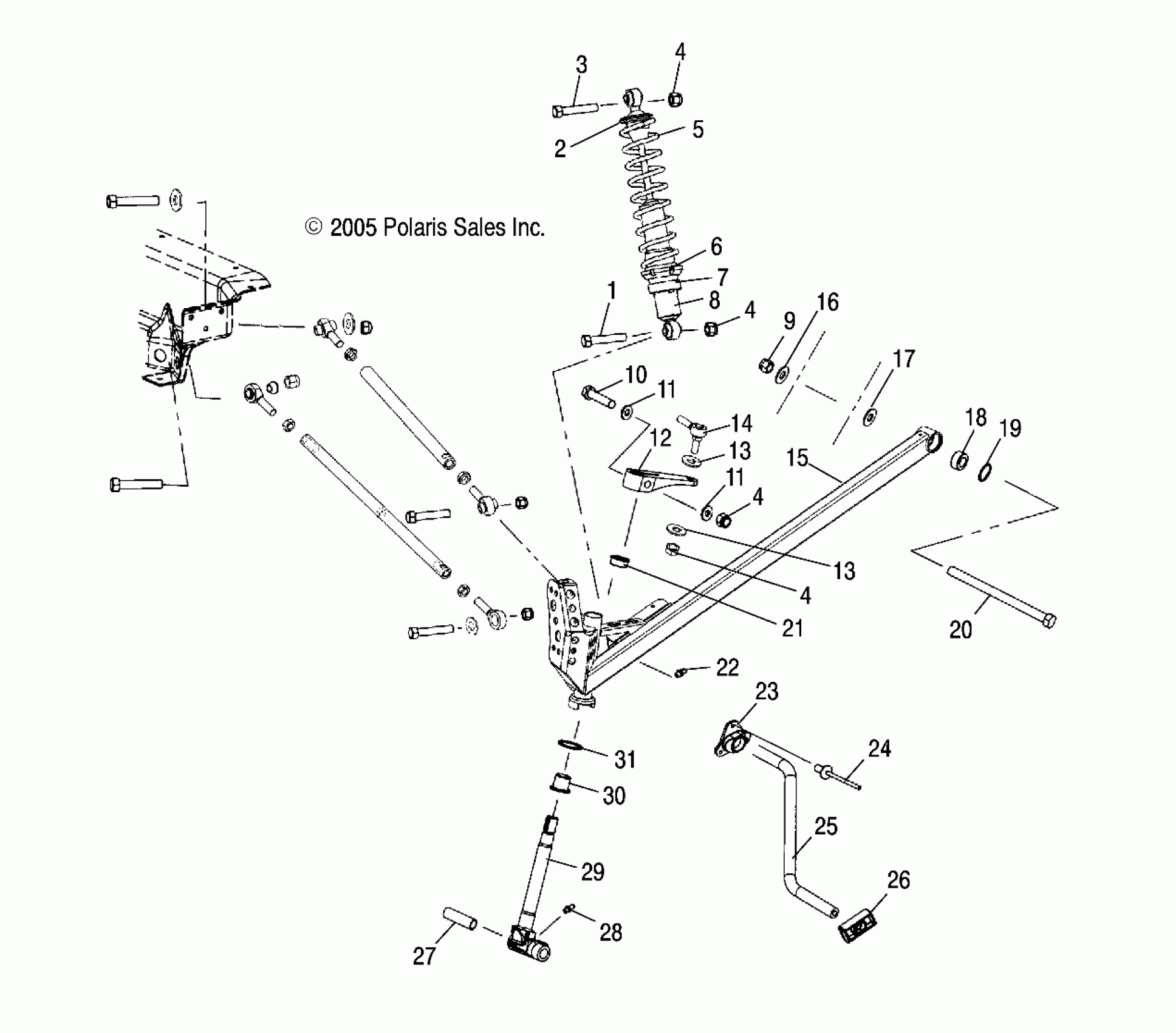

Polaris TRAIL RMK - S07NJ5BS/BE SUSPENSION, FRONT/TRAILING ARM - S07NJ5BS/BE (4997279727B01) Diagram

#

Description
Price

1

Screw

7515433

$1.59

2

Retainer, Spring, Slotted

5630580

Unavailable

3

Screw

7515415

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

5

Spring, Compression, IFS

7041552-067

$44.51

6

Ring, Spring Preload

5431734

$52.60

7

RETAINER, SPRING, BODY, THREADED

1500063

$44.51

8

Shock, IFS, Nitrex

7042197

$214.99

9

Nut, Nylok

7547066

$1.59

10

SCREW

7517583

$4.35

11

WSHR-.813X.406X.105-Y

7555832

$2.39

11

WSHR-.813X.406X.105-Y

7555832

$2.39

12

Arm, Steering

5133060

$70.39

13

Washer, Flat

7555797

$3.99

13

Washer, Flat

7555797

$3.99

14

Rod End, RH [See Steering, Lower Pg, Ref. 6]

-------

Unavailable

15

Asm., Trailing Arm, Cloud Silver, LH [Incl. 18,19]

1821260-385

$629.99

15

Asm., Trailing Arm, Cloud Silver, RH [Incl. 18,19]

1821261-385

Unavailable

16

WASHER, FLAT

7555820

$3.99

17

Cup, Mount, Trailing Arm

5132364

$20.22

18

Bearing, Spherical

7061042

$31.99

19

Ring, Retaining

7710437

$3.19

20

Screw

7512099

$19.99

21

BUSHING, FLANGE

3573909

$2.39

22

Fitting, Lubrication

7080433

$1.49

23

Bushing, Torsion Bar

5433814

$23.99

24

Rivet

7621452

$1.49

25

Bar, Torsion, Black

5246871-067

$66.99

26

Slide, Sway Bar

5412063

Unavailable

27

BUSHING, PIVOT

5010158

$19.99

28

Fitting, Lubrication, w/Ball

7080306

$3.19

29

Shaft, w/Steering Stop, Spindle, Black

6230225-067

$219.99

30

BUSHING, FLANGED

3574208

$3.19

31

Bushing

7556509

$1.59
