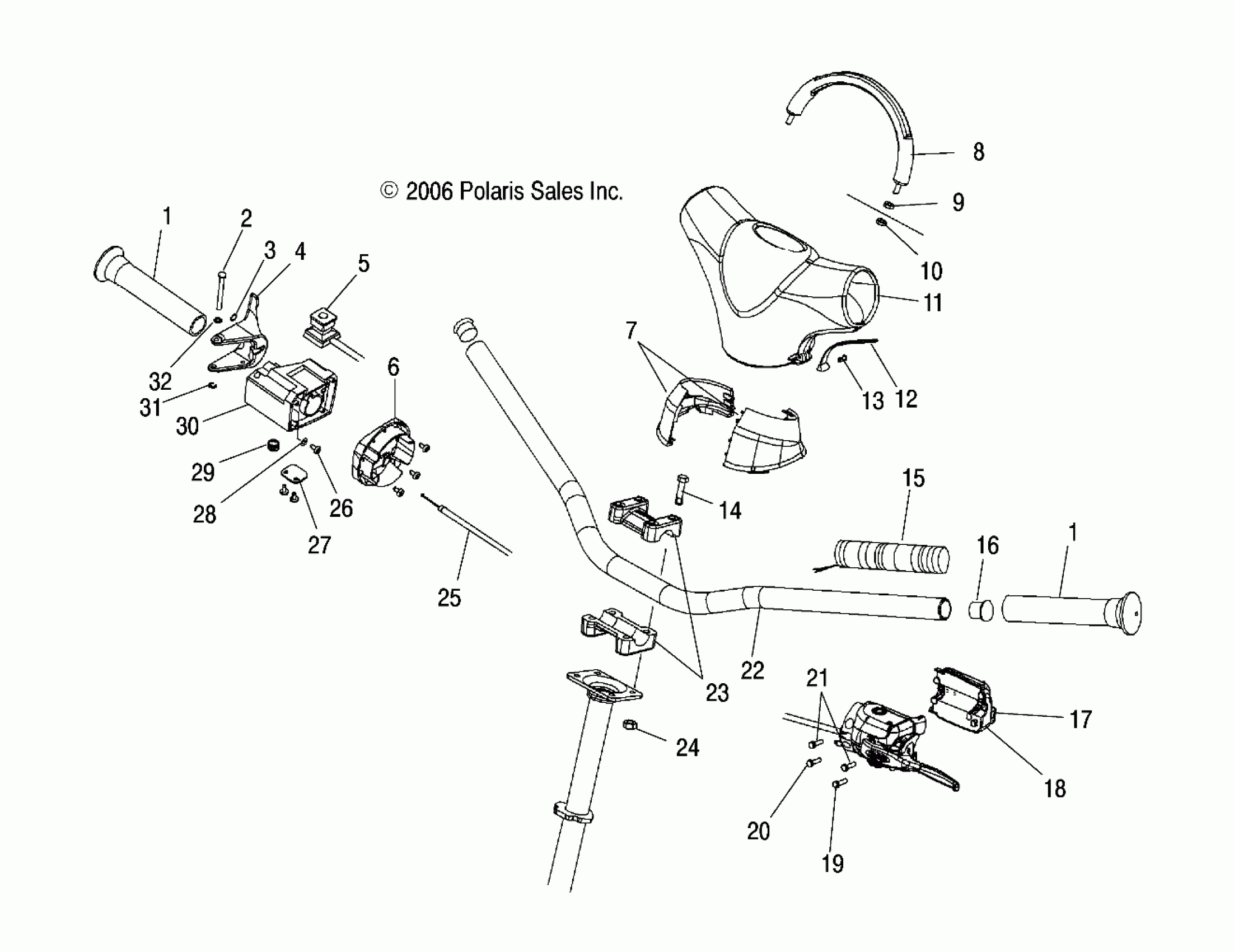

Polaris TRAIL RMK - S07NJ5BS/BE STEERING/HANDLEBAR - S07NJ5BS/BE (49SNOWHANDLEBARTRAILRMK) Diagram

#

Description
Price

1

Grip, Handlebar

5432634

$24.27

1

Grip, Handlebar

5432634

$24.27

2

PIN-RETAINING .186X1.780-AL

7661624

$12.79

3

RET.RING-INDUSTRIAL(2000-25)-Z

7710503

$3.99

4

LEVER, THROTTLE

5432970

$29.03

4

ASM., LEVER W/HEATER, HI/LO

2010171

$84.98

5

Switch, Auxiliary Shut-Off

4110106

$94.99

6

ADAPTOR, BLOCK, THROTTLE

5433345

$15.99

7

Collar, Console, LH

5434145

Unavailable

7

Collar, Console, RH

5434146

Unavailable

8

Bar, Mountain, Black

2683815-070

$76.89

9

Nut, Jam

7547107

$3.99

10

NUT, NYLOK

7542344

$3.99

11

Cover, Handlebar

5436565

$59.99

12

Slide, Handlebar Cover, Black

5433160-070

$28.32

13

Clip, Dart, Nylon, Black

4010287

$3.99

14

SCREW

7517238

$4.79

15

HEATER, GRIP, LO/MED/HI

2410812

$52.60

16

Plug

5431096

$2.02

17

Button, Switch, HI/LO, LH Control

5433291

Unavailable

18

Asm., Control, LH

2010206

Unavailable

19

SCREW, 1.50

7517566

$3.99

20

SCREW, 1.12

7512078

$1.49

21

SCREW, .75

7517441

$2.39

22

Handlebar, Black

1820666-067

$109.99

23

Block, Handlebar, Black

5630187-067

$44.99

24

Nut, Nylok

7542122

$1.49

25

Cable, Throttle

7081173

$109.99

26

Screw

7511848

$3.99

27

HOLDER, WIRE

5432261

$24.27

28

WASHER

7555727

$1.49

29

SCREW, SET

7512465

$3.99

30

BLOCK, THROTTLE/BRAKE

5431592

$49.99

31

RING-RETAINING EXTERNAL

7710401

$3.99

32

WASHER

7555730

$3.99
