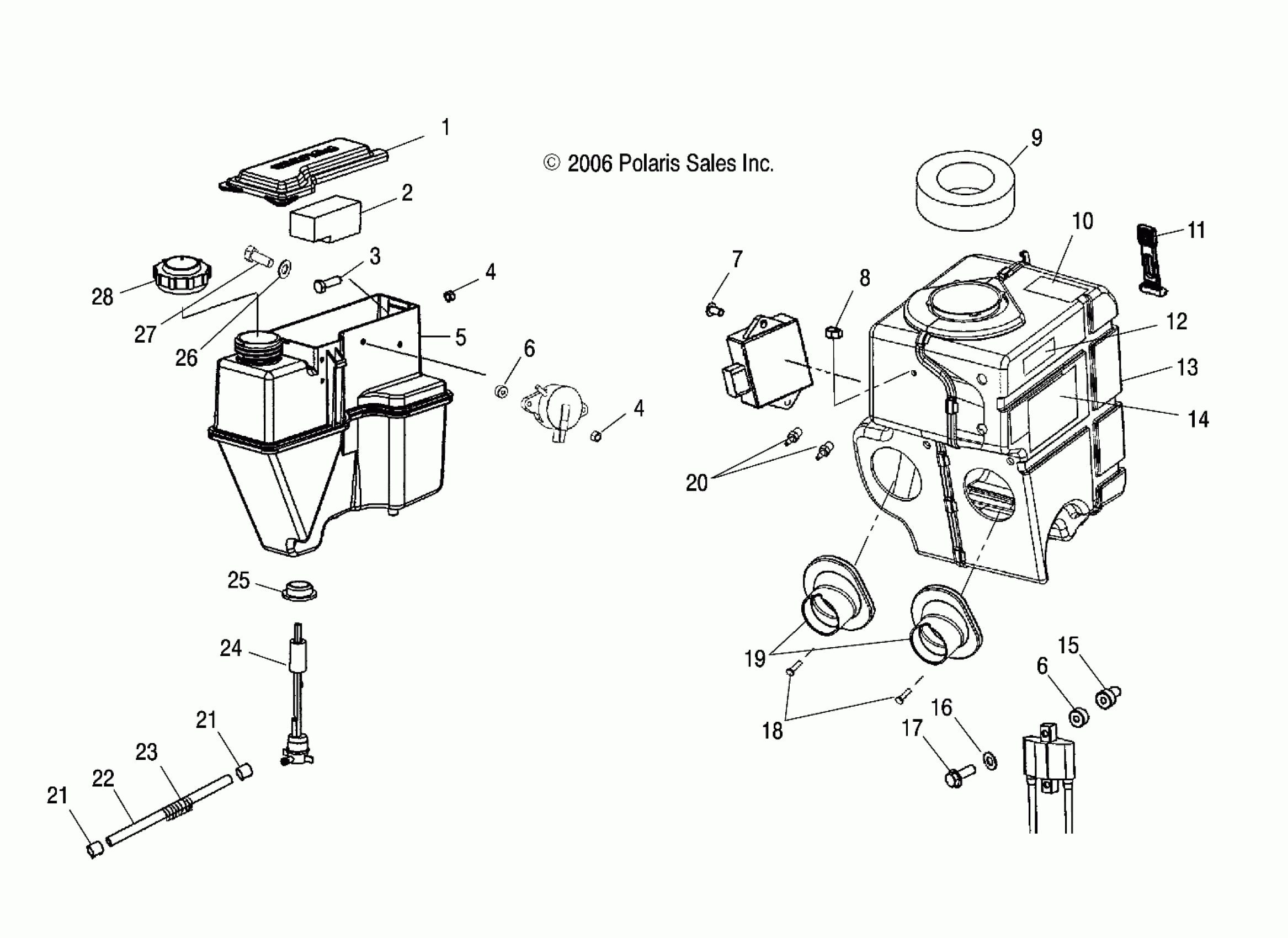

Polaris TRAIL RMK - S07NJ5BS/BE OIL TANK/AIRBOX - S07NJ5BS/BE (49SNOWOILTANKAIRBOXTRAILRMK) Diagram

#

Description
Price

1

Cover, Tool Box

5434089

$27.19

2

Foam

5812209

Unavailable

3

Screw

7512297

$5.59

4

Nut, Nylok

7542122

$1.49

4

Nut, Nylok

7542122

$1.49

5

Oil Bottle/Tool Box w/Mount

1261199

Unavailable

5

Asm., Oil Tank w/Sender [Incl. 1,24]

1253453

Unavailable

6

Washer, Nylon

7555932

$2.39

6

Washer, Nylon

7555932

$2.39

7

Screw

7512095

$4.79

8

Clip

7670102

$2.39

9

Foam

5811882

$20.22

10

Decal, Caution

7075351

Unavailable

11

STRAP-AIRBOX TOP

5433150

$24.27

12

Decal, Greasing

7073426

$7.27

13

Asm., Air Silencer w/ER

1253499

$130.79

14

Decal, Belt Removal, E/R

7171037

Unavailable

15

Nut, Well

7547103

$8.79

16

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

17

Screw [Incl. 19 & Decals]

7517610

$1.59

18

Screw

7511862

$6.99

19

Boot, Carburetor

5412189

Unavailable

20

Fitting, Hose

7052127

$3.19

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

21

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

22

Line, Fuel

8450003-1525

Unavailable

23

Conduit, Convoluted

4010051-30

Unavailable

24

Sender, Oil w/Front Terminals

4010660

$60.70

25

Grommet, Oil Sender

7052305

Unavailable

26

Washer, Flat

7555859

$1.49

27

Bolt

7512163

$3.99

28

Cap, Oil

1240094

$36.41
