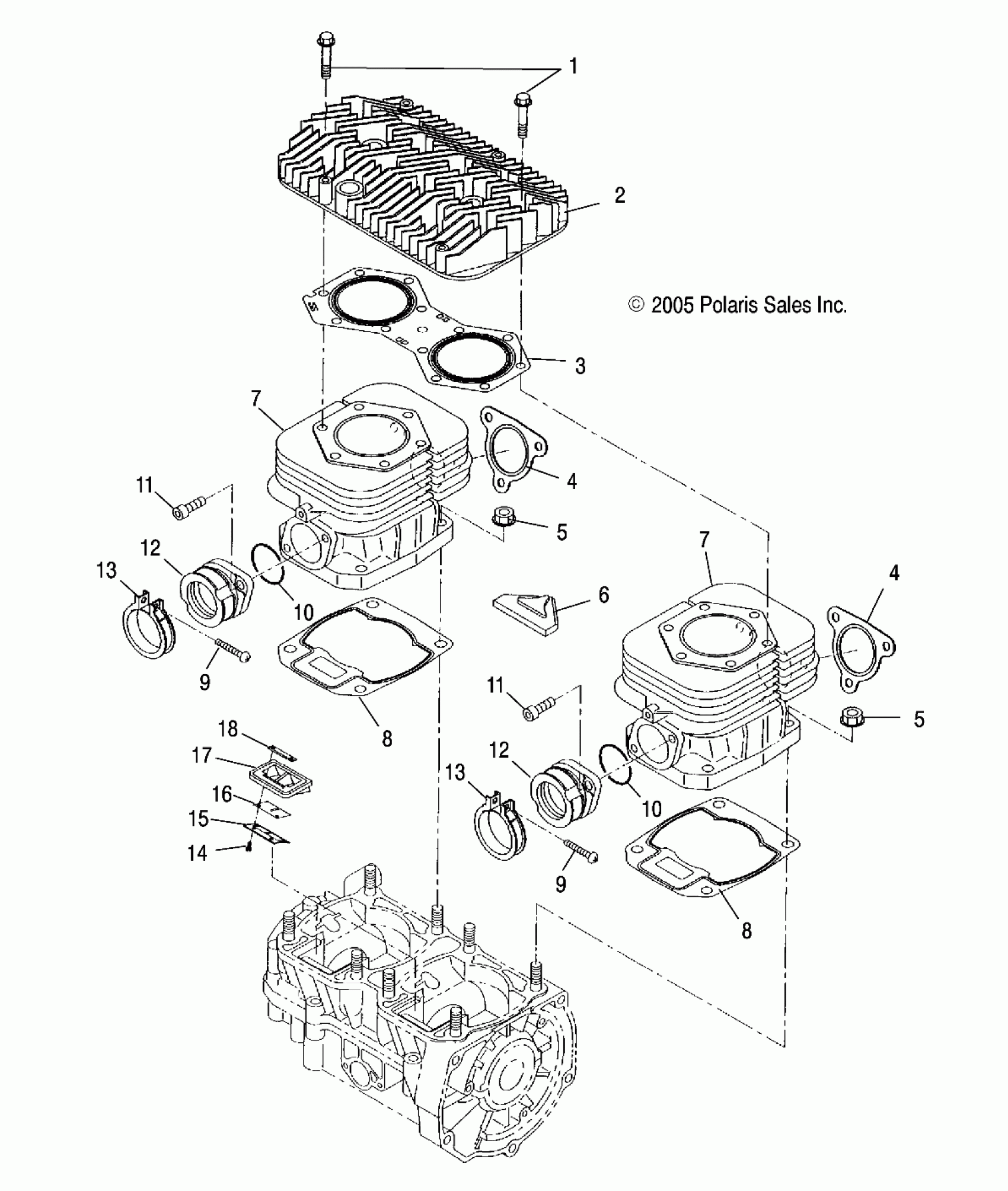

Polaris TRAIL RMK - S07NJ5BS/BE ENGINE, CYLINDER - S07NJ5BS/BE (4997279727C06) Diagram

#

Description
Price

1

BOLT, FLANGE

3084271

Unavailable

2

HEAD, CYLINDER

3088215

Unavailable

3

GASKET, HEAD

3085704

Unavailable

4

GASKET, EXHAUST

3085714

$29.99

4

GASKET, EXHAUST

3085714

$29.99

5

Nut, Flange

3082911

$1.99

5

Nut, Flange

3082911

$1.99

6

COVER, CYLINDER BAFFLE

3085692

$24.27

7

Cylinder, Complete

3089934

Unavailable

7

Cylinder, Complete

3089934

Unavailable

8

GASKET, CYLINDER

3085666

Unavailable

8

GASKET, CYLINDER

3085666

Unavailable

9

ASM., SCREW AND WASHER

3081497

$2.39

9

ASM., SCREW AND WASHER

3081497

$2.39

10

O-RING

3085619

$20.22

10

O-RING

3085619

$20.22

11

BOLT, SOCKET HEAD

3081330

$3.99

11

BOLT, SOCKET HEAD

3081330

$3.99

12

ASM., ADAPTOR [INCL. 10]

3085670

Unavailable

12

ASM., ADAPTOR [INCL. 10]

3085670

Unavailable

13

ASM., BAND, ADAPTOR [INCL. 9]

3083166

$19.84

13

ASM., BAND, ADAPTOR [INCL. 9]

3083166

$19.84

14

ASM., SCREW AND WASHER

3085717

$4.75

15

STOPPER

3086387

$12.94

16

VALVE, REED

3085715

$8.89

17

ASM., REED VALVE [INCL. 14-18]

3086386

$60.70

18

PLATE

3085718

Unavailable
