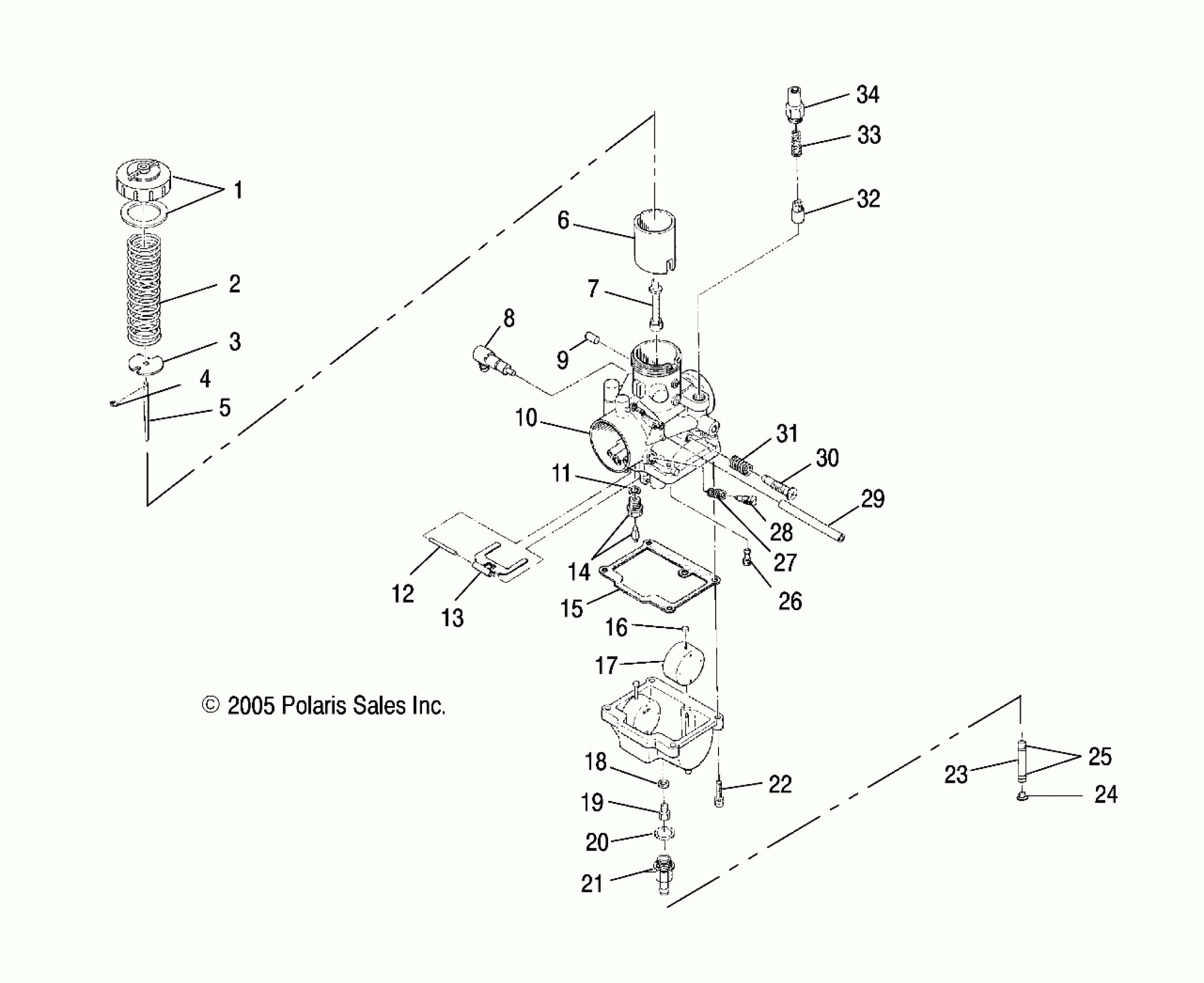

Polaris TRAIL RMK - S07NJ5BS/BE ENGINE, CARBURETOR - S07NJ5BS/BE (4997239723C14) Diagram

#

Description
Price

1

ASM., TOP, MIXING CHAMBER

3130184

$32.37

2

SPRING, THROTTLE

3130439

$13.59

3

Plate, Throttle

3130027

$9.70

4

E-RING

3130508

$6.46

5

Needle, Jet, 6BGY-41

3131592

$6.39

6

VALVE, THROTTLE, 3.0

3130372

$52.60

7

JET, NEEDLE, Q-O, 480

3130964

$54.99

8

ASM., VALVE, CHECK

3086785

$52.60

9

CAP

3130479

$14.56

10

Asm., Carburetor [Incl. 1-22]

3131634

$329.37

11

Packing, Needle Valve

3130017

$4.03

12

PIN, FLOAT

3130361

$8.89

13

Arm, Float

3130018

$24.27

14

NEEDLE VALVE, 1.5

3131146

$48.56

15

Gasket, Float Chamber

3130020

$16.17

16

Cap

3130237

$4.03

17

Asm., Float

3130430

$43.56

18

WASHER

3130014

$1.59

19

Main Jet, #210

3130124

$7.27

20

O-RING

3130239

Unavailable

21

NIPPLE

3130573

$32.37

22

Asm., Screw and Washer

3130025

$3.19

23

Line, Fuel

8350017-600

Unavailable

24

Plug, Trap

5431893

$12.94

25

HOSE CLAMP, RED

7080003

$1.49

26

Pilot Jet, #35

3130066

$8.89

27

Spring, Air Adjust

3130012

$8.89

28

Screw, Air

3130011

$19.99

29

Hose

3131288

$10.71

30

SCREW, THROTTLE STOP

3130437

Unavailable

31

SPRING, THROTTLE ADJUSTER

3130010

$8.89

32

Asm., Plunger

3130328

$32.37

33

Spring, Plunger

3130006

$8.89

34

Holder, Guide

3130199

$28.32
