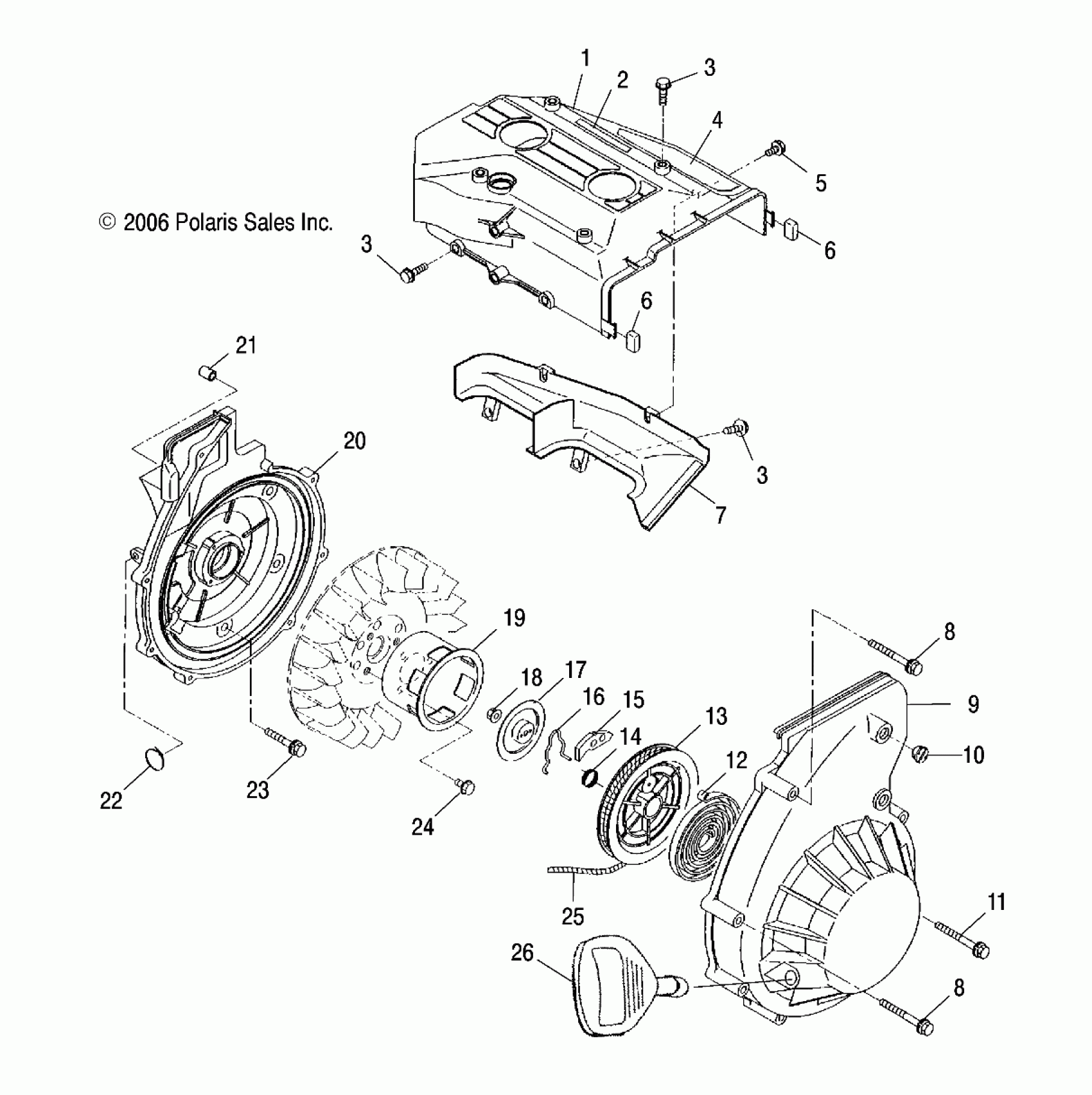

Polaris TRAIL RMK - S07NJ5BS/BE ENGINE BLOWER HOUSING and RECOIL STARTER - S07NJ5BS/BE (49SNOWBLOWERSUPER) Diagram

#

Description
Price

1

Asm., Baffle, Cylinder, 1

3086991

$119.99

2

Decal, "POLARIS", Engine Shroud

7079511

Unavailable

3

Bolt, Flange

3084566

$3.19

3

Bolt, Flange

3084566

$3.19

3

Bolt, Flange

3084566

$3.19

4

Decal, "550", Engine Shroud

7079510

Unavailable

5

Bolt, Flange

3085693

$2.39

6

CAP, CYLINDER BAFFLE

3085690

$9.70

6

CAP, CYLINDER BAFFLE

3085690

$9.70

7

CYLINDER, BAFFLE 2

3085691

Unavailable

8

Asm., Bolt and Washer

3083550

Unavailable

8

Asm., Bolt and Washer

3083550

Unavailable

9

Case, Starter

3087180

$242.84

9

Asm., Starter, Recoil [Incl. 12-18,25]

3087206

Unavailable

10

Plug, Rubber

3086792

$24.27

11

Asm., Bolt and Washer

3082030

$3.97

12

Spring, Spiral

3083376

$179.11

13

Asm., Reel

3083377

$56.65

14

Spring, Return

3083463

$4.03

15

Ratchet

3087207

$11.99

16

Spring, Friction

3083379

$24.27

17

Plate, Friction

3083464

$28.32

18

Nut, Flange

3083381

$2.99

19

Pulley, Starting

3087181

$36.41

20

Housing, Blower

3087020

$178.08

21

Pin, Straight

3084857

Unavailable

22

Band, Wire

3084823

$12.79

23

Asm., Bolt and Washer

3084225

$3.99

24

Asm., Bolt and Washer

3085688

$2.99

25

ROPE, STARTER [100 FT.]

2870621

Unavailable

26

Handle, Recoil, Black

5431499-070

$15.48
