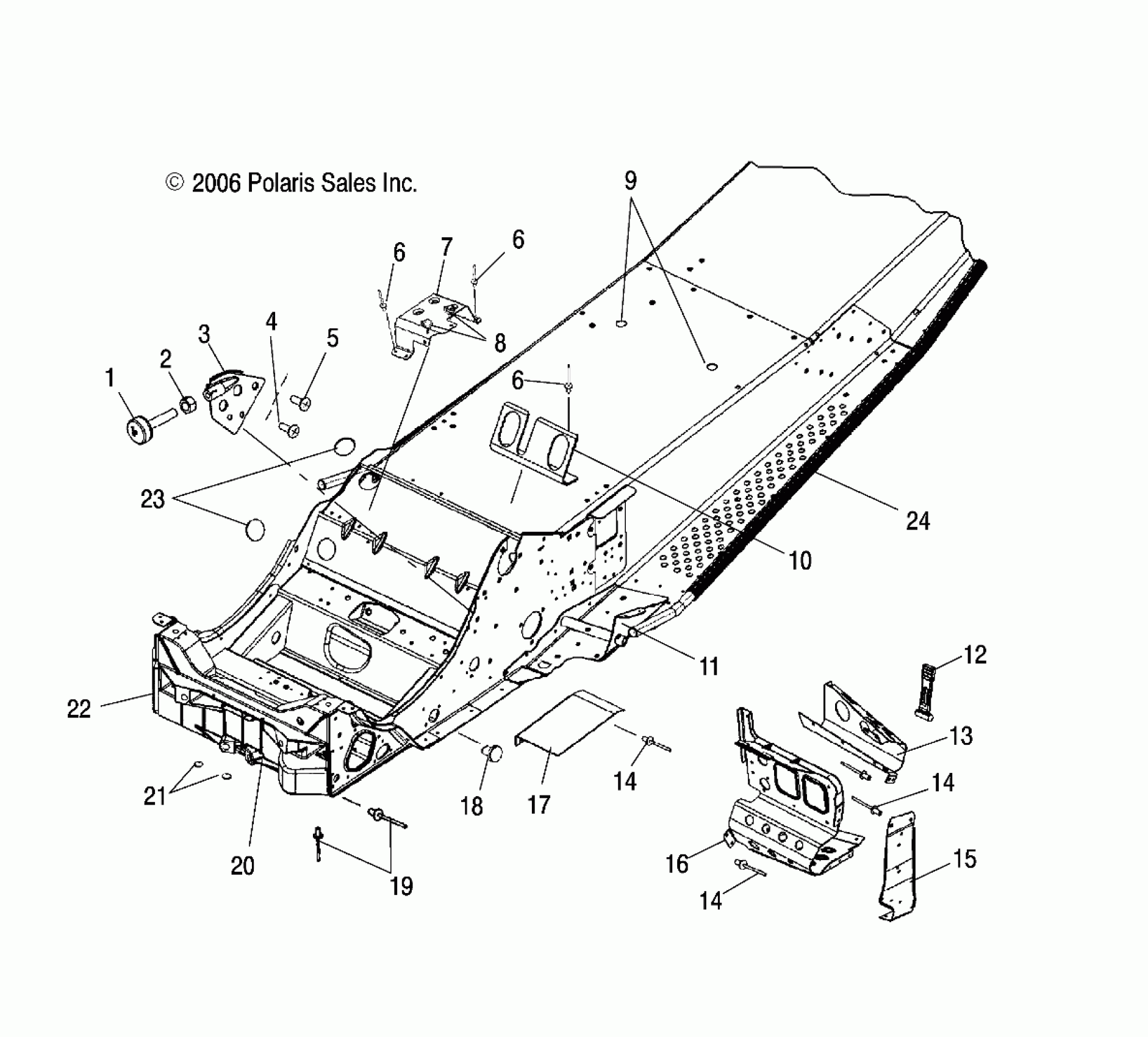

Polaris TRAIL RMK - S07NJ5BS/BE CHASSIS - S07NJ5BS/BE (49SNOWCHASSISFRTTRAILRMK) Diagram

#

Description
Price

1

Stop, Torque

3021104

$20.22

2

NUT

7542404

$1.59

3

Stop, Torque

1013399

$27.19

4

Screw

7517854

$5.59

5

SCREW

7517632

$5.59

6

Rivet

7621432

$1.49

6

Rivet

7621432

$1.49

6

Rivet

7621432

$1.49

7

Bracket, Oil Bottle

5245202

$17.43

8

CLIP, ROSEBUD

4020139

$4.79

9

Plug, Cap

7080592

Unavailable

10

Bracket, Air Box

5246177

$18.23

11

Kit, Trailing Arm Mount, LH

2202059

$213.00

11

Kit, Trailing Arm Mount, RH

2202598

$124.99

12

STRAP-AIRBOX TOP

5433150

$24.27

13

Mount, Console, Toe Clip, LH

5245457

Unavailable

13

Mount, Console, Toe Clip, RH

5245458

Unavailable

14

RIVET-3/16-.090-.290

7661637

Unavailable

14

RIVET-3/16-.090-.290

7661637

Unavailable

14

RIVET-3/16-.090-.290

7661637

Unavailable

15

Support, Footrest, LH

5246310

$19.83

15

Support, Footrest, RH

5246311

$32.37

16

Footrest, LH

5245288

Unavailable

16

Footrest, RH

5247205

Unavailable

17

Guard, Belt

5246066

Unavailable

18

PLUG, HOLE

7080416

$5.65

19

Rivet

7661130

$1.49

20

Bulkhead, Front

5132292

$115.99

21

Plug, Hole

7081076

$3.22

22

Asm., Chassis, Natural

1014238-309

$1,143.99

23

Caplug

7080934

$1.83

24

Gripper, Fan, LH

1240157

$103.19

24

Gripper, Fan, RH

1240158

$103.19
