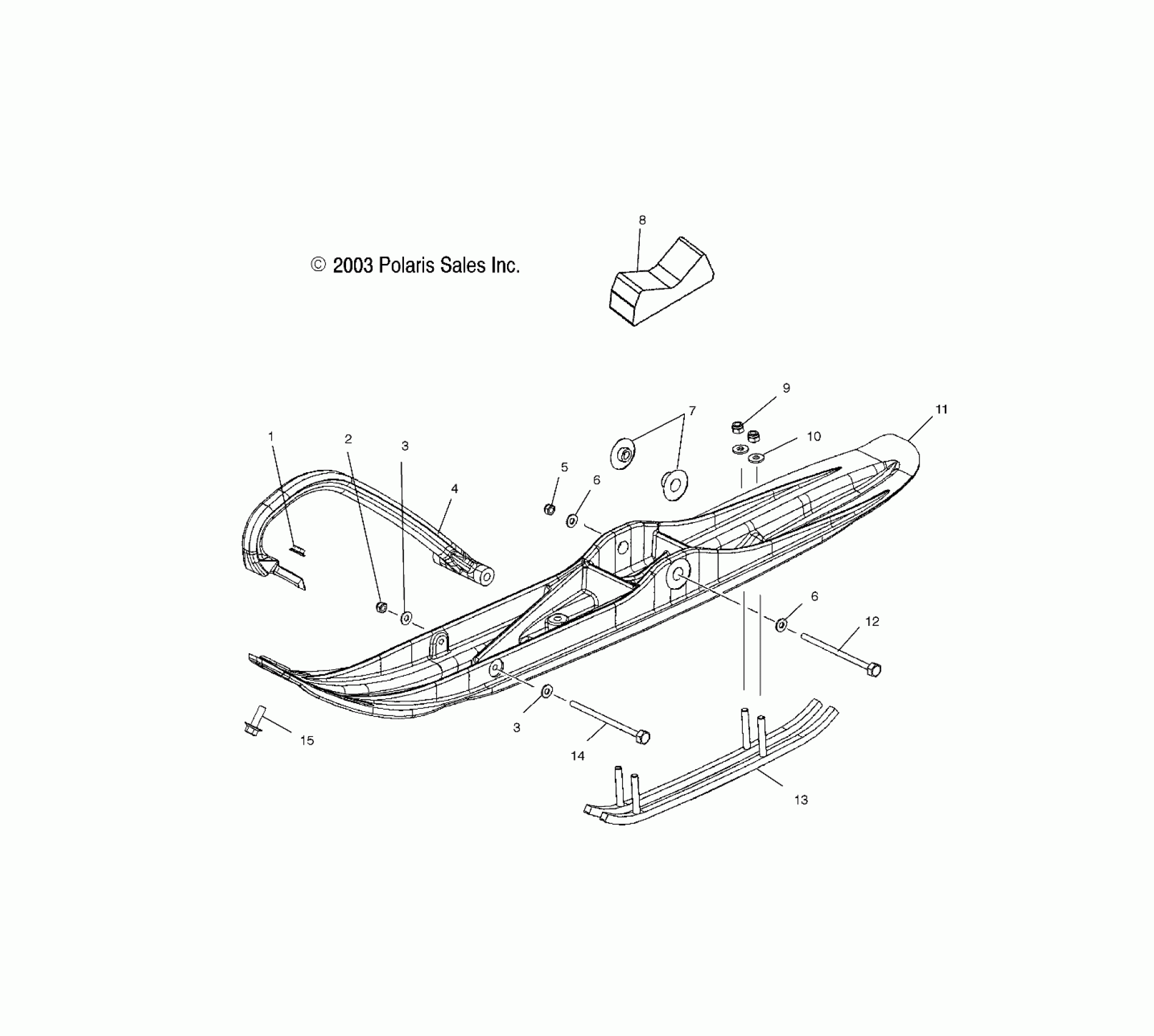

Polaris TRAIL RMK - S04NJ5BS/A SKI - S04NJ5BS/A (4988558855B03) Diagram

#

Description
Price

1

Nut, Flange

7542321

$1.49

2

Nut, Nylok

7542122

$1.49

3

Washer, Flat

7558301

$1.49

3

Washer, Flat

7558301

$1.49

4

Toe, Ski, Plastic, Red

5434618-293

Unavailable

5

Nut, Nylok

7542439

$1.49

6

WASHER, BELLE

7556130

$6.39

6

WASHER, BELLE

7556130

$6.39

7

Bushing, Plastic Ski

5132637

$19.99

8

Stop, Ski, Rubber

5412018

$24.27

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

11

Asm., Ski, LH [Incl. 7]

1821335-070

Unavailable

11

Asm., Ski, RH [Incl. 7]

1821336-070

$214.51

12

Screw

7517968

$9.59

13

Kit, Skag, Carbide, 4-Inch, 60 Degree

2874334

$74.99

14

BOLT

7518047

$5.59

15

SCREW

7518070

$5.59
