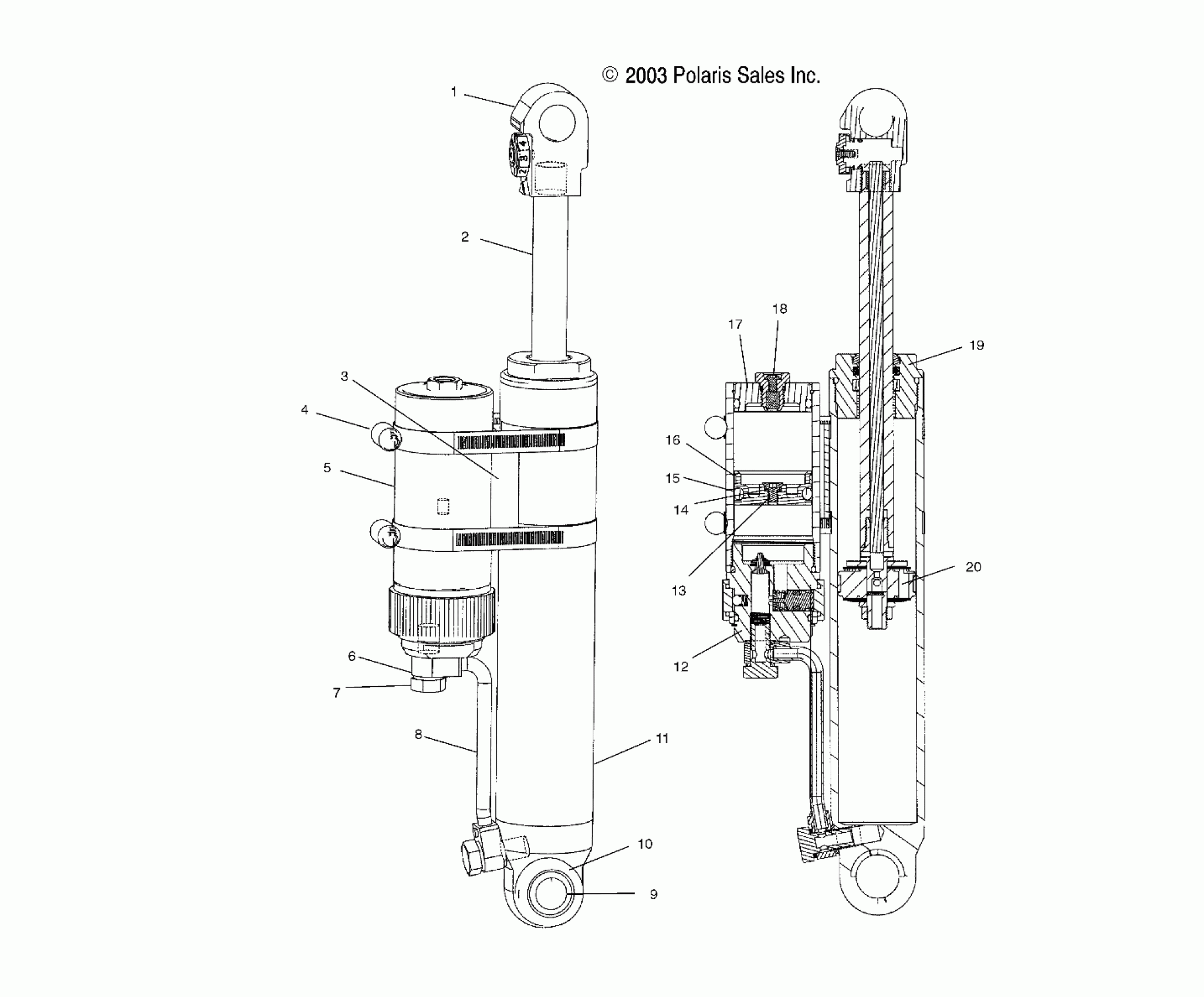

Polaris TRAIL RMK - S04NJ5BS/A SHOCK (REAR TRACK) - S04NJ5BS/A (4988558855C08) Diagram

#

Description
Price

-

Shock, Rear Track

7042145

Unavailable

1

Asm., Mount, Upper

1700195

$164.99

2

Shaft

1700196

Unavailable

3

Isolator

1700162

Unavailable

4

Clamp, Hose

1700197

$21.19

5

Body, Reservoir

1700198

$58.39

6

Washer, Copper

1700201

Unavailable

7

Bolt, Banjo

1700200

Unavailable

8

Hose, Pressure

1700202

$78.39

9

Sleeve

1700069

$15.99

10

Bushing

1700073

$11.99

11

Body

1700199

$142.84

12

Asm., Valve Body

1700205

$112.37

13

IFP, Screw, Bleed

1700054

$6.19

14

Screw, Bleed, O-Ring

1700016

$7.99

15

O-Ring, IFP

1700204

Unavailable

16

IFP

1700203

$45.59

17

End Cap, Reservoir w/Valve

1700164

$59.03

17

Cap, End, Reservoir

1700217

$29.99

18

Valve, Pressure w/Screw

1700218

$37.62

18

Adapter, Male

1700065

$27.83

19

O-Ring, Cylinder Head

1700051

Unavailable

19

Scraper, Rod

1700019

$27.79

19

O-Ring, Cylinder Head

1700046

Unavailable

19

Seal, Rod

1700020

$27.79

19

Asm., Cylinder Head

1700206

$216.17

20

Washer, Back Up

1700078

$9.59

20

Band, Wear, Piston

1700031

$28.32

20

Washer, Top Out

1700077

$10.39

20

Piston, High Flow

1700207

$31.90
