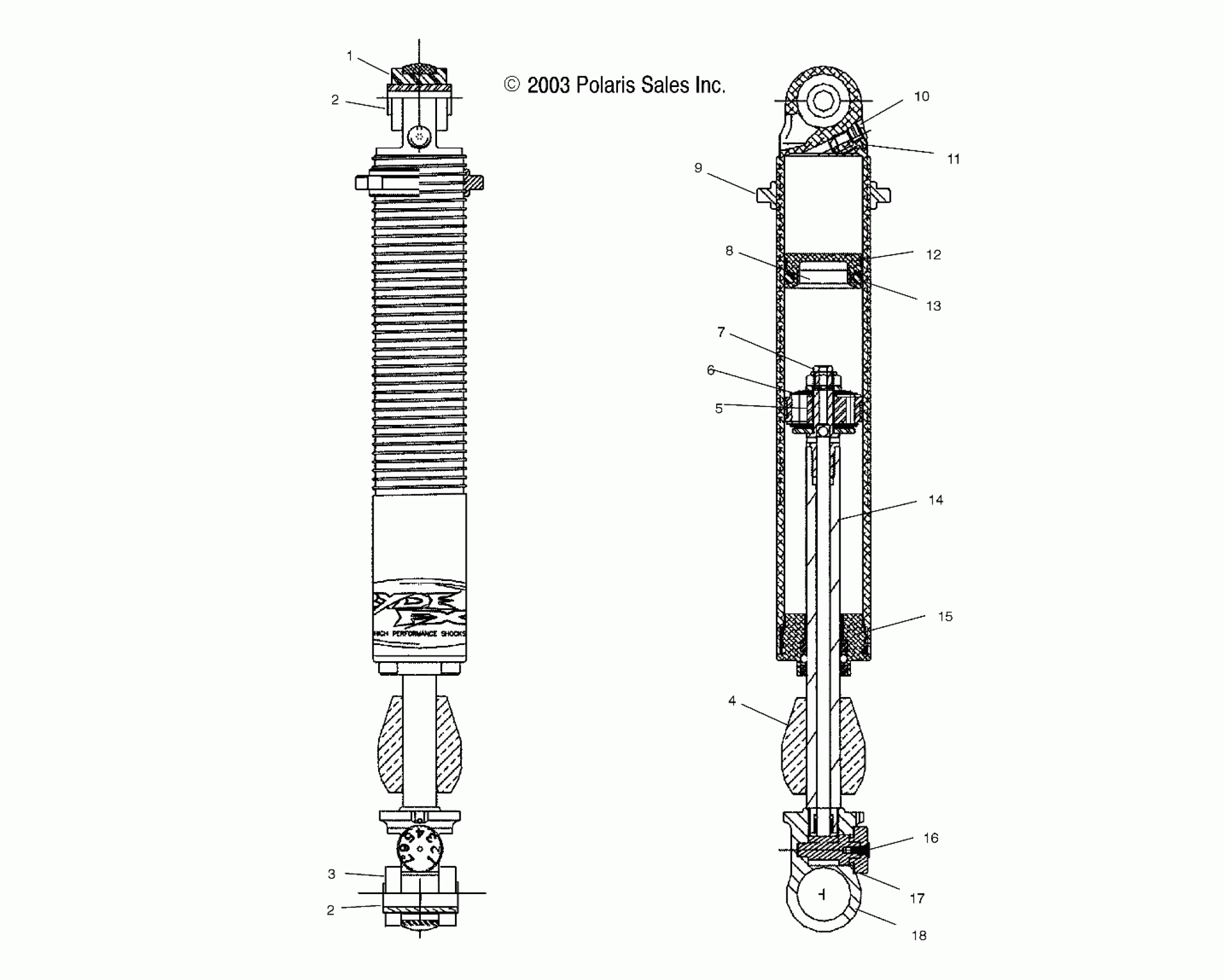

Polaris TRAIL RMK - S04NJ5BS/A SHOCK IFS - S04NJ5BS/A (4988558855C06) Diagram

#

Description
Price

-

Shock, IFS

7042249

$214.99

1

Bushing

1700036

$7.99

2

Sleeve

1700037

Unavailable

2

Sleeve

1700037

Unavailable

3

Bushing

1700072

$9.59

4

Bumper, Compression

1700042

Unavailable

5

Washer, Back-Up

1700078

$9.59

5

Band, Piston, Wear

1700031

$28.32

5

Washer, Top-Out

1700077

$10.39

5

Piston, Banded

1700109

Unavailable

6

Kit, Piston Valving

2200618

Unavailable

7

Nut

1700057

$9.59

8

IFP

1700023

$45.59

9

Nut, Spring Retainer

1700210

$41.19

10

Screw, Valve

1700056

$6.94

11

Asm., Pressure Valve

1700184

Unavailable

12

Band, Wear, IFP

1700032

$24.99

13

O-Ring, IFP

1700048

$11.60

14

Shaft

1700223

Unavailable

15

O-Ring, External

1700051

Unavailable

15

Scraper, Rod

1700019

$27.79

15

O-Ring, Internal

1700046

Unavailable

15

Seal, Rod

1700020

$27.79

15

Asm., Cylinder Head

1700206

$216.17

15

BEARING, DU

-------

Unavailable

16

Screw

1700192

$10.63

17

Knob

1700193

$58.39

18

Asm., Upper Mount [Incl. 16,17]

1700208

Unavailable
