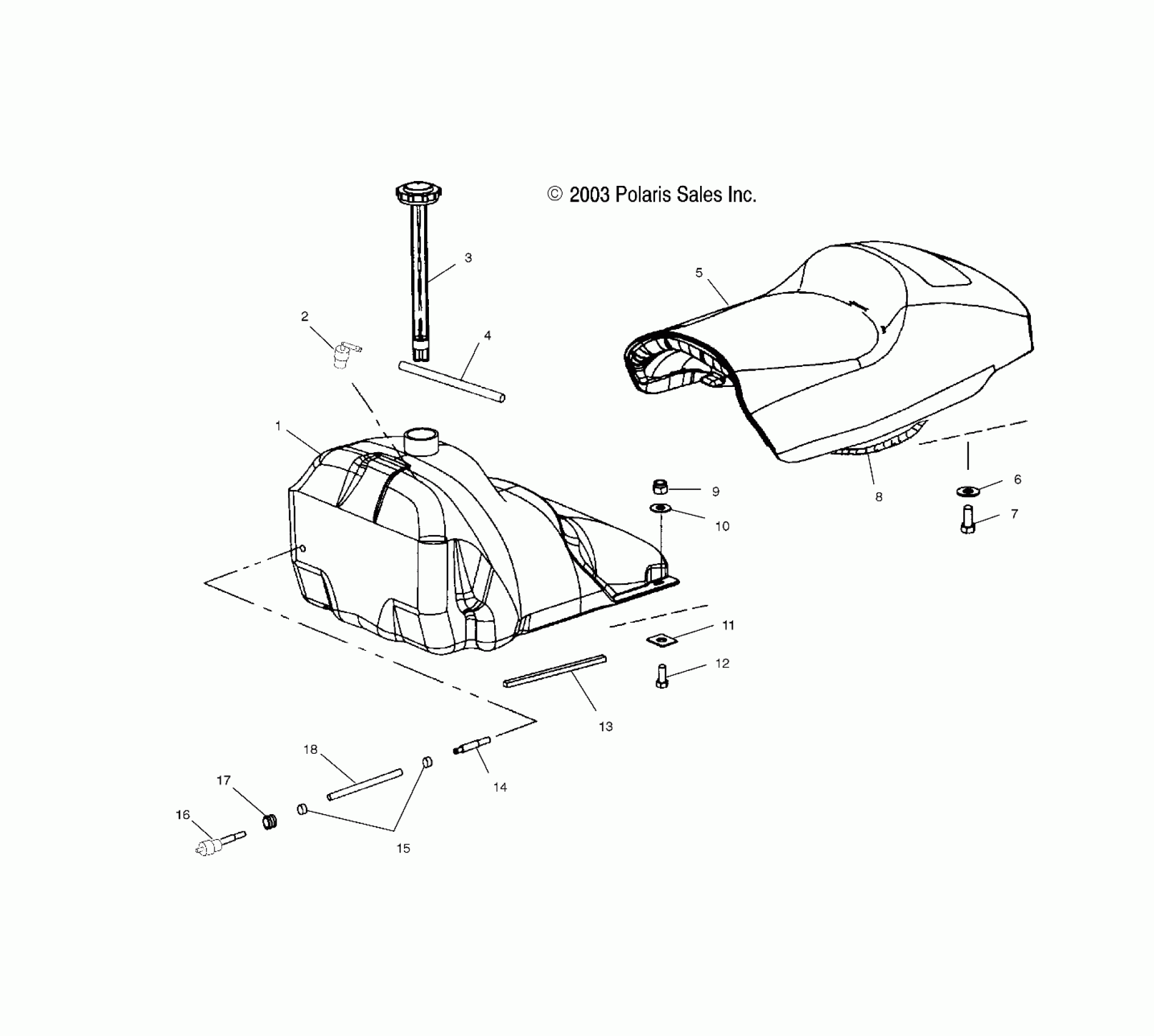

Polaris TRAIL RMK - S04NJ5BS/A SEAT and GAS TANK - S04NJ5BS/A (4988558855A05) Diagram

#

Description
Price

1

Asm., Fuel Tank

2520276

Unavailable

2

Fitting, 90 Degree

7052095

$4.79

3

Cap w/Gauge, Fuel

2520323

Unavailable

4

LINE, FUEL

8450061-600

Unavailable

5

Asm., Seat, Edge, RMK [Incl. 5,8]

2683264

Unavailable

5

Asm., Seat Cover, Edge, RMK

2683265

$344.99

5

Asm., Seat, RMK, Vert. Esc [Incl. 5,8]

2683270

Unavailable

5

Asm., Seat Cover, RMK, Vert. Esc.

2683271

Unavailable

6

Washer, Flat

7558301

$1.49

7

SCREW

7517219

$4.79

8

Harness, Taillight, Seat

2461064

$59.03

9

Nut, Nylok

7542122

$1.49

10

WASHER, FLAT

7555960

$3.99

11

Nut, Speed

7670021

$6.99

12

BOLT, CARRIAGE

7512193

$2.39

13

FOAM-SEAL,REAR COOLER

5810947

$4.03

14

Pickup w/Filter, Fuel

7052301

$12.94

15

RING, COMPRESSION

7080402

$1.60

16

Fitting

7052321

$8.79

17

Grommet

7052028

$6.39

18

LINE, FUEL

8350019-600

Unavailable
