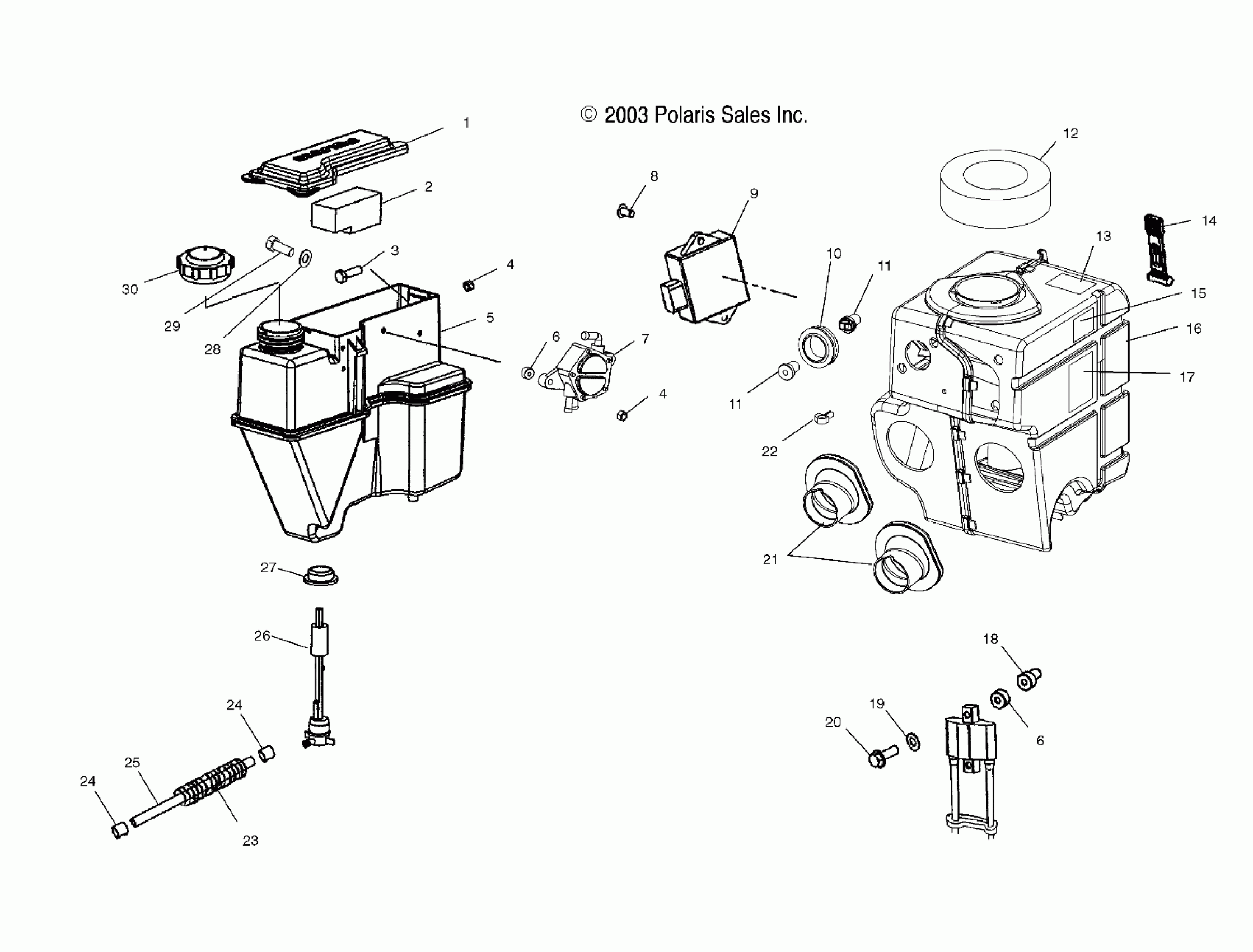

Polaris TRAIL RMK - S04NJ5BS/A OIL TANK/AIRBOX - S04NJ5BS/A (4988558855C04) Diagram

#

Description
Price

1

Cover, Tool Box

5434089

$27.19

2

Foam, Tool Box

5812209

Unavailable

3

Screw

7512297

$5.59

4

Nut, Nylok

7542122

$1.49

4

Nut, Nylok

7542122

$1.49

5

Oil Bottle/Tool Box w/Mnt

1261199

Unavailable

5

Asm., Oil Tank w/Sender [Incl. 1,26]

1253453

Unavailable

6

Washer, Nylon

7555932

$2.39

6

Washer, Nylon

7555932

$2.39

7

ASM., FUEL PUMP [SEE FUEL PUMP PG. D1, REF. 3]

-------

Unavailable

8

Screw

7512095

$4.79

9

SYSTEM, CDI [SEE MAGNETO PG. D3, REF. 10]

-------

Unavailable

10

Grommet, ACCS

5410982

$5.03

11

Nut, Well

7541923

$5.59

11

Nut, Well

7541923

$5.59

12

Foam, Air Box, Chimney

5811882

$20.22

13

Decal, Caution, Air Box

7075351

Unavailable

14

STRAP-AIRBOX TOP

5433150

$24.27

15

Decal, Greasing

7073426

$7.27

16

Asm., Air Silencer w/ER [Incl. 21 & Decals]

1253517

$103.19

17

Decal, Belt Removal, Team, E/R

7171037

Unavailable

18

NUT

7547103

$8.79

19

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

20

Screw

7517610

$1.59

21

Boot, Carburetor

5412189

Unavailable

22

CLIP, SILENCER BOX

7670102

$2.39

23

Tubing, Convoluted

4010051-30

Unavailable

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

25

Line, Fuel

8450003-1525

Unavailable

26

Sender, Oil w/Front Terminals

4010660

$60.70

27

Grommet, Oil Sender

7052305

$4.84

28

Washer, Flat

7555859

$1.49

29

Bolt

7512163

$3.99

30

Cap, Oil, Vented

1240094

$36.41
