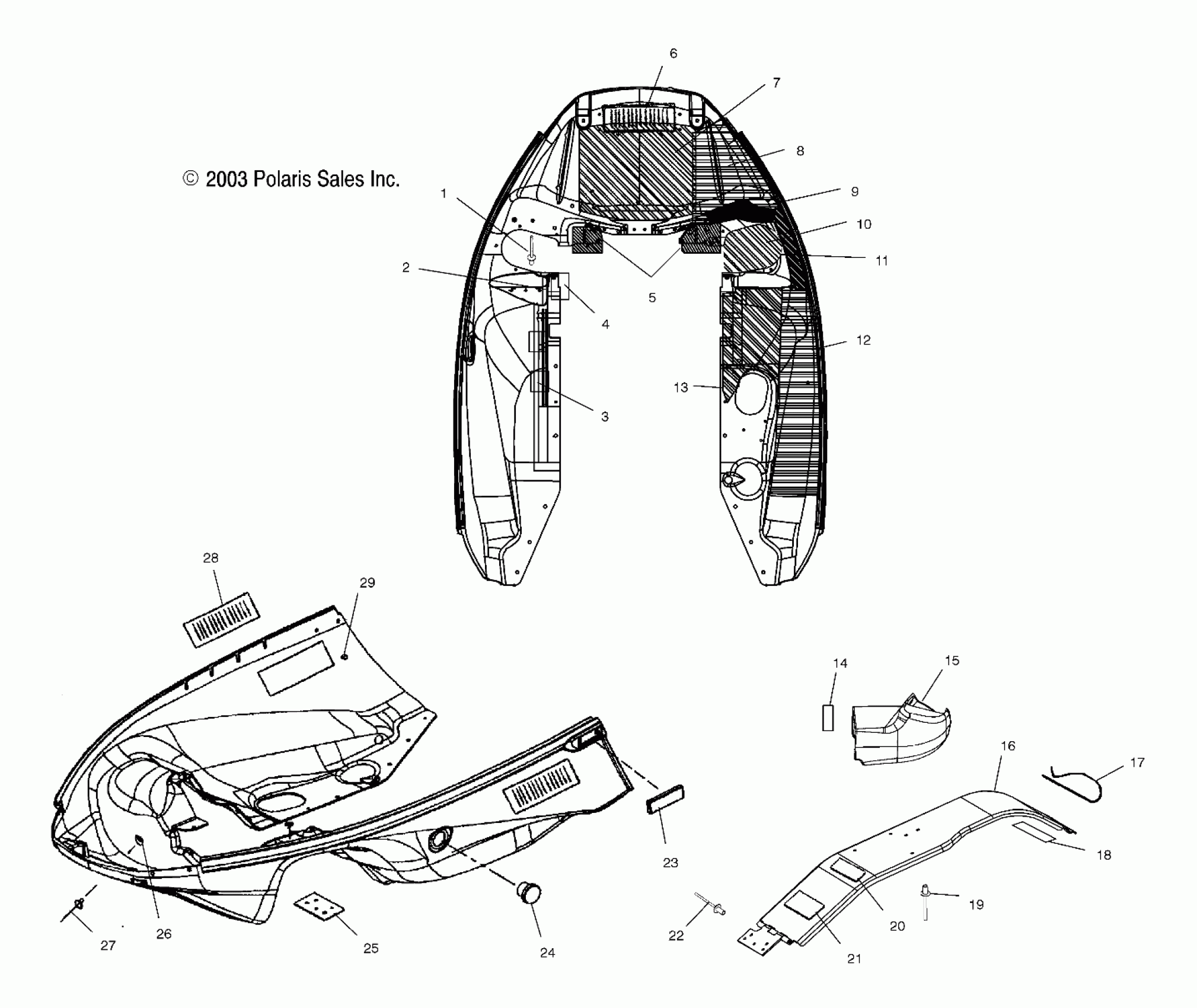

Polaris TRAIL RMK - S04NJ5BS/A NOSEPAN - S04NJ5BS/A (4988558855A07) Diagram

#

Description
Price

1

RIVET

7621435

$1.49

2

J-Clip, Retainer

7080963

$2.39

3

Clip, Speed, U-Type

7670130

Unavailable

4

Foil

5811948

Unavailable

5

Foil, Tape, Nosepan

5812020

$3.99

6

Screen, Pan, Front

5247535-067

Unavailable

7

Foil, Tape

5811458

$15.99

8

Foil, Nosepan, Front

5812040

Unavailable

9

Foil, Tape, Top, Shock

5812067

Unavailable

10

Foil, Shock Tower Cover

5812271

$4.95

11

Foil, Tape

5812068

Unavailable

12

Foil, Tape, Nosepan, Upper, RH

5812018

$20.22

13

Foil, Tape, Nosepan, Lower, RH

5812019

$12.94

14

Foam

5812353

$4.15

15

Duct, Engine Air Outlet

5434531

Unavailable

16

Asm., Guard, Clutch

1013069

$102.38

17

Pin, Clutch Guard

7080698

$9.70

18

Pad, Clutch Guard

5812352

Unavailable

19

RIVET

7621485

$1.49

20

DECAL-WARNING,ENGINE & CLUTCH

7079297

Unavailable

21

Decal, Troubleshooting, Vertical Escape

7171313

Unavailable

22

Rivet

7621402

$1.49

23

ASM., REFLECTOR, AMBER

2670134

$9.70

24

Plug, Hole, Oblong

5433926

$4.03

25

Plate, Backer, Clutch Guard

5211722

$10.51

26

Burr

7555904

$1.49

27

Rivet

7621433

$1.49

28

Grill

5430958-070

$36.41

29

Nut, Push-On

7670009

$2.39
