Description

Price

1

Nut, Nylok

7541925

$1.49

2

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

3

Regulator [Electric Start]

4010794

$116.17

3

Regulator [Manual Start]

4010793

$101.17

4

Screw [Manual Start]

7512031

$2.23

4

Screw [Electric Start]

7517263

Unavailable

5

Housing, Connector

4010193

$8.79

6

Socket

4010192

Unavailable

7

Terminal, Ring

4020092

Unavailable

8

HOUSING

4020063

$3.19

9

Harness, Main

2461148

$257.99

10

Housing

4020057

$3.51

11

Screw

7515199

$1.49

11

Screw

7515199

$1.49

12

Console

5435269

Unavailable

13

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

14

Nut, Ignition

7547035

$8.79

15

Kit, Ignition Switch

2200358

$76.89

16

CLIP-PLASTIC DART, NYLON

7670088

$1.59

17

Kit, Choke Control [Incl. Pin]

2200188

$24.27

18

Washer

7571610

$3.99

19

Cable, Choke Control [Incl. 20,17]

7080290

$105.22

20

Nut, Choke, Slide

7080229

$19.99

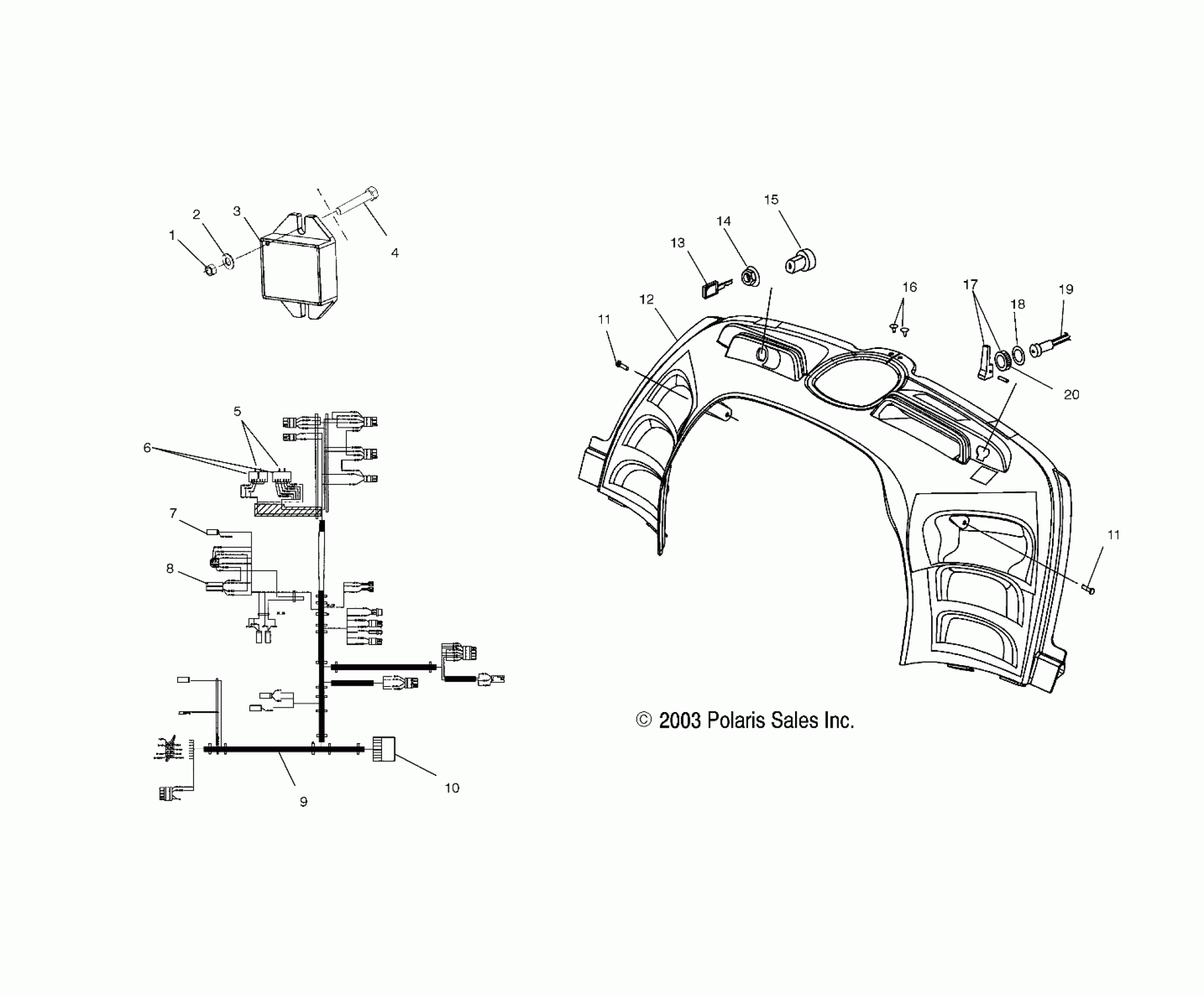

Polaris TRAIL RMK - S04NJ5BS/A CONSOLE - S04NJ5BS/A (4988558855A13) Diagram

Nut, Nylok

WSHR-.194X.475X.049 ZTB

Regulator [Electric Start]

Regulator [Manual Start]

Screw [Manual Start]

Screw [Electric Start]

Housing, Connector

Socket

Terminal, Ring

HOUSING

Harness, Main

Housing

Screw

Screw

Console

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

Nut, Ignition

Kit, Ignition Switch

CLIP-PLASTIC DART, NYLON

Kit, Choke Control [Incl. Pin]

Washer

Cable, Choke Control [Incl. 20,17]

Nut, Choke, Slide
