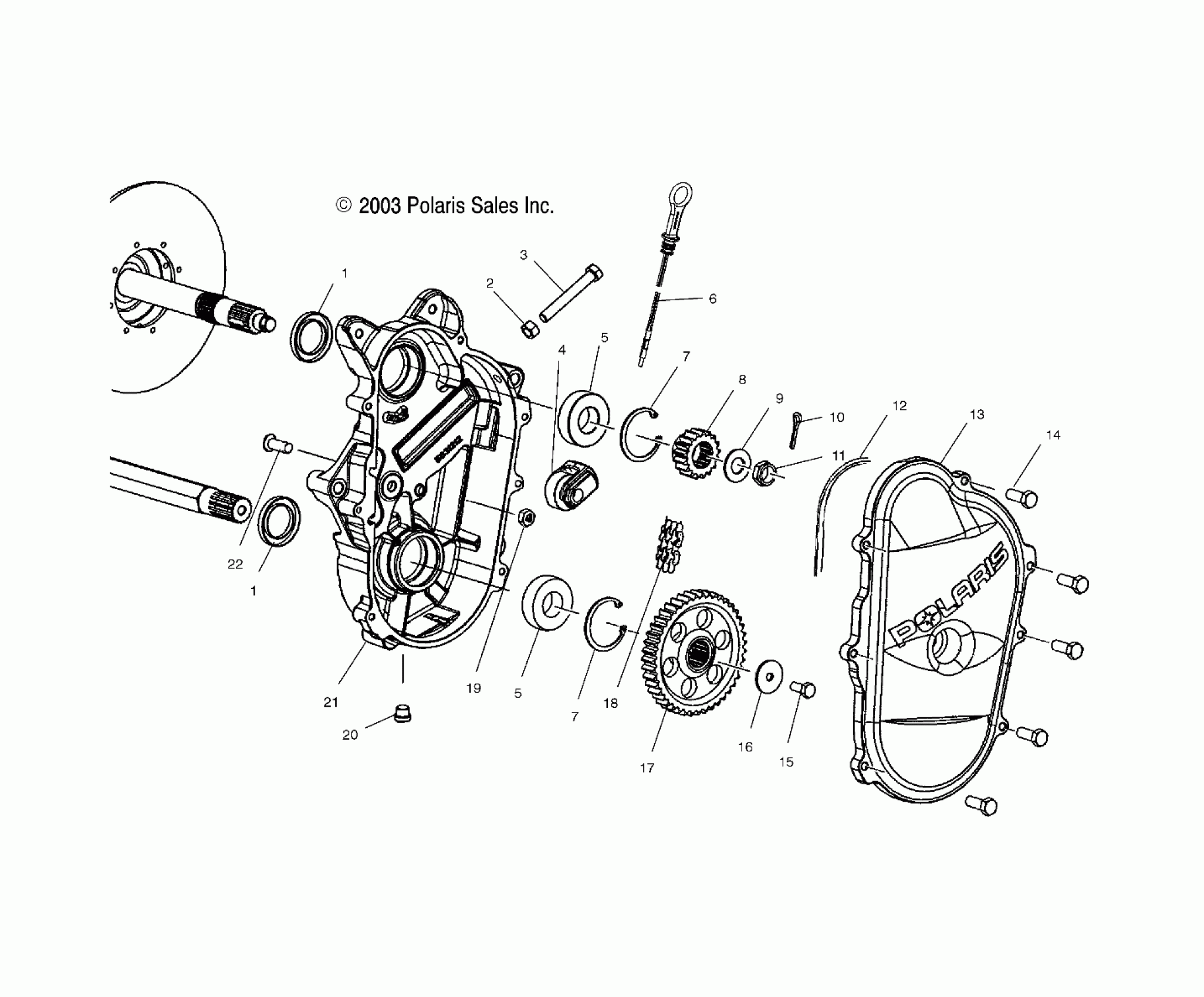

Polaris TRAIL RMK - S04NJ5BS/A CHAINCASE - S04NJ5BS/A (4988558855B12) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Bearing, Chaincase Idler

3553002

$11.99

4

Wheel, Idler

5630123

Unavailable

4

WASHER, THRUST

7558702

$1.59

4

ASM., TIGHTENER, SLIDING

1332266

$74.99

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

Asm., Dipstick [Incl. O-Ring]

1332143

$54.99

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

Sprocket, 17T, 3/4W

3221093

$44.99

9

Washer, Spring

7571620

$7.19

10

Pin, Cotter

7661203

$1.49

11

Nut

7547202

$5.59

12

Gasket, Chaincase, O-Ring

5411497

$20.22

13

COVER, CHAINCASE

5631354

$114.99

14

SCREW

7512242

$2.39

15

Screw

7517979

$3.99

16

Washer, Spring

7571618

$6.39

17

SPROCKET, 39T

3222108

$59.99

18

CHAIN, 72P, 3/4W

3221110

$164.99

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5134085

$113.32

22

Screw

7515477

$34.99
