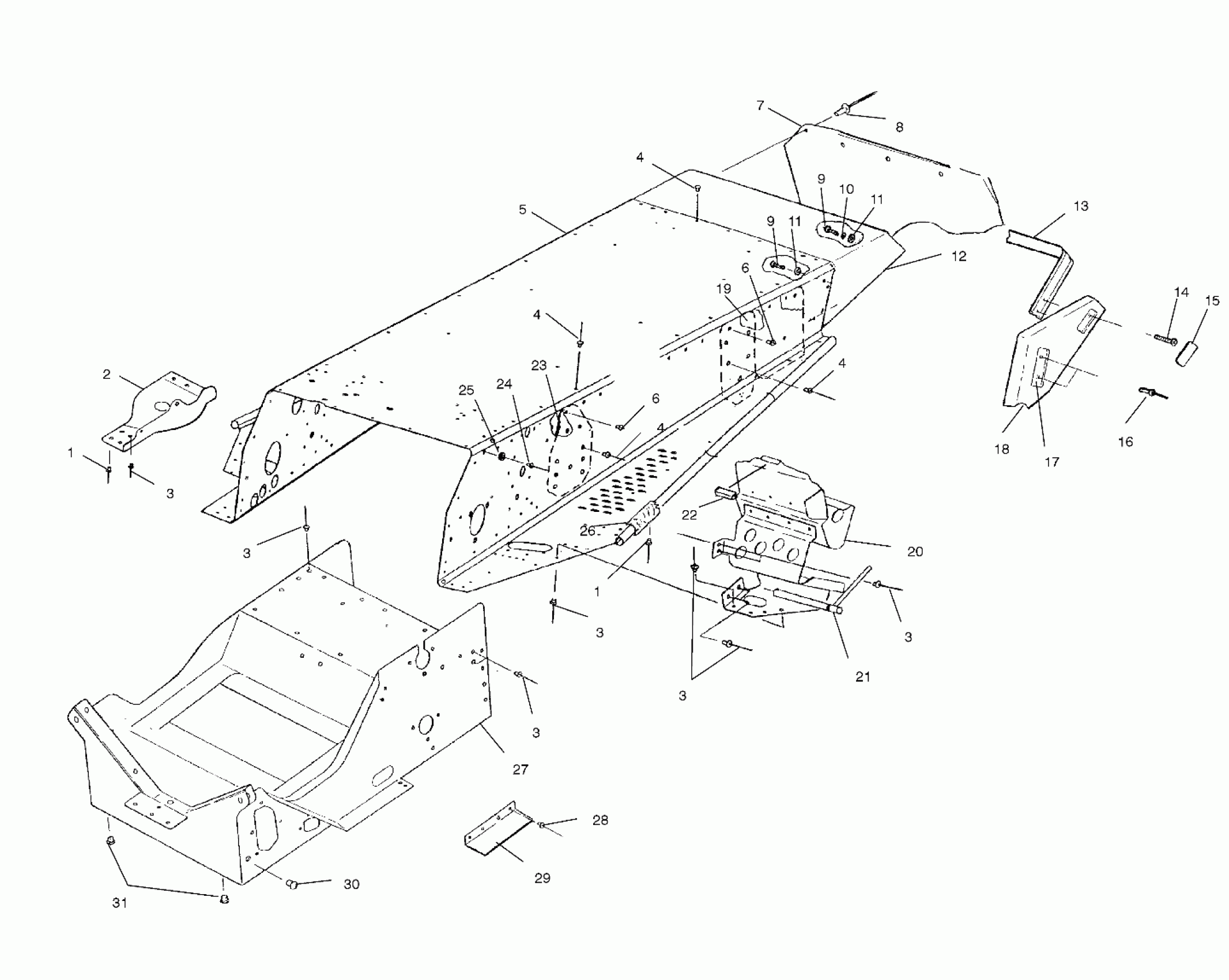

Polaris TRAIL RMK - S00SR5BS TUNNEL - S00SR5BS (4953985398a006) Diagram

#

Description
Price

1

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

1

RIVET,INTERLOCK(50) Substituted by 7661130

7661639

Unavailable

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

RIVET ,(50)

7661837

$1.49

4

RIVET ,(50)

7661837

$1.49

4

RIVET ,(50)

7661837

$1.49

5

TUNNEL ASM,F/C,RMK Substituted by 1013209 (Incl. 12,19,23)

1012688

Unavailable

6

RIVET ,(50)

7661836

$0.63

6

RIVET ,(50)

7661836

$0.63

7

FLAP, SNOW,SILVER Substituted by 5410394-1106

5410394

$121.02

8

POP RIVET(50)

7621418

$1.49

9

BOLT(10)

7512240

$3.99

9

BOLT(10)

7512240

$3.99

10

LOCK WASHER(10)

7552801

$1.59

11

WASHER(10)

7558301

$1.49

11

WASHER(10)

7558301

$1.49

12

PANEL,TUNNEL

1012580

Unavailable

13

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

14

SCREW(10)

7512084

$1.49

15

REFLECTOR ASM,RED

2670133

$5.75

16

RIVET,(50)

7621515

$3.99

17

SUPPORT,HAND-HOLD

5131546

$18.23

18

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

18

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

19

BRKT,LH,R.SUSP.

1012578-067

$82.39

19

BRKT,RH,R.SUSP.

1012579-067

$62.39

20

FOOTREST ASM,RH

1012684

$154.99

20

FOOTREST ASM,LH Substituted by 1013531

1012683

Unavailable

21

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

21

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

22

EXTRUSION,CLUTCHGUARD

5521238

$6.46

23

PAD,FRONT,SUSPENSION

5244287-067

Unavailable

24

RIVET-POP 1/8(.063-.125)-ST-Z

7621222

$1.49

25

SNAP-MALE(10)

7080227

Unavailable

26

GRIP,TUNNEL ROLL

5243112

Unavailable

27

BULKHEAD,BLK

1012689-067

Unavailable

28

RIVET(50)

7621452

$1.49

29

GUARD,ADAPTER GUIDE

5222857

$12.94

30

PLUG, HOLE(10)

7080416

$5.65

31

PLUG-HOLE

7080398

$4.84
