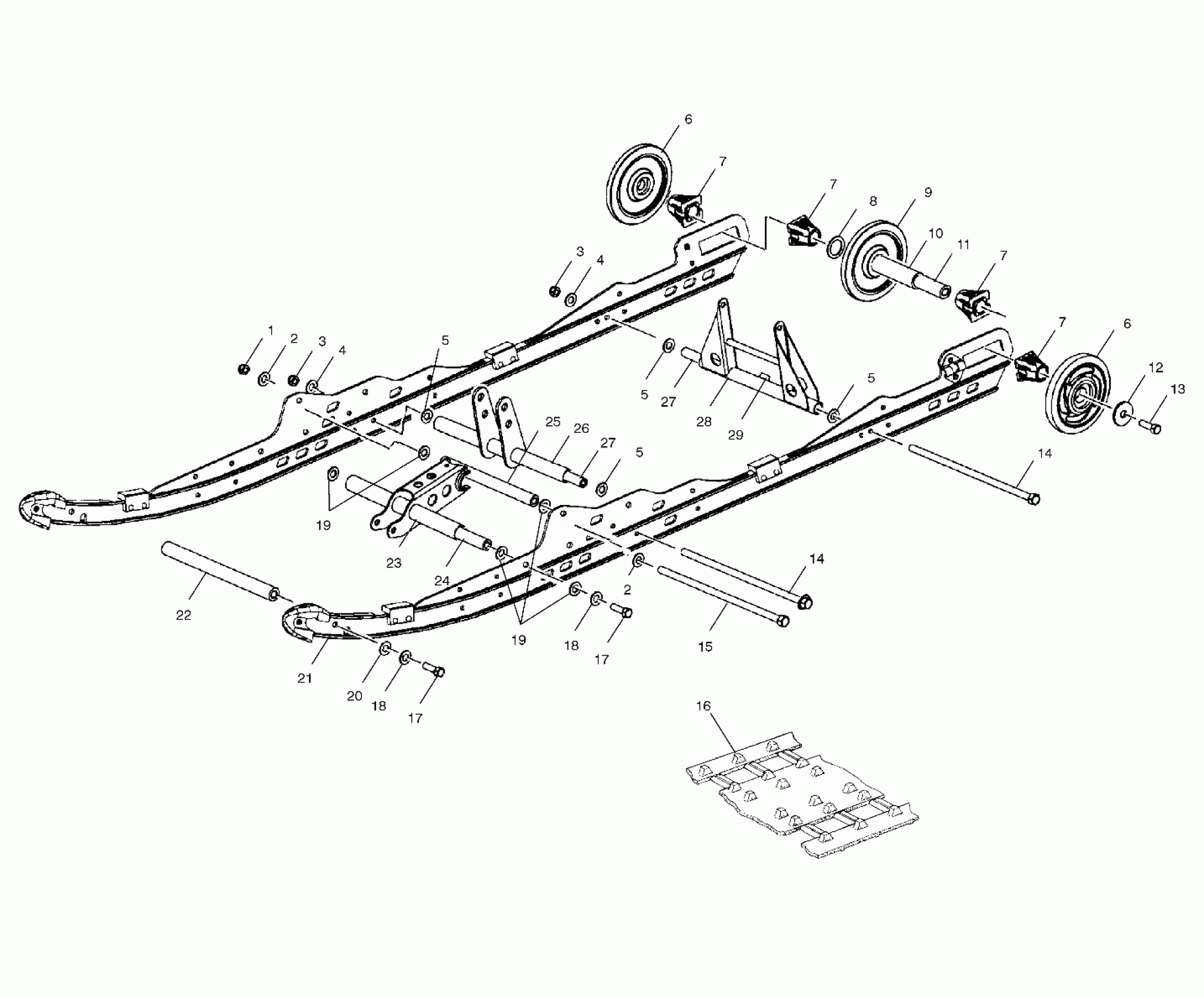

Polaris TRAIL RMK - S00SR5BS SUSPENSION - S00SR5BS (4953985398b007) Diagram

#

Description
Price

1

NUT,NYLOK

7547025

$2.63

2

WASHER(10)

7555806

$1.49

2

WASHER(10)

7555806

$1.49

3

NUT

7547064

Unavailable

3

NUT

7547064

Unavailable

4

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

4

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER(10)

7555958

$4.99

5

WASHER(10)

7555958

$4.99

5

WASHER(10)

7555958

$4.99

5

WASHER(10)

7555958

$4.99

6

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

6

WHEEL,IDLER,SCRL,M.BLUE

1594083-107

Unavailable

7

SPACER-IDLER

5432535

$11.99

7

SPACER-IDLER

5432535

$11.99

7

SPACER-IDLER

5432535

$11.99

7

SPACER-IDLER

5432535

$11.99

8

BUSHING(10)

7555918

$1.59

9

WHEEL ASM,PLAIN(6.38 O.D.)

1594087

$72.84

10

SPACER-IDLER, LONG

5333285

$11.99

11

SHAFT,IDLER

5020744

$59.99

12

WASHER(10) Substituted by 7556130

7571629

Unavailable

13

BOLT(10)

7515526

$1.19

14

Screw

7517207

Unavailable

14

Screw

7517207

Unavailable

15

Screw

7517353

Unavailable

16

TRACK,136X1.25,CAMO

5411436

Unavailable

17

SCREW,(10)

7517247

$3.19

17

SCREW,(10)

7517247

$3.19

18

WASHER(10)

7552603

$1.49

18

WASHER(10)

7552603

$1.49

19

WASHER(10)

7555797

$3.99

19

WASHER(10)

7555797

$3.99

20

WASHER(10)

7555923

$2.39

21

Slider, XL, Service, Basic

5521571

$36.41

22

Shaft

5020868

Unavailable

23

BRKT,SHOCK,FTS,(XC),BLK Substituted by 1541520-067

1541282-067

Unavailable

24

Shaft

5020866

$28.79

25

Shaft

5333511

Unavailable

26

ARM,SHOCK PIVOT,(XL),BLK. Substituted by 1541484-067

1541283-067

Unavailable

27

Tube

5333477

Unavailable

27

Tube

5333477

Unavailable

28

ARM,RR PIVOT ARM,XL,BLK Substituted by 1541564-067

1541103-067

$209.99

29

ZERK,FITTING,THREADED(10)

7080433

$1.49
