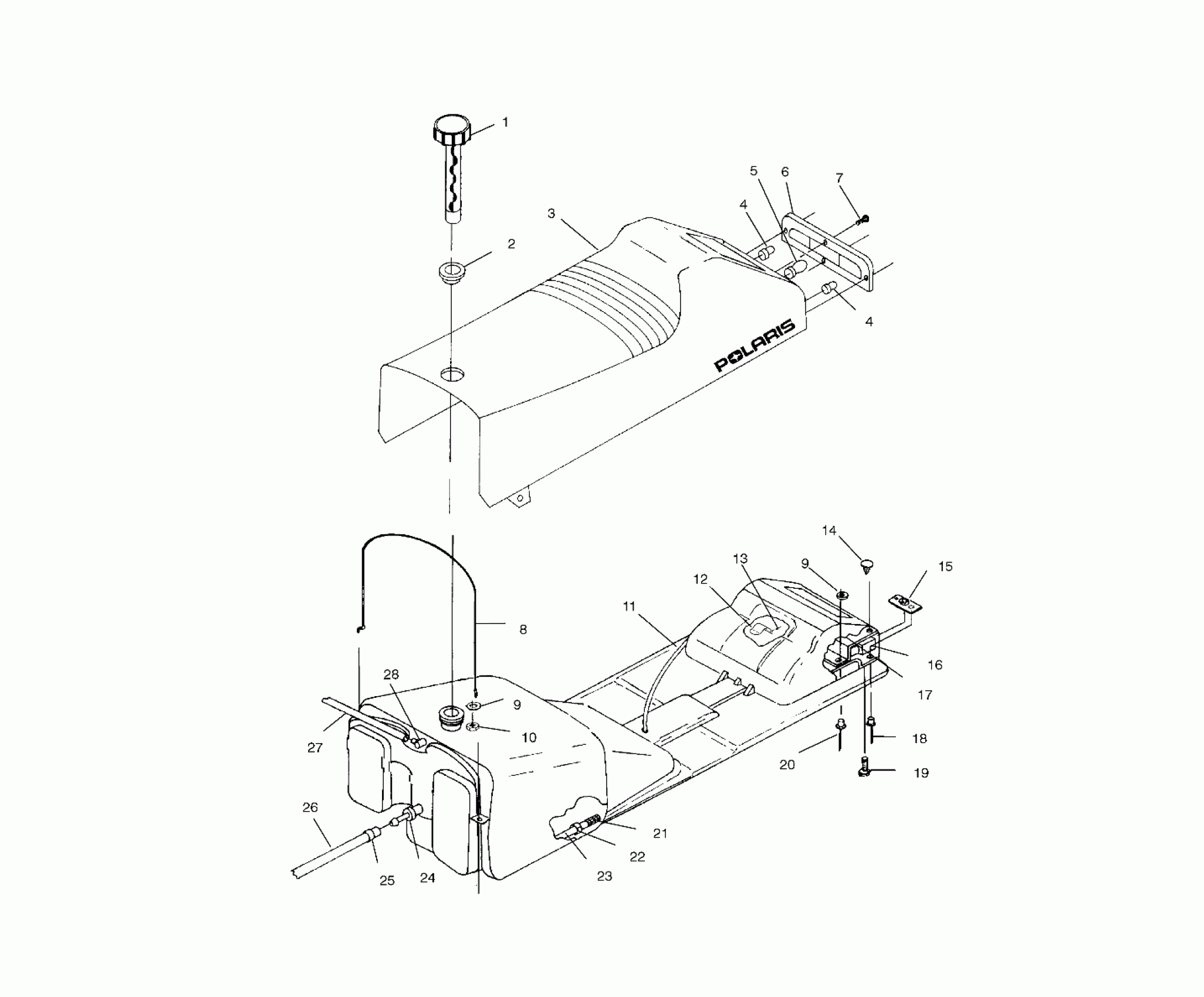

Polaris TRAIL RMK - S00SR5BS SEAT and GAS TANK - S00SR5BS (4953985398a005) Diagram

#

Description
Price

1

GASKET, GAS CAP

5810513

$8.89

1

CAP,GAS,W/GAUGE

2511248

$44.51

2

GROMMET,FUELTANK

5410842

Unavailable

3

SEAT CUSION ASM. (Incl. 2-18,20-24,28)

2682507

Unavailable

3

COVER,SEAT,ASM.

2682508

Unavailable

4

BULB,TAILLIGHT(10)

4030024

$4.84

4

BULB,TAILLIGHT(10)

4030024

$4.84

5

Bulb, Brakelight

4030045

Unavailable

6

LENS,TAILLIGHT

5430423

Unavailable

7

SCREW(10)

7511840

Unavailable

8

CABLE,TANK,RETENTION

7080559

Unavailable

9

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

10

NUT(10)

7541925

$1.49

11

HARNESS,TAILLIGHT

2460398

Unavailable

12

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

13

RIVET(50)

7621472

$1.49

14

CLIP,DART,(10)

7670097

Unavailable

15

NUT,RETAINER-WELD.(10)

7542147

$17.59

16

HOUSING-TAILLIGHT

5433341

Unavailable

17

COVER,T/L PROTECTOR

5431436

$21.43

18

RIVET(50)

7621301

$3.99

19

SCREW(10)

7512242

$2.39

20

RIVET(50)

7621464

$3.99

21

FUEL PICKUP,W/FILTER Substituted by 7052301

7052243

Unavailable

22

RING, COMPRESSION(10)

7080402

$1.60

23

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

24

FITTING,OUT,90 DEG,,DOUBLE

7052143

Unavailable

25

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

26

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

27

FUELLINE,3MMX7MM

8450061-600

Unavailable

28

FITTING,90 DEG,1/8,(10)

7052095

$4.79
