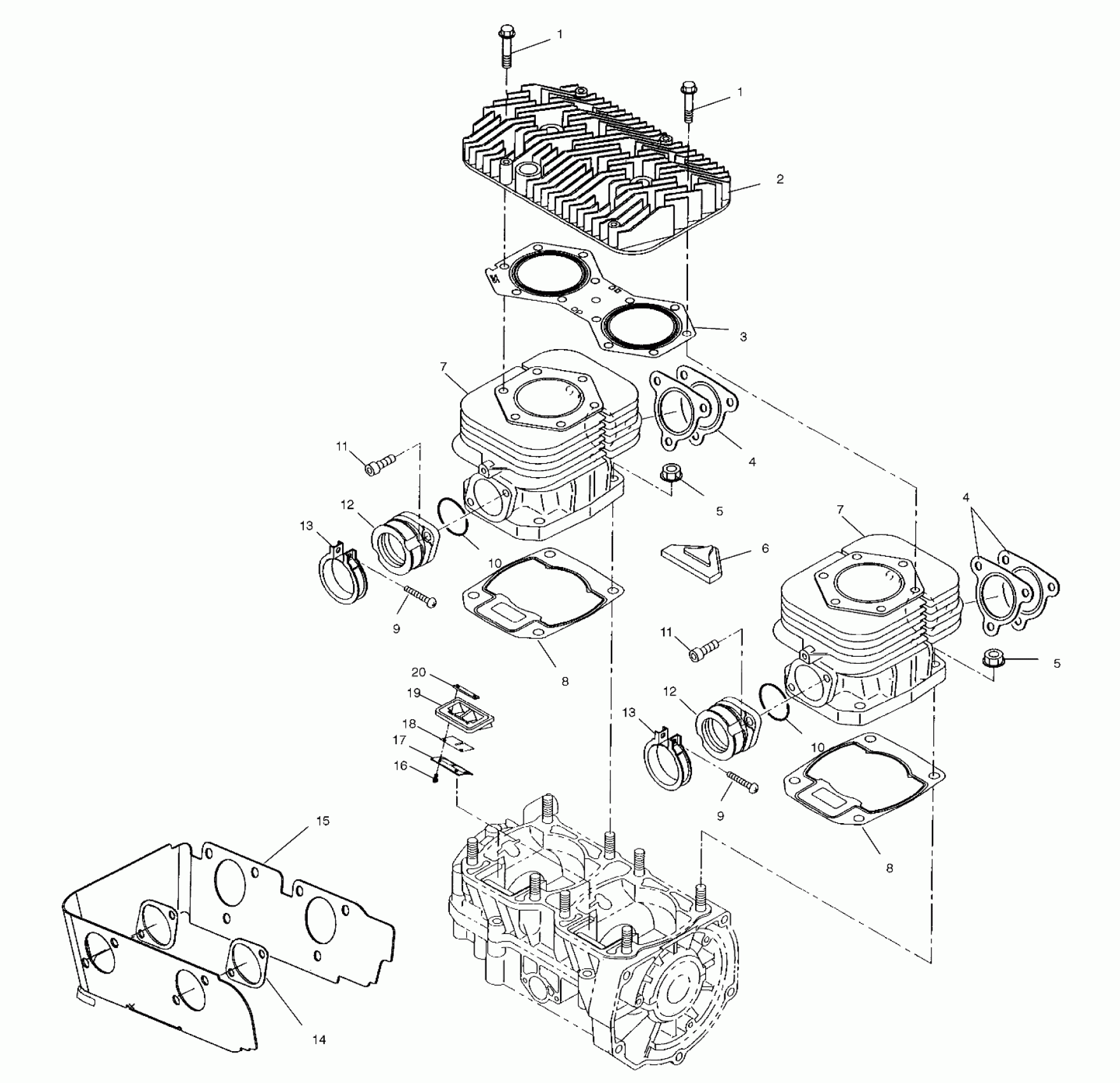

Polaris TRAIL RMK - S00SR5BS CYLINDER - S00SR5BS (4953985398c005) Diagram

#

Description
Price

1

BOLT, FLANGE

3084271

Unavailable

1

BOLT, FLANGE

3084271

Unavailable

2

HEAD,CYLINDER

3085703

Unavailable

3

GASKET,HEAD

3085704

Unavailable

4

GASKET,EXHAUST

3085714

$29.99

4

GASKET,EXHAUST

3085714

$29.99

5

NUT-FLANGE(10)

3082911

$1.99

5

NUT-FLANGE(10)

3082911

$1.99

6

COVER,CYL.BAFFLE

3085692

$24.27

7

Cylinder Unit

3085936

$603.17

7

Cylinder Unit

3085936

$603.17

8

GASKET,CYLINDER

3085666

Unavailable

8

GASKET,CYLINDER

3085666

Unavailable

9

SCREW,(10)

3081497

$2.39

9

SCREW,(10)

3081497

$2.39

10

O-RING

3085619

$20.22

10

O-RING

3085619

$20.22

11

Bolt, Allen

3081330

$3.99

11

Bolt, Allen

3081330

$3.99

12

ADAPTER (Incl. 10)

3085670

Unavailable

12

ADAPTER (Incl. 10)

3085670

Unavailable

13

BAND ASM. (Incl. 9)

3083166

$19.84

13

BAND ASM. (Incl. 9)

3083166

$19.84

14

GASKET-INTAKE,PSA1S

5411614

Unavailable

15

BAFFLE-CYLINDER

5243221

$18.23

16

SCREW & WASHER ASM.

3085717

$4.75

17

STOPPER

3085716

$3.51

18

VALVE, REED

3085715

$8.89

19

VALVE,REED Substituted by 3086386

3085908

Unavailable

20

PLATE

3085718

Unavailable
