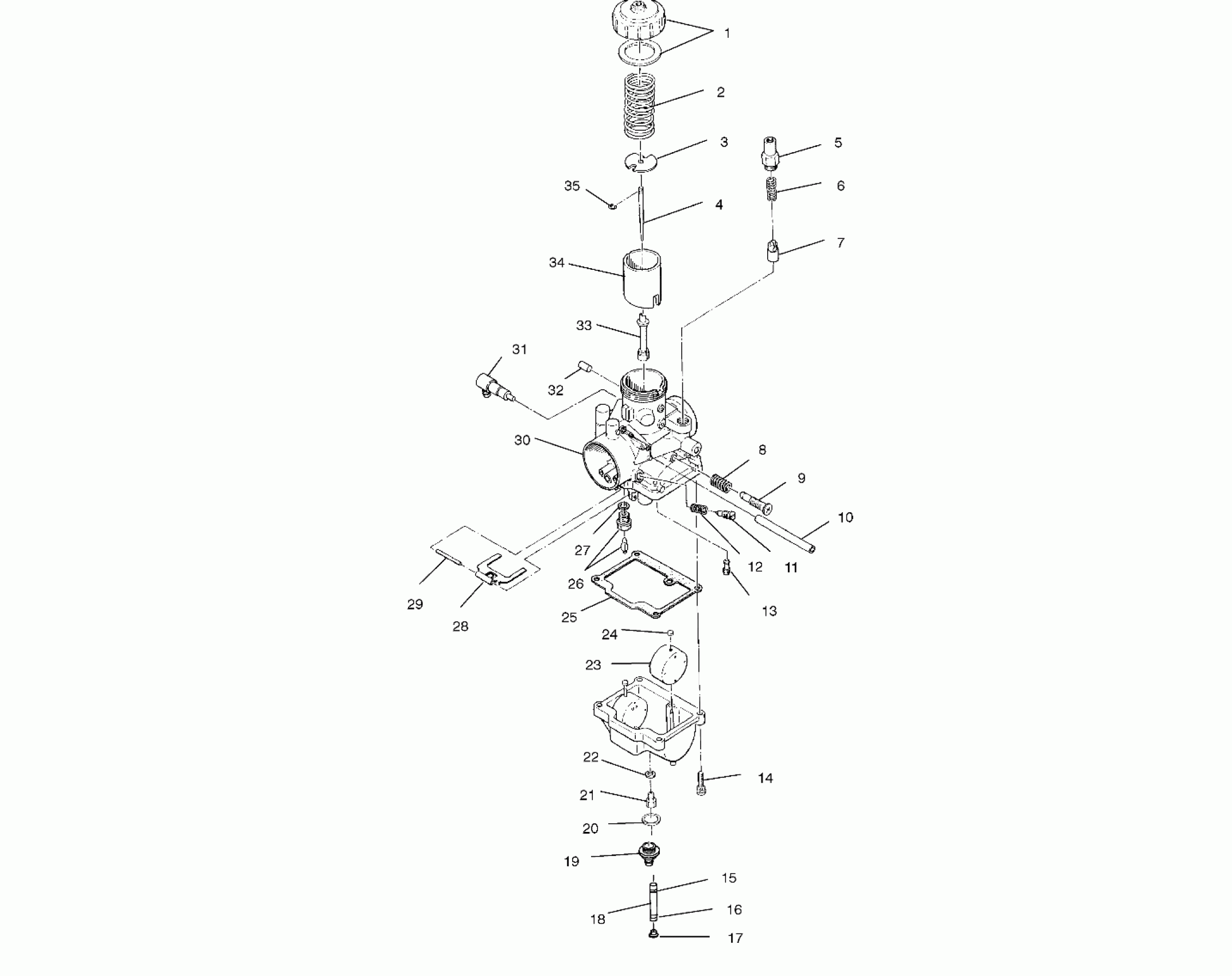

Polaris TRAIL RMK - S00SR5BS CARBURETOR - S00SR5BS (4953985398c008) Diagram

#

Description
Price

1

TOP ASM,MIX.CHAMBER Substituted by 3130184

3130877

Unavailable

2

SPRING,THROTTLE Substituted by 3130439

3130889

Unavailable

3

PLATE,THROTTLE Substituted by 3130027

3130879

Unavailable

4

JET,NEEDLE(6DEH11) (6DEH11-3)

3131221

$18.23

5

HOLDER,GUIDE

3130199

$28.32

6

SPRING,PLUNGER Substituted by 3130006

3130884

Unavailable

7

PLUNGER ASM, STARTER

3130328

$32.37

8

SPRING,THROTTLE ADJ.

3130010

$8.89

9

SCREW,THROT.STOP

3130437

Unavailable

10

Hose

3085932

Unavailable

11

SCREW,AIR

3130011

$19.99

12

SPRING,AIR ADJUST

3130012

$8.89

13

JET,PILOT,#35(10) (#35)

3130066

$8.89

14

SCREW & WASHER(10)

3130025

$3.19

15

CLAMP,SPRING,(10)

7080534

$1.59

16

CLAMP,HOSE(10)

7080544

Unavailable

17

PLUG,TRAP

5431893

$12.94

18

FUEL LINE, 5 FT.

8450045-153

Unavailable

19

FITTING,SEDIMENT Substituted by 3130573

5020476

$10.63

20

O RING

3130239

Unavailable

21

JET,MAIN,HX.HD#270(10) (#270)

3130130

$7.27

22

WASHER (10)

3130014

$1.59

23

FLOAT ASM.

3130430

$43.56

24

CAP,(10)

3130237

$4.03

25

PACKING,FLOAT CHAMBER

3130020

$16.17

26

VALVE-NEEDLE (1.5)

3131146

$48.56

27

PACKING(10)

3130017

$4.03

28

ARM,FLOAT

3130018

$24.27

29

PIN, FLOAT

3130361

$8.89

30

CARBURETOR (PTO Side)(Incl. 1-14,19-35)

3130955

$385.70

30

CARBURETOR (MAG Side)(Incl. 1-14,19-35)

3130956

$376.17

31

VALVE, CHECK Substituted by 3086785

3083337

Unavailable

32

CAP

3130479

$14.56

33

JET,NEEDLE(Q-0)480 (Q-0) 480

3130964

$54.99

34

VALVE,THROTTLE,(3.0) (3.0)

3130372

$52.60

35

E-RING,(10)

3130508

$6.46
