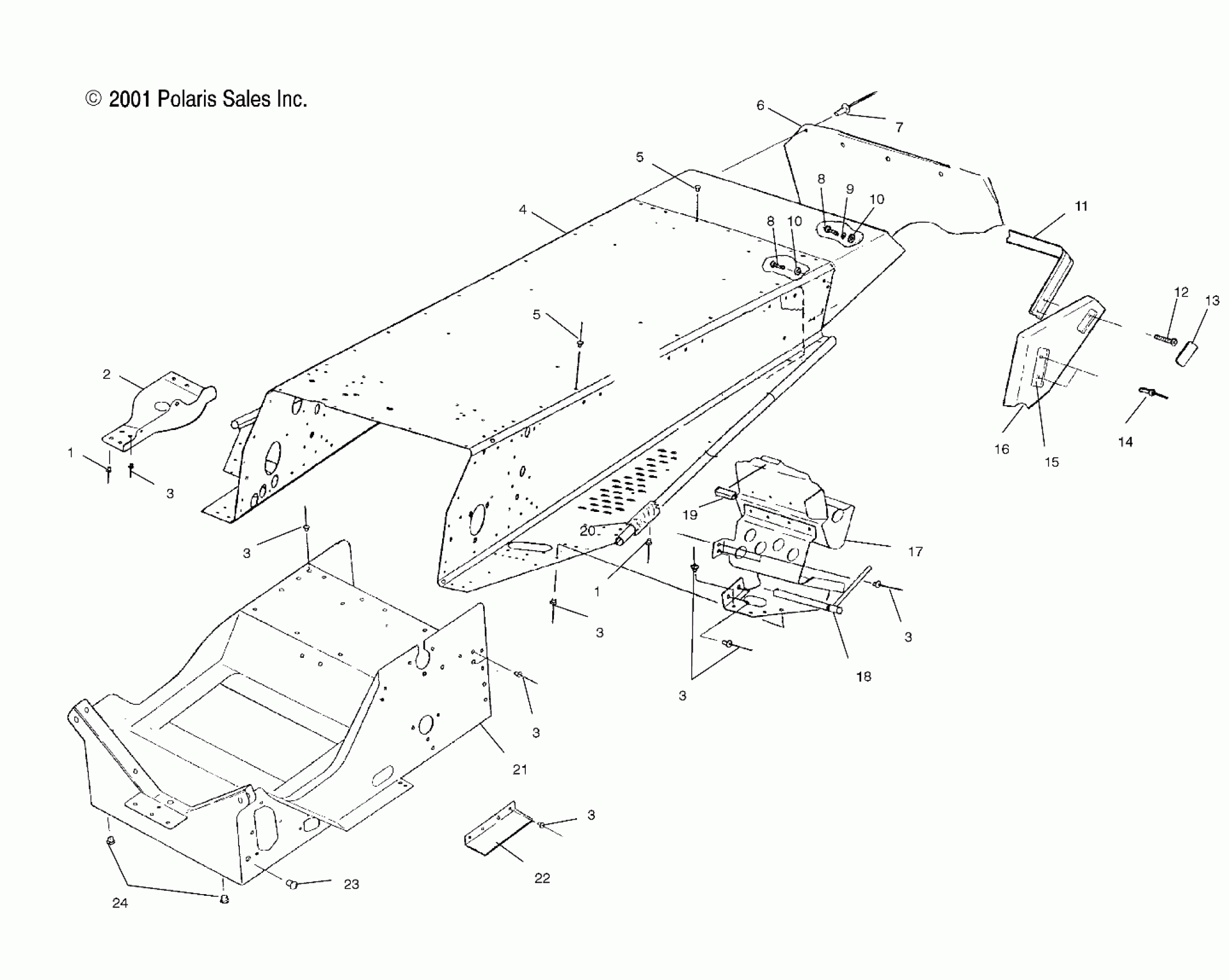

Polaris TRAIL RMK 136 - S02SR5BS TUNNEL - S02SR5BS (4969366936A003) Diagram

#

Description
Price

1

RIVET-3/16-.214-.420

7661130

$1.49

1

RIVET-3/16-.214-.420

7661130

$1.49

2

GUARD-CHAINCASE SUMP,TUNNEL

5243419

$20.63

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

3

RIVET-3/16-.090-.290

7661637

$1.49

4

ASM-HOUSING,F/C RMK SPIERCE

1013592

Unavailable

5

RIVET ,(50)

7661837

$1.49

5

RIVET ,(50)

7661837

$1.49

6

FLAP-SNOW,MOLDED,BLK W/SILVER

5410394-1106

$121.02

7

POP RIVET(50)

7621418

$1.49

8

BOLT(10)

7512240

$3.99

8

BOLT(10)

7512240

$3.99

9

LOCK WASHER(10)

7552801

$1.59

10

WASHER(10)

7558301

$1.49

10

WASHER(10)

7558301

$1.49

11

BUMPER,REAR,BLACK Substituted by 2670168

2670169

Unavailable

12

SCREW(10)

7512084

$1.49

13

REFLECTOR ASM,RED

2670133

$5.75

14

RIVET,(50)

7621515

$3.99

15

SUPPORT,HAND-HOLD

5131546

$18.23

16

COVER,LH,BUMPER,W/HANDLE

5432562

$28.15

16

COVER,RH,BUMPER,W/HANDLE

5432563

$28.15

17

FOOTREST ASM,RH

1012684

$154.99

17

FOOTREST ASM,LH Substituted by 1013531

1012683

Unavailable

18

SUPPORT,TUNNEL,LH,BLK.

1012812-067

$32.37

18

SUPPORT,TUNNEL,RH,BLK

1012813-067

Unavailable

19

EXTRUSION,CLUTCHGUARD

5521238

$6.46

20

GRIP,TUNNEL ROLL

5243112

Unavailable

21

WELD-BULKHEAD

1012689

$649.99

22

GUARD,ADAPTER GUIDE

5222857

$12.94

23

PLUG, HOLE(10)

7080416

$5.65

24

PLUG-HOLE

7080398

$4.84
