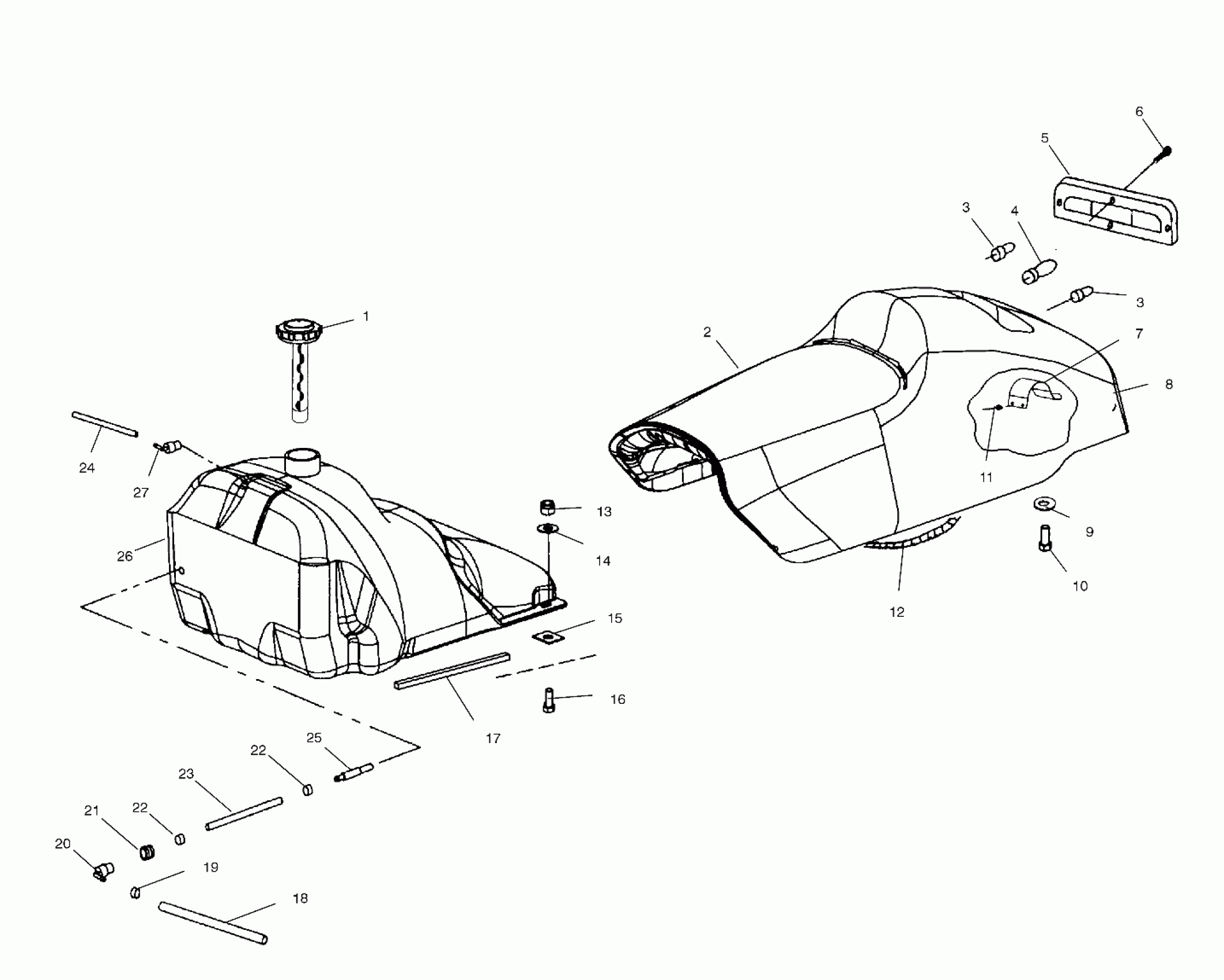

Polaris TRAIL RMK 136 - S02SR5BS SEAT AND GAS TANK - S02SR5BS (4969366936A004) Diagram

#

Description
Price

1

CAP,FUEL,12.5,W/GAUGE

1240066

Unavailable

2

ASM-COVER,GEN II,RMK,STD

2682608

Unavailable

2

ASM-SEAT,GEN II,RMK,STD (Incl. 2-8,12)

2682598

$566.99

3

BULB,TAILLIGHT(10)

4030024

$4.84

3

BULB,TAILLIGHT(10)

4030024

$4.84

4

Bulb, Brakelight

4030045

Unavailable

5

LENS,TAILLIGHT

5430423

Unavailable

6

SCREW(10)

7511840

Unavailable

7

RETAINER-CLIP,TOOL POUCH

5243185

$10.63

8

HOUSING-TAILLIGHT

5433341

Unavailable

9

WASHER(10)

7558301

$1.49

10

BOLT(10)

7512232

$1.49

11

RIVET(50)

7621472

$1.49

12

Harness, Taillight

2460399

Unavailable

13

NUT-LOCK(10)

7542122

$1.49

14

WASHER(10)

7555960

$3.99

15

SPEED NUT(10)

7670021

$6.99

16

BOLT(10)

7512193

$2.39

17

PAD-GAS TANK

5810063

$4.95

18

TUBING-ETHER ERETHNE,600CM,SVC Substituted by 8350018-160

8350018-600

Unavailable

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

FITTING,1/4" 90� DEX

7052259

Unavailable

21

GROMMET-TANK FITTING(10)

7052028

$6.39

22

RING, COMPRESSION(10)

7080402

$1.60

22

RING, COMPRESSION(10)

7080402

$1.60

23

FUEL LINE-ESTER Substituted by 8350019-160

8350019-600

Unavailable

24

FUELLINE,3MMX7MM

8450061-600

Unavailable

25

PICK-UP-FUEL,W/FILTER,105MICRN

7052301

$12.94

26

FUEL TANK,EDGE (Incl. 25-27)

2520150

$219.99

27

FITTING,90 DEG,1/8,(10)

7052095

$4.79
