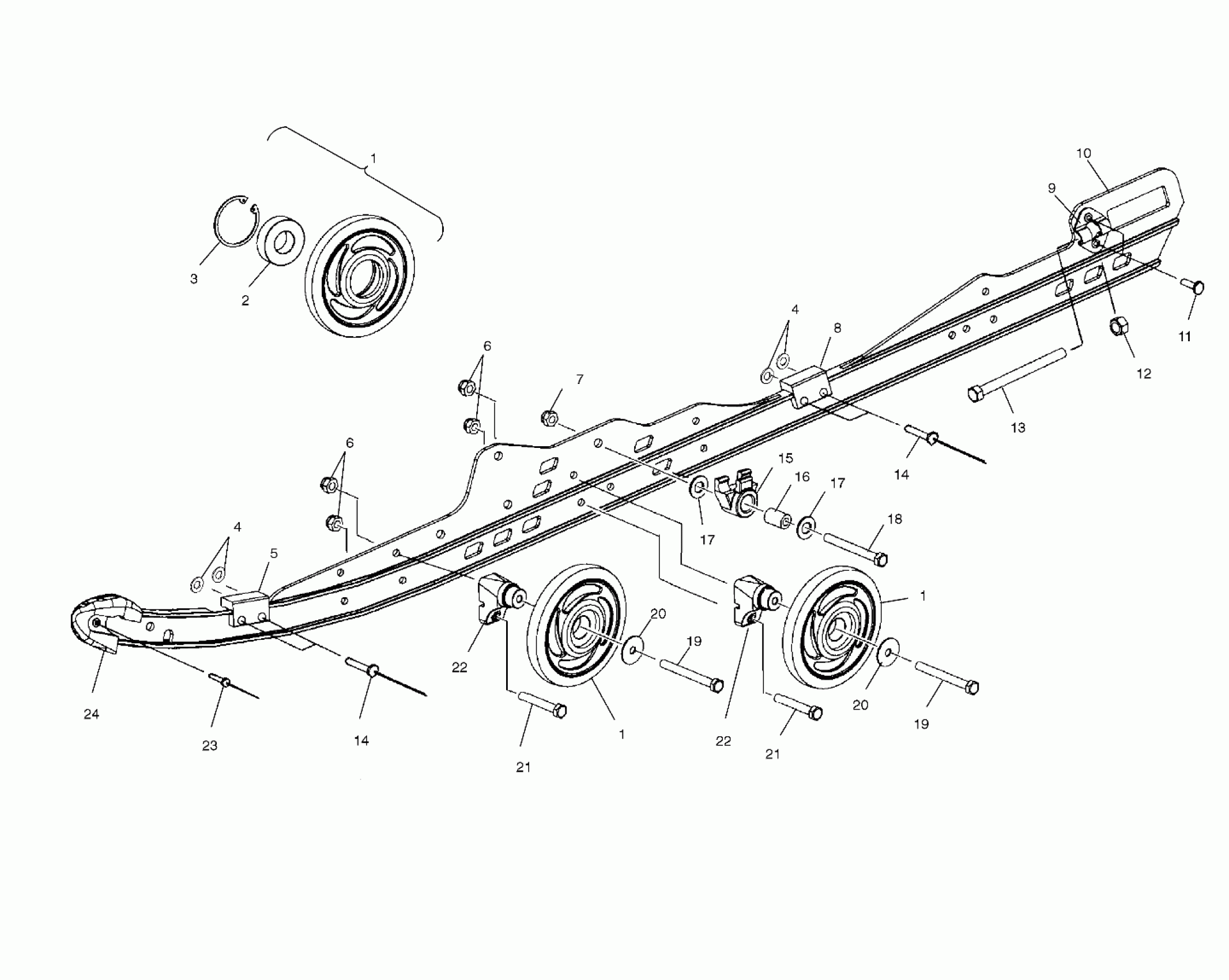

Polaris TRAIL RMK 136 - S02SR5BS RAIL MOUNTING SUSPENSION - S02SR5BS (4969366936B006) Diagram

#

Description
Price

1

WHEEL,ADM,INDY RED (Incl. 2-3)

1590275-293

$48.56

1

WHEEL,ADM,INDY RED (Incl. 2-3)

1590275-293

$48.56

1

WHEEL,ADM,INDY RED (Incl. 2-3)

1590275-293

$48.56

2

BEARING (1 per Wheel)

3514303

$11.99

3

RET.RING-TRUARC (1 per Wheel)

7718407

$4.79

4

NUT, PUSH-ON(10)

7670068

$2.39

4

NUT, PUSH-ON(10)

7670068

$2.39

5

BUMPER,JOUNCE,XL

5811282

Unavailable

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

NUT-5/16-18 NYLOK-Y

7542324

$1.49

7

NUT-LOCK(10)

7542439

$1.49

8

BUMPER,JOUNCE REAR

5521498

$8.89

8

LINER-BUMPER

5432946

$9.70

9

BLOCK-IDLER BOLT ADJ.

5130530

$32.37

10

ASM-RAIL,XL 136,LH (Incl. 4,5,9,10,11,14,23,24)

1541554

$329.99

10

ASM-RAIL,XL 136,RH (Incl. 4,5,9,10,11,14,23,24)

1541555

Unavailable

11

RIVET,(50)

7621501

$2.39

12

NUT(10)

7542404

$1.59

13

SCREW,(10)

7517227

$7.19

14

PIN-HOOD HINGE(10)

7661621

$3.99

14

PIN-HOOD HINGE(10)

7661621

$3.99

15

BLOCK,SPRING SLIDER

5431924

$10.65

16

Bushing

5010332

$11.99

17

WASHER(10)

7555893

$1.49

17

WASHER(10)

7555893

$1.49

18

BOLT Substituted by 7515491

7515433

$1.59

19

BOLT(10)

7515346

$5.59

19

BOLT(10)

7515346

$5.59

20

WASHER-SPRING,CON 5/16X.090-Y

7556179

$7.99

20

WASHER-SPRING,CON 5/16X.090-Y

7556179

$7.99

21

BOLT(10)

7515317

$4.79

21

BOLT(10)

7515317

$4.79

22

BLOCK-WHEEL MOUNT,LWT

5631065

$28.32

22

BLOCK-WHEEL MOUNT,LWT

5631065

$28.32

23

RIVET(50)

7621435

$1.49

24

CAP,RAIL TIP Substituted by 5434374

5433735

$20.22
